AS80SR11A
Voice Siren
Installation Instructions
General Introduction

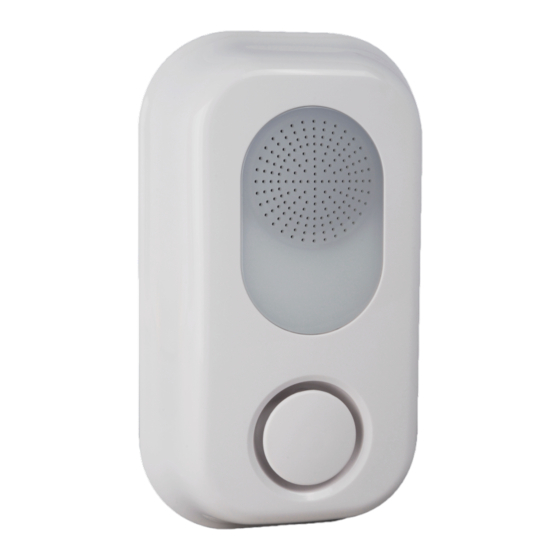

The Voice Siren is a two-way wireless alarm device which functions not only
as a siren, but also a strobe light with voice indicator functions.
Includes the following functions:
* Tamperproof protection
* Green and red flashing strobe light
* Visual and audible alarm indications
* 6 indicating beep sounds for identification
* EEPROM for non-volatile memory facility
* LED for identification, visual command confirmation and battery status
Product Layout
Figure 1 Front View
Figure 3 Back View
Figure 2 Under View
Figure 4 Inside View
Keys
A. Speaker
B. Voice Speaker
C. Backplate screws
D. Backplate
Functions
A. Siren Speaker
B. Voice Speaker
E.
Tamper Jumper Link
F.
Learning Key
G.
Micro USB
H.
DC Jack
Binding
1. Loosen and remove the locking screw from the bottom edge of the unit
counter clockwise.
2. Slide the backplate out of the unit.
3. Prepare four 1.5V alkaline batteries. Do not insert them into the unit yet.
4. Log into the Homesys account from a web browser.
1
E.
Tamper Switch
F.
Learning Key
G.
Micro USB (Factory use only)
H.
DC Jack
Siren Warning 110 dB
Voice Indicator 90 dB
A full alarm condition will be enabled when the device is
removed from the wall.
Learn and clear ID codes.
Update voice messages through the USB cable. (Factory
use only)
Socket for connecting DC adapter
Advertisement
Related Manuals for ELRO AS80SR11A
Summary of Contents for ELRO AS80SR11A
- Page 1 AS80SR11A Voice Siren Installation Instructions General Introduction Keys A. Speaker Tamper Switch The Voice Siren is a two-way wireless alarm device which functions not only B. Voice Speaker Learning Key as a siren, but also a strobe light with voice indicator functions.
- Page 2 8. Insert the batteries with correct polarity at this point. 5. Select “System”, then “Add a Device”, 6. Select “Voice Siren”. 9. The screen below will appear in 10 seconds if the process is successful. 7. The following screen will appear. This means the gateway is entering binding mode.
- Page 3 If there is no response please check the “Troubleshooting”. 1. Repeat steps 6 to 8 of the Binding with ELRO Smart Home Alarm section. 2. Press and hold the learning key “F” (as shown in Figure 4) for more than 3 seconds until the green strobe LED turns off, then quickly release the learning key.
- Page 4 Reset to factory default: To reset AS80SR11A back to factory default state: 1. Insert the batteries into the unit 2. Press and hold the learning key “F” (as shown in Figure 5) for more than 3 seconds until the green strobe LED turns off, then release the learning key.
