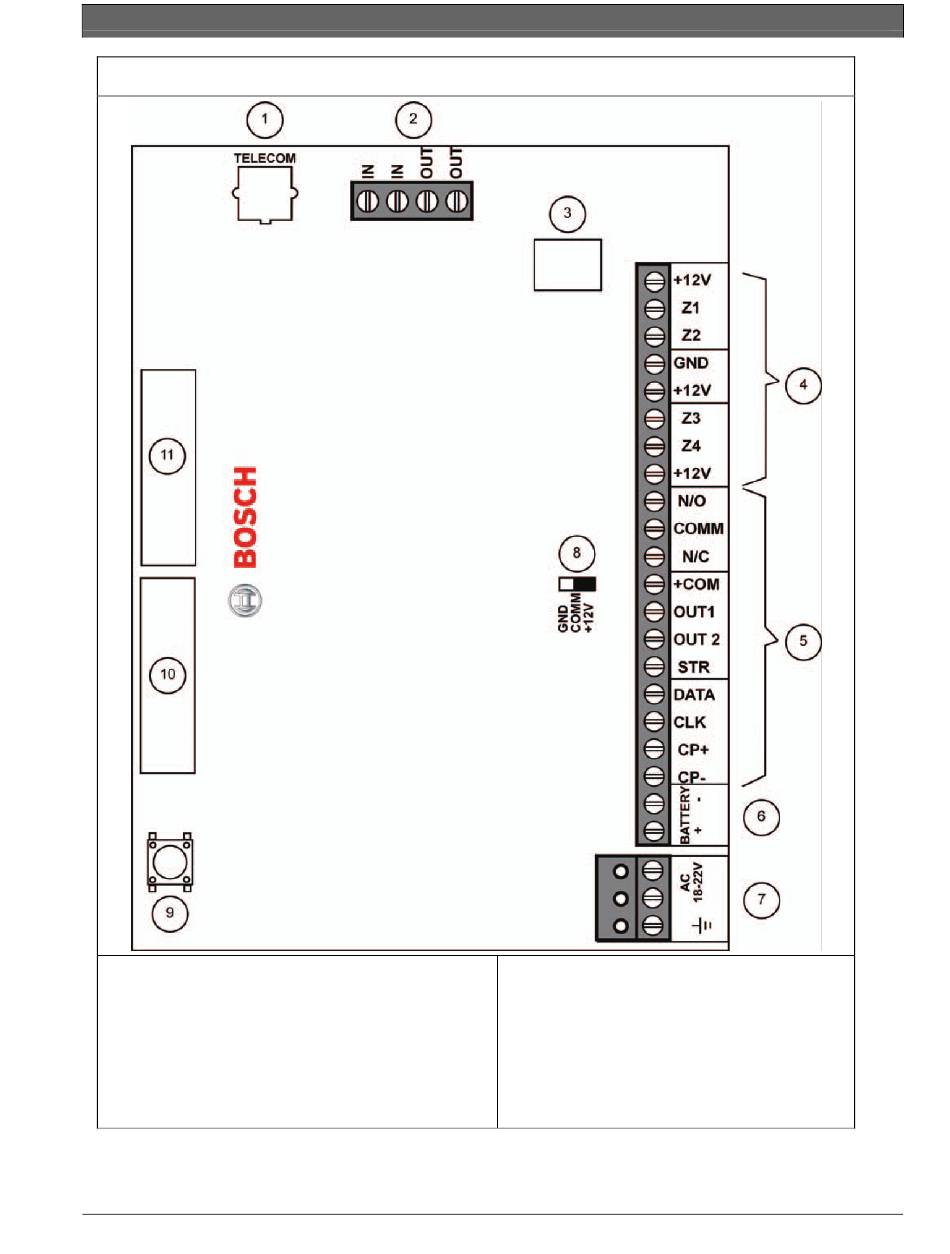

Figure 7: ICP-CC404 Component Overlay
1 – Socket for telecom lead connect
2 – Termination for phone line
OUT – internal phone line
IN – Telecom line (street)
3 – Receiver interface connection
4 – Zone termination strip
5 – Output termination strip
Bosch Security Systems, Inc. | 10/08 | F01U089402-01
ICP-CC404 | Quick Reference Guide | 6.0
6 –
Battery input
7 –
Plug pack input (Bosch TF008)
8 –
Relay contact select
9 –
Default switch
10 – Programming key
11 – Auxiliary Module: direct link cable
