Vallox TSK Multi 50 MC Operating & Maintainence Instructions

© Vallox
1.09.399B EN
Updatet
26.1.2015
Valid from:
26.1.2015

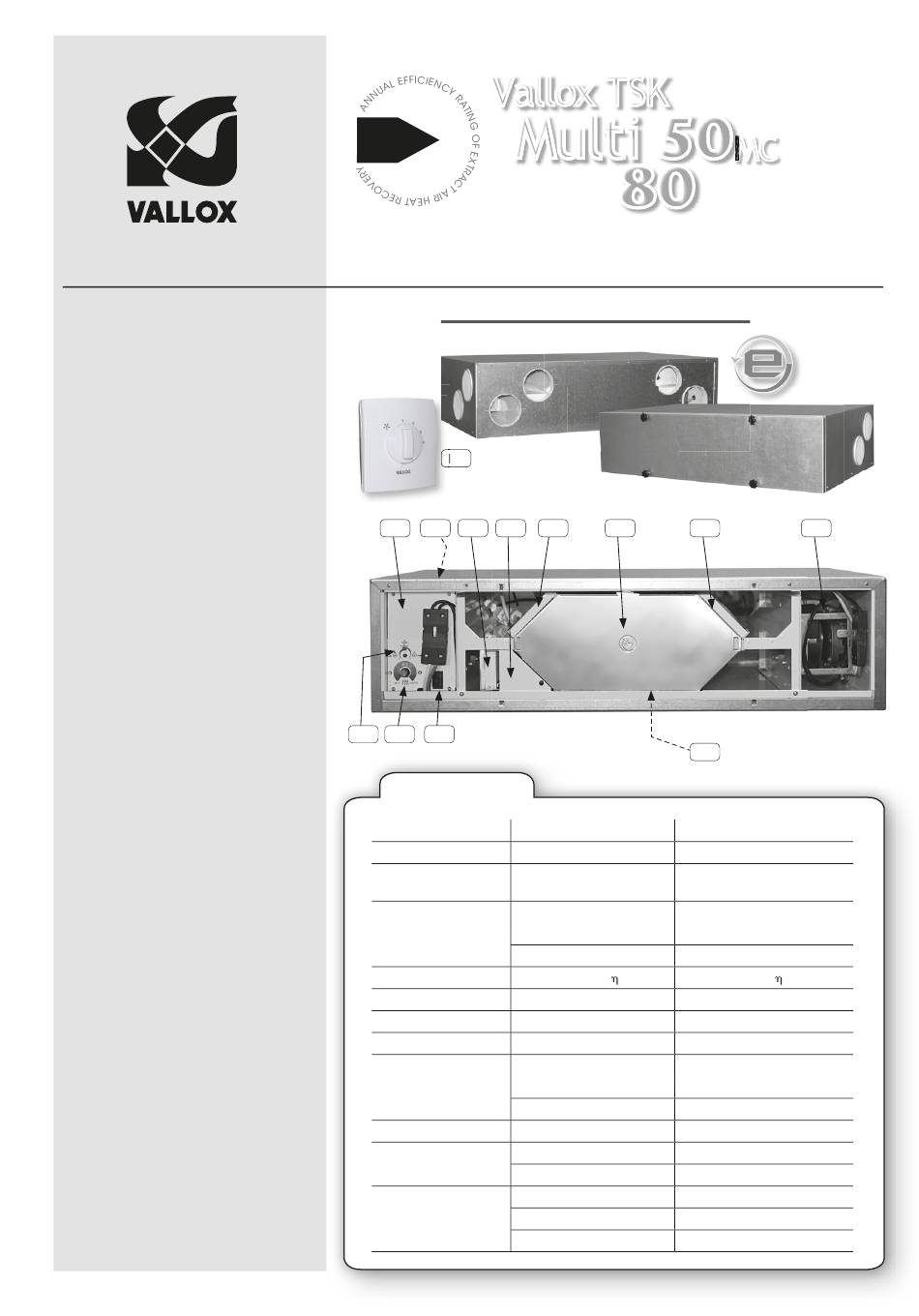

1 Supply air fan
2 Extract air fan
3 Post-heating radiator, electric,
900 W (behind supply air heater)
4 Bypass duct heater, electric,
900 W (only TSK Multi 80 MC,
behind HR cell)
5 Heat recovery cell
6 Outdoor air fi lter F7
7 Outdoor air fi lter G4
8 Extract air fi lter G4
9 Automatic summer/winter damper
10 Safety switch
11 Adjustment of relationship between
supply and extract air
12 Adjustment of supply air
temperature and
summer/winter function
13 Speed selector switch (1-4)
(option)

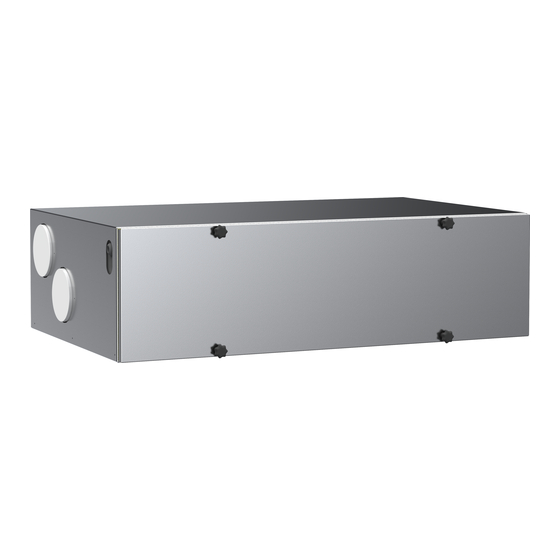

Vallox TSK
Multi 50
A+
Low-energy ventilation unit
with heat recovery
Operating, maintenance and technical instructions Operating, maintenance and technical instructions
13 13
1 3 6 9
11 12 10
TECHNICAL DATA
VALLOX TSK MULTI 50 MC
Electrical connection 230 V, 50 Hz, = 4.5 A
Degree of protection IP 34
provided by enclosures
Integrated direct-current fan
Extract air 0.043 kW 0.32 A 57 dm
Supply air 0.043 kW 0.32 A 49 dm
Heat recovery Cross-counter fl ow cell, > 80%
Heat recovery bypass Automatic
Electric post-heating unit 900 W, 3.9 A
Bypass duct heater -
Filters
Supply air G4 + F7
Extract air G4
Weight 45.0 kg
Ventilation power adjustment SC controller, 0-10 VDC
Remote monitoring control 0-10 VDC
Options SC controller
SlimLine PTXP MC cooker hood
SlimLine PTXPA MC cooker hood
80
8 5 7
4
VALLOX TSK MULTI 80 MC
230 V, 50 Hz, = 8.8 A
IP 34
/s 100 Pa 0.071 kW 0.5 A 93 dm
3
/s 100 Pa 0.071 kW 0.5 A 76 dm
3
Cross-counter fl ow cell, > 80%
Motorised damper
max 900 W, 3.9 A
900 W, 3.9 A
G4 + F7
G4
58.5 kg
SC controller, 0-10 VDC
Remote monitoring control 0-10 VDC
SC controller
SlimLine PTXP MC cooker hood
SlimLine PTXPA MC cooker hood
Models
TSK Multi 50 MC 3603
TSK Multi 80 MC 3602
MC MC MC MC
2
/s 100 Pa
3
/s 100 Pa
3
