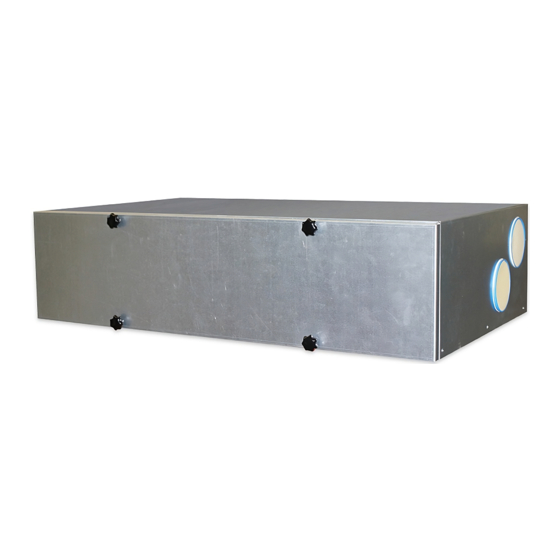

Low-energy ventilation unit with heat recovery

Advertisement

Quick Links

© Vallox
1.09.609 E
Valid from
11.4.2014

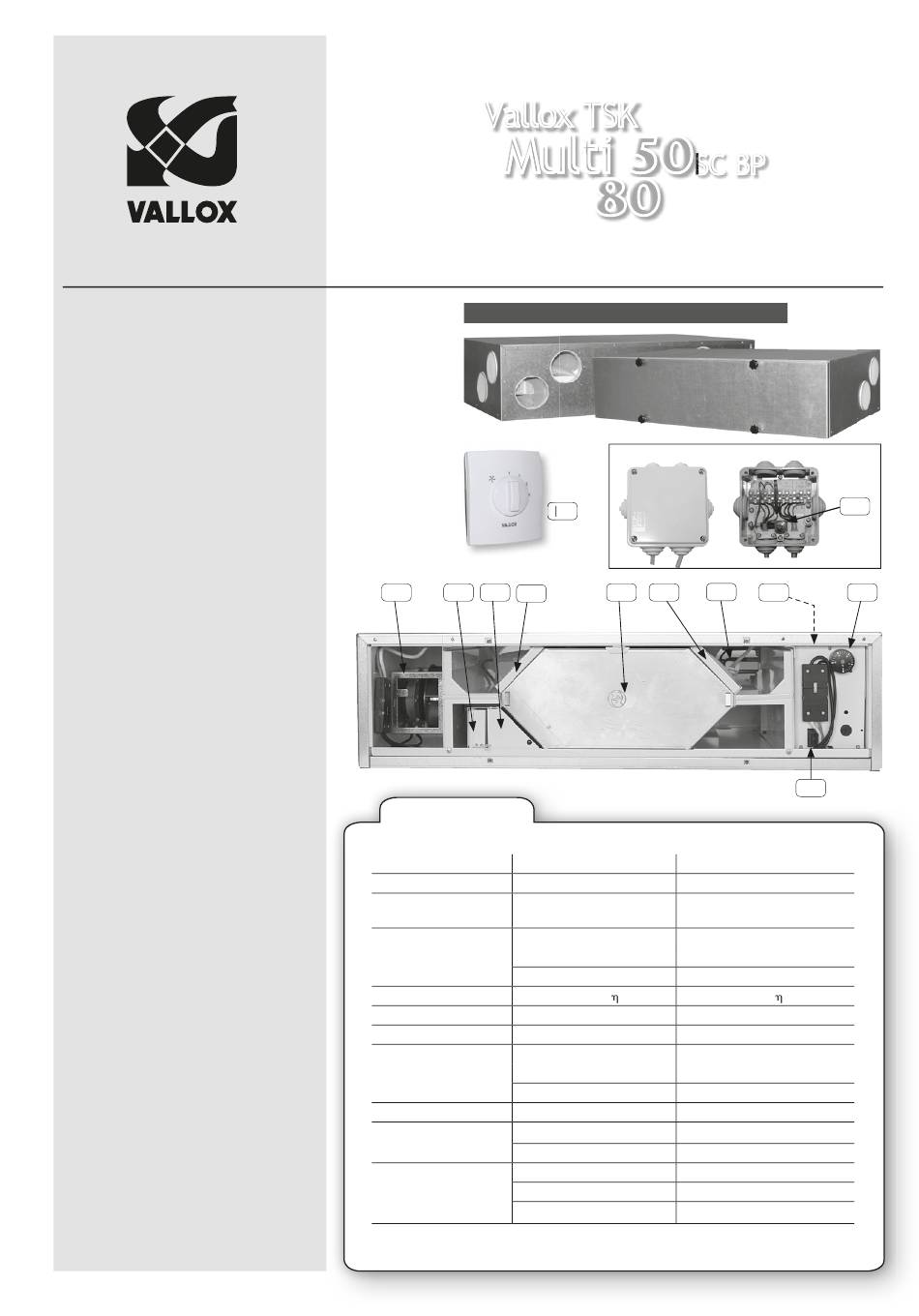

1
Supply air fan
2
Extract air fan
3
Antifreeze thermostat
4
Preheating radiator
900 W (TSK Multi 50 SC BP)
1500 W (TSK Multi 80 SC BP)
5
Heat recovery cell
6
Outdoor air fi lter F7
7
Outdoor air fi lter G4
8
Extract air fi lter G4
9
Summer/winter damper
10 Safety switch
11 Extract air potentiometer
(in the connection box)
12 Speed selector switch (1-4)
(option)
Vallox TSK
Multi 50
Low-energy ventilation unit
with heat recovery
Operating, maintenance and technical instructions
Operating, maintenance and technical instructions
1
6
9
8
TECHNICAL DATA
VALLOX TSK MULTI 50 SC BP
Electrical connection
230 V, 50 Hz, = 4.5 A
Degree of protection provided
IP 34
by enclosures
Integrated direct-current fan
Extract air
0.043 kW 0.32 A 62 dm
Supply air
0.043 kW 0.32 A 54 dm
Heat recovery
Cross-counter fl ow cell, > 80%
Heat recovery bypass
Motorised damper
Electric preheating unit
900 W, 3.9 A
Filters
Supply air
G4 + F7
Extract air
G4
Weight
45.0 kg
Ventilation power adjustment
SC controller, 0-10 VDC
Remote monitoring control 0-10 VDC
Options
SC controller
SlimLine PTXP MC cooker hood
SlimLine PTXPA MC cooker hood
Code
TSK MULTI 50 SC BP 3605-1, 3605-2
TSK MULTI 80 SC BP 3604-1, 3604-2
SC BP
SC BP
SC BP
80
12
12
5
7
4
VALLOX TSK MULTI 80 SC BP
230 V, 50 Hz, = 8.8 A
IP 34
/s 50 Pa
0.071 kW 0.5 A 93 dm
3
/s 50 Pa
0.071 kW 0.5 A 77 dm
3
Cross-counter fl ow cell, > 80%
Motorised damper
max 1500 W, 6.5 A
G4 + F7
G4
58.5 kg
SC controller, 0-10 VDC
Remote monitoring control 0-10 VDC
SC controller
SlimLine PTXP MC cooker hood
SlimLine PTXPA MC cooker hood
11
2
3
10
/s 100 Pa
3
/s 100 Pa
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSK MULTI 50 SC BP and is the answer not in the manual?

Questions and answers

Summary of Contents for Vallox TSK MULTI 50 SC BP

  • Page 1 Code TSK MULTI 50 SC BP 3605-1, 3605-2 TSK MULTI 80 SC BP 3604-1, 3604-2 Vallox TSK Multi 50 SC BP SC BP SC BP Low-energy ventilation unit with heat recovery © Vallox Operating, maintenance and technical instructions Operating, maintenance and technical instructions 1.09.609 E...
  • Page 2: Fan Speed Adjustment

    Cooker hood PTXPA-MC Heat recovery bypass In winter use the heat recovery cell of VALLOX TSK Multi SC BP 50/80 recovers heat from the air leaving the dwelling and uses it to heat the air coming from the outside. In summer use when it is warm outside, heating of outdoor air is not needed. The heat recovery cell is then bypassed with the damper in VALLOX TSK Multi 50/80 (see page 1, item 9).
  • Page 3: Maintenance Instructions

    HR cell back in place. Finally, push the sealing ledges and fi lters in place. © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 4 The mounting of the fan housings is carried out in the opposite order. © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 5: Condensing Water

    An airlock guarantees the removal of condensing water and silencing of any sounds. © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 6: Technical Data

    SC BP TECHNICAL DATA Performance TSK Multi 50 SC BP Measuring points Air volumes Vallox TSK Multi 50 SC BP Supply air (F7 + G4), Extract air (G4) Measuring points after the connection outlet. Fan curves indicate the total pressure ED = examples of pressure SFP (Specific Fan Power) recommended value <2.5 (kW m...
  • Page 7 TECHNICAL DATA Performance TSK Multi 80 SC BP Measuring points Air volumes Vallox TSK Multi 80 SC BP Supply air (F7 + G4), Extract air (G4) Measuring points after the connection outlet. Fan curves ED and SD are examples of pressure SFP (Specific Fan Power) recommended value <2.5 (kW m...
  • Page 8 Vallox TSK Multi 50 SC BP TECHNICAL DATA Electrical diagram 7025700 © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 9: Mounting Instructions

    Space required for SC speed switch for mounting Water outlet (alternative) 1060 1026 SPACE FOR MAINTENANCE © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 10: Exploded View And Parts List

    Part Code Body TSK Multi 50 SC BP / 50 MC / 80 SC BP / 80 MC Door assembly (incl. 2b door switch button) (50 MC/SC BP) .....................3473500 Door assembly (incl. 2b door switch button) (80 MC/SC BP) .....................3483000 Heat exchanger, counter-fl ow cell GS 18/400 (MC 50) .....................933120...
  • Page 11 Preheating radiator (80 units) ............................942220 Front resistor bracket ..............................3429500 Connection box (balance potentiometer 951128 inside) .....................952067 © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
  • Page 12 Vallox TSK Multi 50 SC BP www.vallox.com © VALLOX • We reserve the right to make changes without prior notice. What the units include can vary depending on the sales area.
