Operating the device
5.4 Operating RAID systems
5.4.5.2

Installing the hardware RAID adapter card

If you have ordered a device with hardware RAID system, the hardware RAID adapter card
is already installed in the delivery state.
If you want to subsequently operate your device as a hardware RAID system, you need to
install a hardware RAID adapter card.
Requirement
● 4 GB main memory
● T10 screwdriver
● Components for installing the hardware RAID adapter card. Information on these
components can be obtained from your local SIEMENS representative.

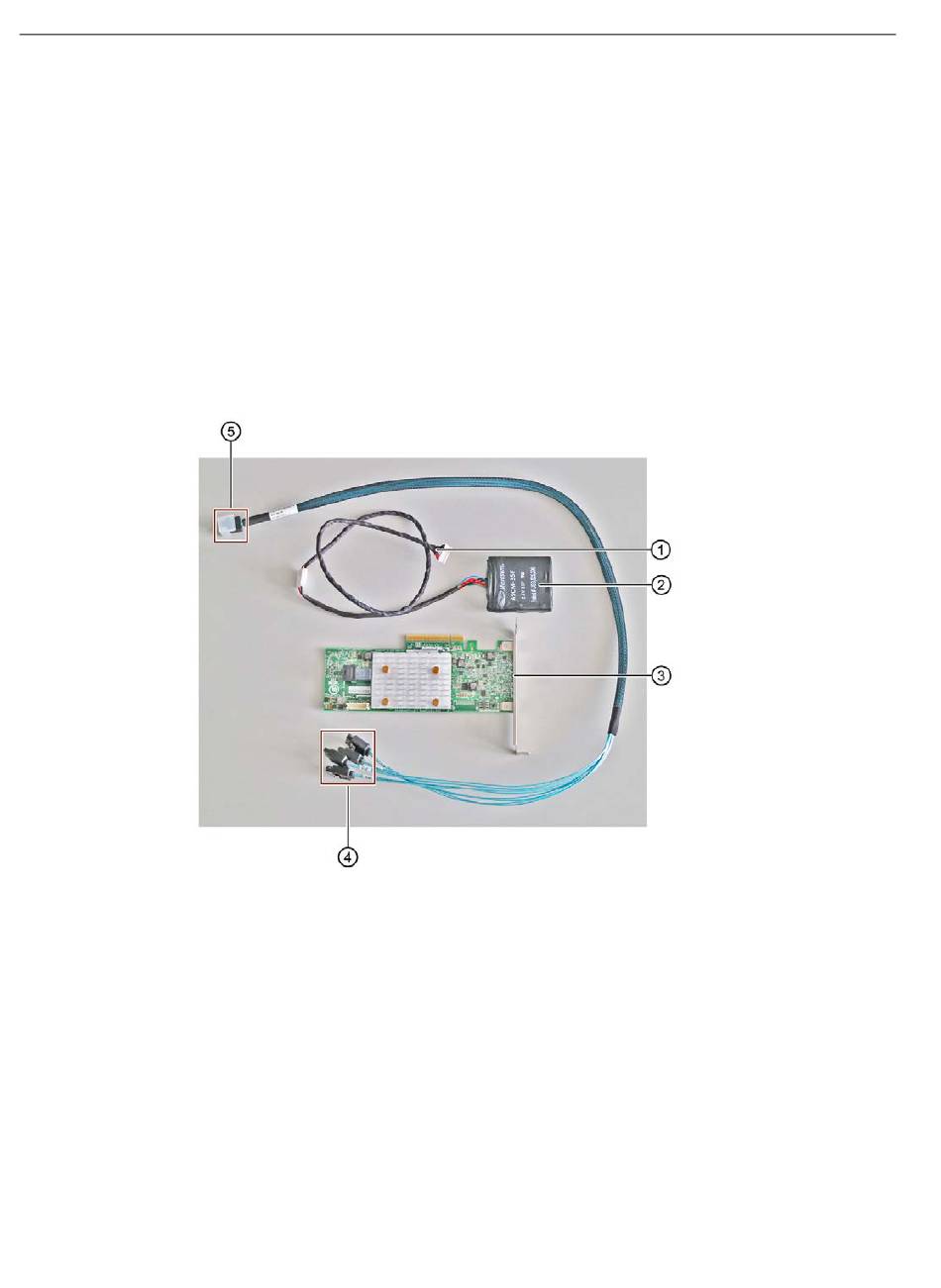

①
②
③
④
⑤
74
Capacitor block cable with plug
Capacitor block
Hardware RAID adapter card
"Microsemi Adaptec SmartRAID 3151-4i ("Controller", "Host Bus Adapter")"
Adapter cable: Numbered connections to the drives
Adapter cable: Connection to the hardware RAID adapter card
Operating Instructions, 10/2018, A5E43920357-AA
SIMATIC IPC847E
