VOLCANO VR Mini
VOLCANO VR1
VOLCANO VR2
VOLCANO VR3
VOLCANO VR-D

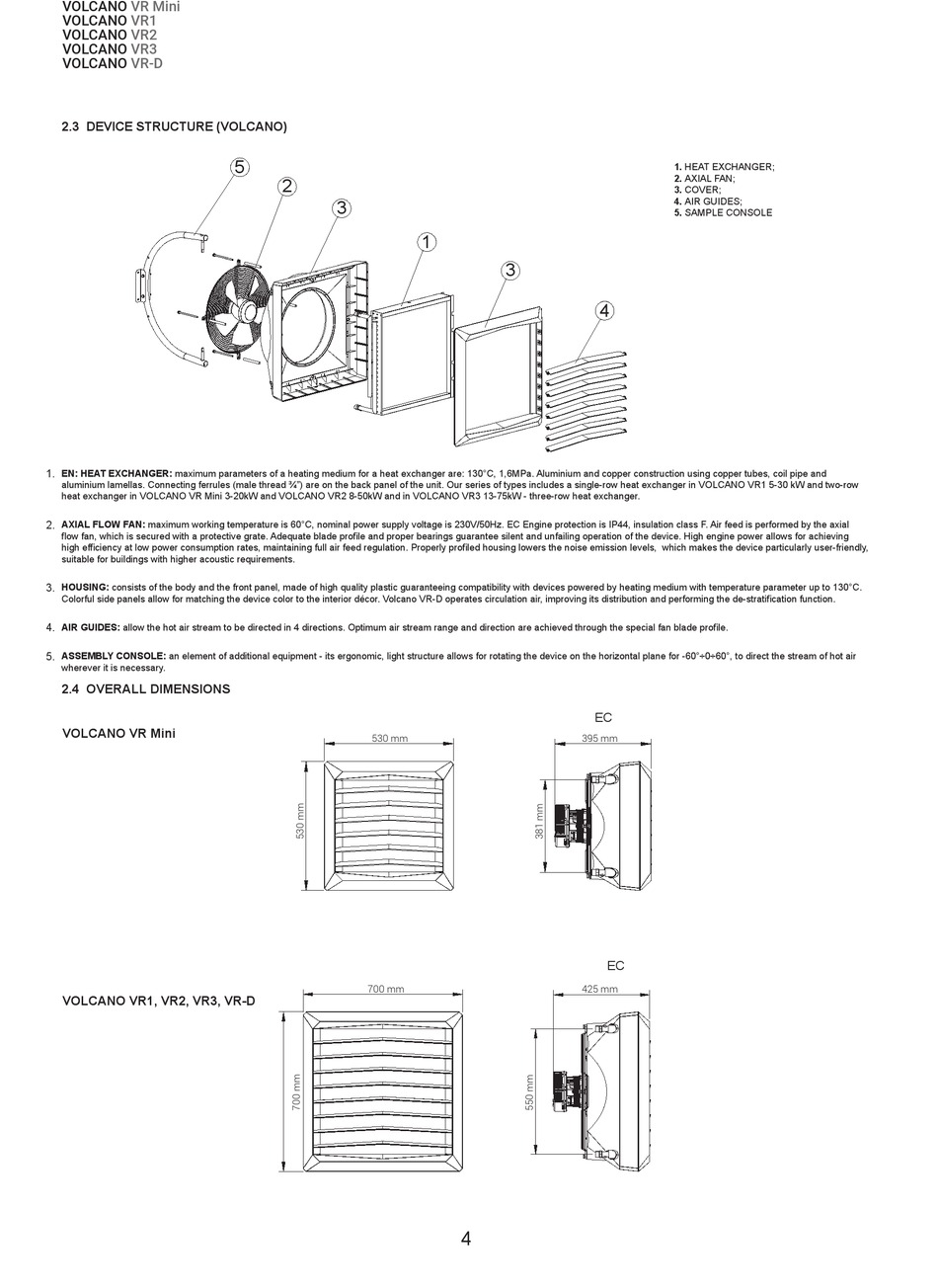

2.3 DEVICE STRUCTURE (VOLCANO)
1.
EN: HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 130°C, 1,6MPa. Aluminium and copper construction using copper tubes, coil pipe and
aluminium lamellas. Connecting ferrules (male thread ¾") are on the back panel of the unit. Our series of types includes a single-row heat exchanger in VOLCANO VR1 5-30 kW and two-row
heat exchanger in VOLCANO VR Mini 3-20kW and VOLCANO VR2 8-50kW and in VOLCANO VR3 13-75kW - three-row heat exchanger.
2.
AXIAL FLOW FAN: maximum working temperature is 60°C, nominal power supply voltage is 230V/50Hz. EC Engine protection is IP44, insulation class F. Air feed is performed by the axial
flow fan, which is secured with a protective grate. Adequate blade profile and proper bearings guarantee silent and unfailing operation of the device. High engine power allows for achieving
high efficiency at low power consumption rates, maintaining full air feed regulation. Properly profiled housing lowers the noise emission levels, which makes the device particularly user-friendly,
suitable for buildings with higher acoustic requirements.
3.
HOUSING: consists of the body and the front panel, made of high quality plastic guaranteeing compatibility with devices powered by heating medium with temperature parameter up to 130°C.
Colorful side panels allow for matching the device color to the interior décor. Volcano VR-D operates circulation air, improving its distribution and performing the de-stratification function.
4.
AIR GUIDES: allow the hot air stream to be directed in 4 directions. Optimum air stream range and direction are achieved through the special fan blade profile.
5.
ASSEMBLY CONSOLE: an element of additional equipment - its ergonomic, light structure allows for rotating the device on the horizontal plane for -60°÷0÷60°, to direct the stream of hot air
wherever it is necessary.

2.4 OVERALL DIMENSIONS

VOLCANO VR Mini
530 mm
700 mm
VOLCANO VR1, VR2, VR3, VR-D
5
2
3
530 mm
700 mm
1
3
310 mm
355 mm
4
1. HEAT EXCHANGER;
2. AXIAL FAN;
3. COVER;
4. AIR GUIDES;
5. SAMPLE CONSOLE
4
EC
395 mm 310 mm
EC
425 mm 355 mm
395 mm
425 mm
