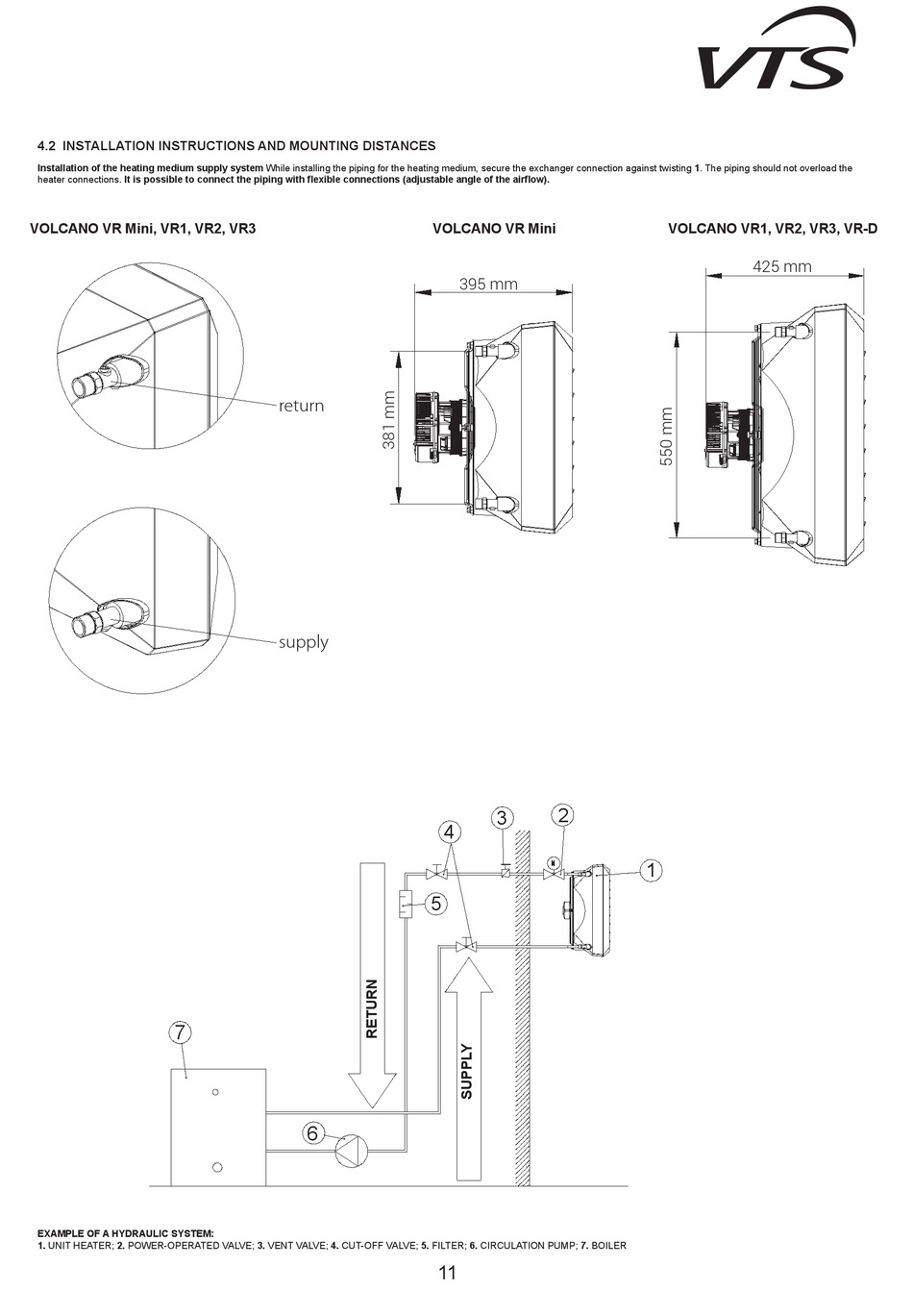

4.2 INSTALLATION INSTRUCTIONS AND MOUNTING DISTANCES
Installation of the heating medium supply system While installing the piping for the heating medium, secure the exchanger connection against twisting 1. The piping should not overload the
heater connections. It is possible to connect the piping with flexible connections (adjustable angle of the airflow).
Volcano VR1, VR2, VR3
VOLCANO VR Mini, VR1, VR2, VR3
700 mm
310 mm
7
EXAMPLE OF A HYDRAULIC SYSTEM:
1. UNIT HEATER; 2. POWER-OPERATED VALVE; 3. VENT VALVE; 4. CUT-OFF VALVE; 5. FILTER; 6. CIRCULATION PUMP; 7. BOILER
VOLCANO VR Mini
return
supply
4
5
6
11
355 mm
395 mm
2
3
VOLCANO VR1, VR2, VR3, VR-D
425 mm
1
