Summary of Contents for VTS Medical Systems VOLCANO VR Series

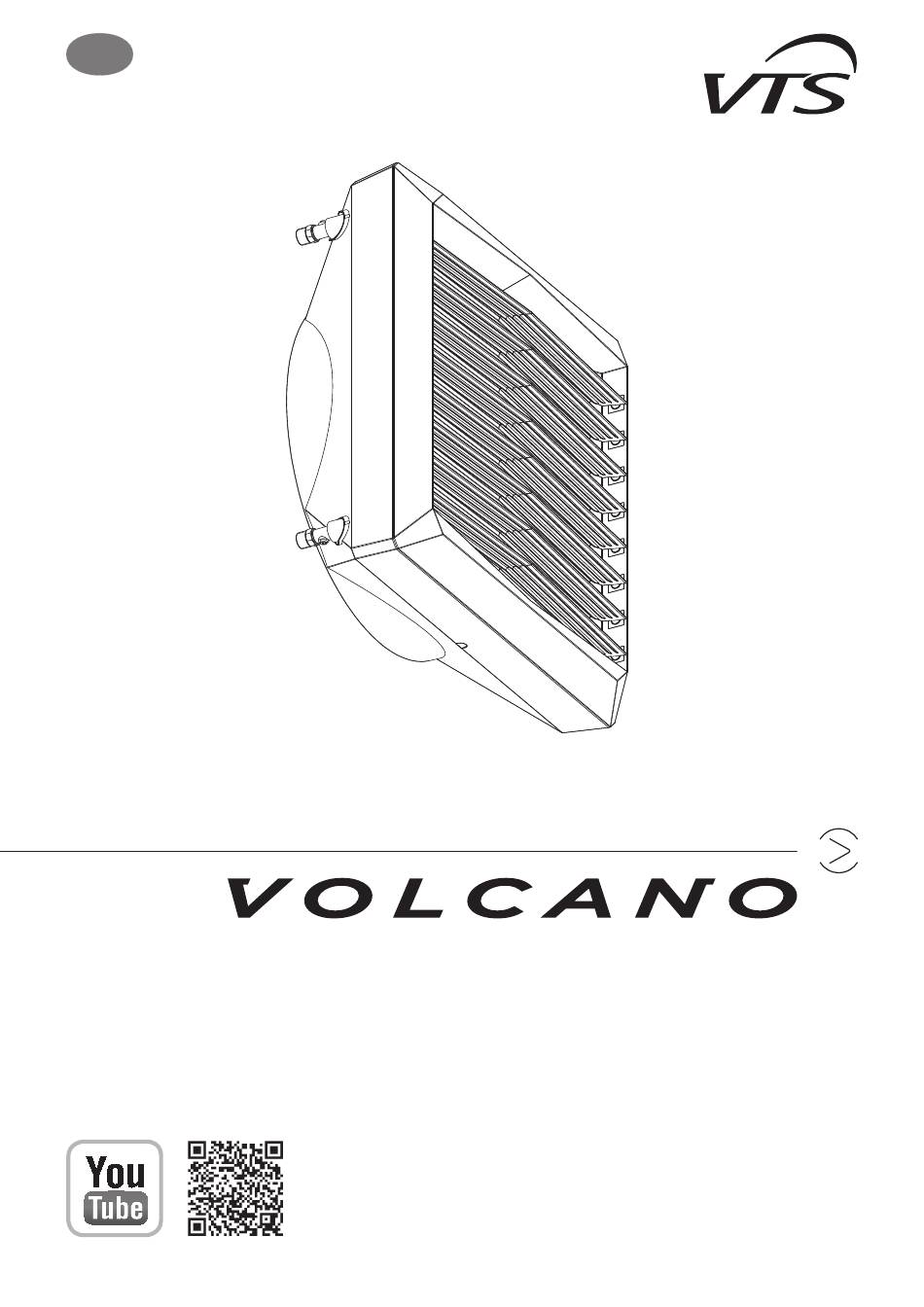

- Page 1 Technical documentation VOLCANO VR Mini VOLCANO VOLCANO Check us on VOLCANO VOLCANO VR-D VR-ver.2.1 (09.2017)
-
Page 2: Table Of Contents
VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D ORIGINAL INSTRUCTION TABLE OF CONTENTS 1. INTRODUCTION 1.1 Precautions, requirements, recommendations 1.2 Transport 1.3 Initial steps taken before instalation 2. DESIGN, USE, PRINCIPLE OF OPERATION 2.1 Intended use 2.2 Principle of operation 2.3 Construction of the device 2.4 Overall dimensions 3. -
Page 3: Introduction
1. INTRODUCTION 1.1 PRECAUTIONS, REQUIREMENTS, RECOMMENDATIONS Read the documentation carefully, install and use the equipment according to the specifications, and follow all the safety regulations in order to ensure proper and safe use of the device. Any use that is incompatible with these instructions can cause serious injuries. Restrict access by unauthorized persons and train the operational personnel.The term operational personnel refers to people who are suitably trained and have appropriate experience and knowledge of relevant norms, documentation and occupational health and safety regulations, and are authorized to conduct the required work and can identify possible threats and avoid them. -
Page 4: Overall Dimensions
VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D 2.3 DEVICE STRUCTURE (VOLCANO) 1. HEAT EXCHANGER; 2. AXIAL FAN; 3. COVER; 4. AIR GUIDES; 5. SAMPLE CONSOLE EN: HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 130°C, 1,6MPa. Aluminium and copper construction using copper tubes, coil pipe and aluminium lamellas. -
Page 5: Technical Data
3. TECHNICAL DATA – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR Mini Parameters T [°C]... - Page 6 VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR2 Parameters T...
- Page 7 VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO Parameter Unit of measure VR Mini VR-D Number of rows in the heater Maximum air flow rate m³/h 2100 5300 4850 5700 6500 Heating power range 3-20 5-30 8-50 13-75 Maximum temperature of the heating agent °C Maximum operating pressure* Maximum horizontal air stream range...
- Page 8 VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D Volcano VR Mini fan speed air flow m³/h 2100 1650 1100 noise level for Volcano EC* dB(A) EC motor electric power** horizontal air stream range vertical air stream range * reference conditions: room volume 1500m³, measurement taken at a distance of 5m. ** EC motor electric power for the air flow mentioned in the table Volcano VR1 fan speed...
- Page 9 4. ASSEMBLY NOTE Installation location should be suitably selected with special consideration of potential loads and vibrations. Prior to any installation or maintenance works, disconnect the device from the power supply and secure it against accidental power-up. Use filters in the hydraulic system. Before you connect the hydraulic lines (especially supply lines) to the device, you should clean/rinse the installation by draining two litres out of it. NOTE It is necessary to maintain a minimum distance of 0.4m from the wall or the ceiling;...
-
Page 10: Installation With A Bracket
VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D Examples of arrangement of air heating units mounted on a wall Top view Volcano V mini supply 4.1 INSTALLATION WITH A BRACKET The bracket is optional. In order to attach a bracket to the device, use crown drill bits to drill holes in the top and bottom panels of the heating unit (in places marked by 6), and insert sleeves into the holes. -
Page 11: Installation Instructions
4.2 INSTALLATION INSTRUCTIONS AND MOUNTING DISTANCES Installation of the heating medium supply system While installing the piping for the heating medium, secure the exchanger connection against twisting 1. The piping should not overload the heater connections. It is possible to connect the piping with flexible connections (adjustable angle of the airflow). Volcano VR1, VR2, VR3 VOLCANO VR Mini, VR1, VR2, VR3 VOLCANO VR Mini... - Page 12 VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D Heater vent/ heating medium drain The device will be vented when you loosen the vent bolt 1 placed on the connection pipe. The heating medium is drained through the drain plug 2, placed on the bottom connection pipe. When starting the device after the heating agent has been drained, remember to vent the heater.
-
Page 13: Automatic Devices
5. AUTOMATICS 5.1 ELEMENTS OF AUTOMATICS Electric connections may only be made by well-trained electricians, and according to: Occupational health and safety regulations Assembly instructions Technical documentation for each of the automatic elements NOTE Before starting the assembly process and connecting the system, familiarize yourself with the original documentation attached to the automatic devices. MODEL SCHEMAT DANE TECHNICZNE... -
Page 14: Start-Up, Operation, Maintenance
VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D MODEL SCHEMAT DANE TECHNICZNE UWAGI TWO-WAY VALVE ● Two-way valve should be installed on the return (outlet) pipeline. ● Connection diameter: 3/4” ● Automation element drawings are only a visualisation of sample ●... -
Page 15: Technical Information To The Regulation
9. TECHNICAL INFORMATION TO THE REGULATION (EU) NO 327/2011 IMPLEMENTING DIRECTIVE 2009/125/EC Model: VOLCANO VR Mini EC VOLCANO VR1/VR2 EC VOLCANO VR3 EC 28.5% 27.5% Static VSD-No 2016 VTS Plant Sp. z o.o., KRS 0000144190, Polska 1-2-2701-0304 1-2-2701-0289 1-2-2701-0290 0,41kW, 2826m³/h, 145Pa 0,48kW, 4239m³/h, 124Pa 0,68kW, 6006m³/h, 128Pa 1376RPM... -
Page 16: Service
VOLCANO VR Mini VOLCANO VOLCANO VOLCANO VOLCANO VR-D 10. SERVICING 10.1 PROCEDURES IN CASE OF DEFECTS VR Mini, VR1, VR2, VR3, VR-D Problem Check points Description ● assembly of the exchanger connections with two wrenches (adjustment), which safeguards against internal twisting of the collectors, ●... - Page 17 Complaint Form VTS POLSKA Sp. z o.o. Al. Grunwaldzka 472 A 80-309 Gdańsk Polska www.vtsgroup.com The company submitting the notification: The company that installed the equipment: Date of notification: Type of device: Factory number*: Date of purchase: Date of installation: Place of installation: Detailed description of defect: Contact person:...
