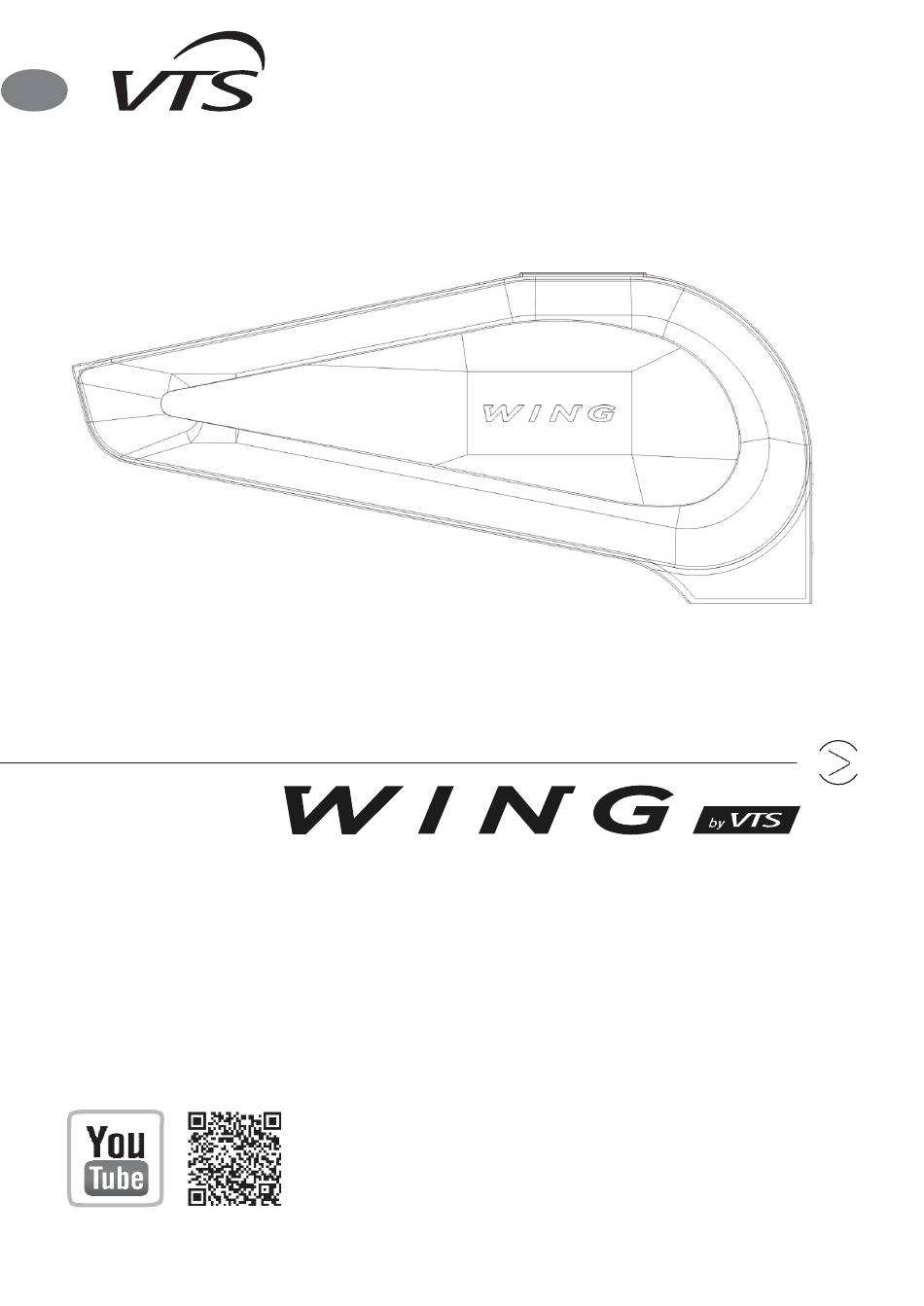

- Page 1 Technical documentation Check us on WING W100-200 WING E100-200 WING C100-200 WG.US-Rev.2.8 (09.2020)
-
Page 2: Table Of Contents
WATER AIR CURTAIN – WING W100-200 ..............13 8.2. ELECTRIC AIR CURTAIN – WING E100-200 ............... 14 8.3. WING C100-200 – COLD AIR CURTAIN ..............14 ELECTRICAL DIAGRAMS ....................15 9.1. Electrical diagram of WING W100-200-EC – 1~240V ............15... -
Page 3: Introduction
2.2. PRINCIPLE OF OPERATION WING W100-200 - heating medium, for example hot heating water, returns heat through a heat exchanger with a wide heat-exchange surface, thus providing high heating output (13.6-160 MBH). A transverse fan (518-2590 CFM) sucks in the air in the room, and pumps it through the heat exchanger, back into the room. -
Page 4: Structure (Wing 100-200)
2. CONTROL SYSTEM: it is equipped with an outlet on the connection clamp block X1 for WING W100-200 and on the X2 block for WING E100-200 for connecting an on-wall controller as well as a valve actuator for WING W100-200. -
Page 5: Assembly/ Disassembly Of Junction Box Cover
The range of the air jet - installation height - Horizontal installation - Vertical installation fan speed fan speed height of installation [ft] width of the door [ft] WING W100, W150, W200 9-1/2 7-1/2 WING W100, W150, W200 9-1/2 7-1/2 WING E100, E150, E200 9-1/2 7-1/2... -
Page 6: Horizontal Installation By Means Of Holders
WING W100-200 WING E100-200 WING C100-200 3.2.1. HORIZONTAL INSTALLATION BY MEANS OF BRACKETS. It is possible to install the WING do the wall horizontally in two options: OPTION I: installation brackets with their arms faced upwards. In this option you should first screw the installation brackets to the wall (1) with intervals W1 for a 42in curtain (there are 2 installation handles) and W1, W2 for 62in and 82in curtain (there are 3 installation handles) so that the handles' arms are levelled. -
Page 7: Vertical Assembly Using Instalation Holders
3.2.2. VERTICAL INSTALLATION USING INSTALLATION BRACKETS. It is possible to install WING to a wall vertically on both sides of the gate (with the motor on the bottom or on the top). For this option it is not important if you screw the handles down to the unit first and then screw the whole down to the wall or first attach the handles to the wall and then screw the curtain down to the handles. - Page 8 WING W100-200 WING E100-200 WING C100-200 VENTING OF DEVICE/DRAINING OF HEATING MEDIUM Venting of the curtain water coil followed by loosening the union connection on the outlet connection. In case of the vertical installation with the coils connection on the bottom side, the access to the vent valve is by removing the side cover.
- Page 9 Recommended safety devices and wires WING E100-200 Device E100 E150 E200 WING W100-200 and WING C100-200 Device W/C100 W/C150 W/C200 Supply voltage 1~240V Fan supply voltage 1~240V 33.5A 27.1A 1.9A 2.8A 4.4A Power wire cross-section 3 x 10 AWG 1.5A 2.2A...
- Page 10 WING W100-200 WING E100-200 WING C100-200 Air curtains control • The motor is controlled by applying voltages in the range 0-10VDC to terminals Ai and G • The motor will not start when a voltage of 0-1VDC is applied to terminals Ai and G •...
-
Page 11: Elements Of Conttrols
4. ELEMENTS OF CONTROLS. Electrical connections can be carried out only by qualified electricians, according to the binding regulations of: ● industrial safety; ● installation instructions. ● technical documentation for each individual element of automatics. IMPORTANT! Before starting the controls installation, please read the operation and installation instruction for each of them. Instructions are included in the box for each control. MODEL DIAGRAM TECHNICAL DATA... -
Page 12: Servicing
E100-200 WING C100-200 6. SERVICING 6.1. PROCEDURE IN CASE OF MALFUNCTION WING W100-200/EHN Symptoms What to check Description ● Fitting of the heat exchanger terminals, using two keys acting in two opposite directions (apply the keys on each terminal), which protects against the possibility of internal breaking of the collecting pipes. -
Page 13: Technical Specification
8. TECHNICAL SPECIFICATION 8.1. WATER AIR CURTAIN – WING W100-200 temperature of water at the inlet to the device z – – temperature of water at the outlet from the device – temperature of air at the inlet to the device –... -
Page 14: Electric Air Curtain - Wing E100-200
2707 2001 1377 noise level [dB(A)]* * The noise level has been measured within a 10 ft distance from the device; reference conditions: semi-open space – wall-mounted device. Parameters WING W100-200 WING E100-200 WING C100-200 unit of W100 W150 W200... -
Page 15: Electrical Diagrams
9. ELECTRICAL DIAGRAMS 9.1. Electrical diagram of WING W100-200-EC – 1~240V... - Page 16 WING W100-200 WING E100-200 WING C100-200 9.2. Electrical diagram of WING C100-200-EC – 1~240V...
- Page 17 9.3. Electrical diagram of WING E100-EC 1~240V...
- Page 18 WING W100-200 WING E100-200 WING C100-200 9.4. Electrical diagram of WING E100-EC -3~240V...
- Page 19 9.5. Electrical diagram of WING E100-EC- 3~480V...
- Page 20 WING W100-200 WING E100-200 WING C100-200 9.6. Electrical diagram of WING E150-200-EC- 3~240V...
- Page 21 9.7. Electrical diagram of WING E150-200-EC- 3~480V...
- Page 22 WING W100-200 WING E100-200 WING C100-200 Complaint Form VTS America Inc. 3535 Gravel Springs Rd Ext #203, Buford, GA 30519 PH: 470-809-6811, FAX: 470-809-6815 The company submitting the notification: The company that installed the equipment: Date of notification: Type of device: Factory number*: Date of purchase: Date of installation:...
- Page 23 Warranty card 1. Stamp of the company to carry out installation VTS America Inc. 3535 Gravel Springs Rd Ext #203, Buford, GA 30519 PH: 470-809-6811, FAX: 470-809-6815 2. Factory number of device 3. Place of installation 4. Date of installation 5.
