- Page 1 Technical documentation Check us on VR-ver.0.1 (11.2017)
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.1 PRECAUTIONS, REQUIREMENTS, RECOMMENDATIONS ............................ 3 1.2 TRANSPORT ........................................3 1.3 INITIAL STEPS TAKEN BEFORE THE INSTALLATION ............................3 STRUCTURE, INTENDED USE, PRINCIPLE OF OPERATION ............................ 3 2.1 INTENDED USE ........................................3 2.2 PRINCIPLE OF OPERATION ....................................3 2.3 DEVICE STRUCTURE (VOLCANO) .................................. -
Page 3: Precautions, Requirements, Recommendations
1. INTRODUCTION 1.1 PRECAUTIONS, REQUIREMENTS, RECOMMENDATIONS Read the documentation carefully, install and use the equipment according to the specifications, and follow all the safety regulations in order to ensure proper and safe use of the device. Any use that is incompatible with these instructions can cause serious injuries. Restrict access by unauthorized persons and train the operational personnel. -
Page 4: Device Structure (Volcano)

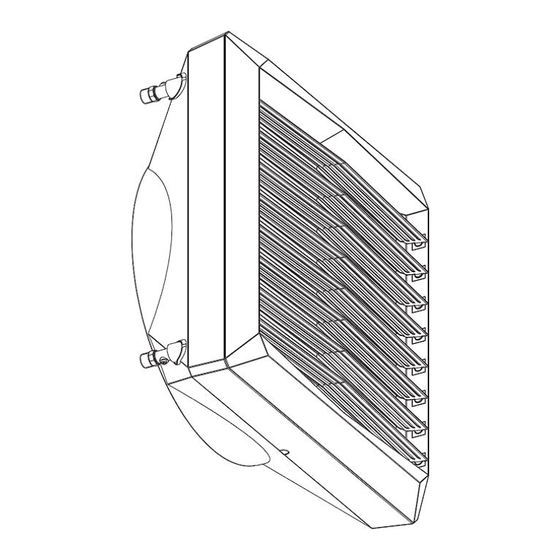

2.3 DEVICE STRUCTURE (VOLCANO) HEAT EXCHANGER; AXIAL FAN; COVER; AIR GUIDES; SAMPLE CONSOLE HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 266°F, 232PSI. Aluminium and copper construction using copper tubes, coil pipe and aluminium lamellas. Connecting ferrules (male thread ¾”) are on the back panel of the unit. Our series of types includes a single-row heat exchanger in VOLCANO VR1 17-102 MBH and two-row heat exchanger in VOLCANO VR Mini 10-68 MBH and VOLCANO VR2 27-170 MBH and in VOLCANO VR3 44-256 MBH - three-row heat exchanger. -
Page 5: Technical Data
VNO VR1, VR2, VR3, VR-D 3. TECHNICAL DATA – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR mini Parameters Tz /Tp [°F]... - Page 6 – inlet water temperature; T – outlet water temperature; T – inlet air temperature; T – outlet air temperature; P – heating capacity; Q – water flow; Q - air flow rate; Δp – pressure drop in the heat exchanger Volcano VR2 Parameters Tz /Tp [°F] 194/158...
- Page 7 Unit of VOLCANO VOLCANO VOLCANO VOLCANO VOLCANO Parameter measure VR mini VR-D Number of rows in the heater Maximum air fl ow rate 1236 3119 2855 3355 3826 Heating power range 10-68 17-102 27-171 44-256 Maximum temperature of the heating agent °F Maximum operating pressure* Maximum horizontal air stream range...
-
Page 8: Assembly
Volcano VR3 fan speed air flow 3355 2413 1766 noise level for Volcano EC* dB(A) EC motor electric power** 0,48 0,37 0,28 horizontal air stream range vertical air stream range * reference conditions: room volume 52 972 ft³, measurement taken at a distance of 16ft ** EC motor electric power for the air flow mentioned in the table * for vertical air guides adjustment Volcano VR-D... -
Page 9: Installation With A Bracket
range of air stream * for horizontal air guide adjustment ** for symmetric air guide adjustment at an angle of 45° device noise level (depending on acoustic characteristics of a room) operation mode of the heating device, e.g. it can also operate as an air mixing device preventing air stratification ... -
Page 10: Installation Instructions And Mounting Distances
rotation of the device when mounted on a console 4.2 INSTALLATION INSTRUCTIONS AND MOUNTING DISTANCES Installation of the heating medium supply system While installing the piping for the heating medium, secure the exchanger connection against twisting 1. The piping should not overload the heater connections. It is possible to connect the piping with flexible connections (adjustable angle of the airflow). - Page 11 Heater vent/ heating medium drain The device will be vented when you loosen the vent bolt 1 placed on the connection pipe. The heating medium is drained through the drain plug 2, placed on the bottom connection pipe. When starting the device after the heating agent has been drained, remember to vent the heater. You need to pay special attention to secure the device against water accidentally getting into the heater casing during the agent draining process.
-
Page 12: Automatics
5. AUTOMATICS 5.1 ELEMENTS OF AUTOMATICS Electric connections may only be made by well-trained electricians, and according to: Occupational health and safety regulations Assembly instructions Technical documentation for each of the automatic elements NOTE Before starting the assembly process and connecting the system, familiarize yourself with the original documentation attached to the automatic devices. -
Page 13: Industrial Safety Instruction
7. INDUSTRIAL SAFETY INSTRUCTION Special instructions concerning safety NOTE Prior to any work connected with the device, the device must be disconnected from the power supply and be secured properly. Wait until the fan stops. Use stable assembly platforms and hoists. ... -
Page 14: Complaint Procedure
it is forbidden to place, dispose of and store worn-out electric and electronic equipment, together with other waste. Dangerous compound contained in electronic and electric equipment have a very adverse impact on plants, micro- organisms, and, most importantly, on humans, as they damage our central and peripheral nervous system, as well as circulatory and internal system. -
Page 15: Electrical Diagrams
9. ELECTRICAL DIAGRAMS 9.1. Connection of Volcano VR Mini, VR1, VR2, VR3, VR-D to the HMI VR controller 1-supply: 120V – 60Hz /240V - 60Hz*, 2-main switch, fuses*, 3-HMI VR controller, 4-Volcano fan * the device does not include: the main switch, fuses and feeder cable 9.2. -
Page 16: Connection Of Volcano Vr Mini, Vr1, Vr2, Vr3 To The Hmi Vr Controller And External Temperature Sensor
9.3. Connection of Volcano VR Mini, VR1, VR2, VR3 to the HMI VR controller and external temperature sensor 1-supply: 120V – 60Hz /240V - 60Hz *, 2-main switch, fuses*, 3-HMI VR controller, 4-Volcano fan * the device does not include: the main switch, fuses and feeder cable 9.4. - Page 17 VTS POLSKA Sp. z o.o. Al. Grunwaldzka 472 A 80-309 Gdańsk Polska www.vtsgroup.com The company submitting the notification: The company that installed the equipment: Date of notification: Type of device: Factory number*: Date of purchase: Date of installation: Place of installation: Detailed description of defect: Contact person: Name and surname:...
-
Page 18: Vts Standard Warranty Terms And Conditions For Euroheat Products
10. VTS STANDARD WARRANTY TERMS AND CONDITIONS FOR EUROHEAT PRODUCTS Warranty card 1. Stamp of the company to carry out installation VTS POLSKA Sp. z o.o. Al. Grunwaldzka 472 A, 80-309 Gdańsk Polska www.vtsgroup.com 2. Factory number of device 3. Place of installation 4. -
Page 19: Table Of Inspection And Maintanance
11. TABLE OF INSPECTION AND MAINTANANCE INSPECTIONS AND MAINTENANCE Date Made by Cleaning, Cleaning of the heat exchanger Company...
