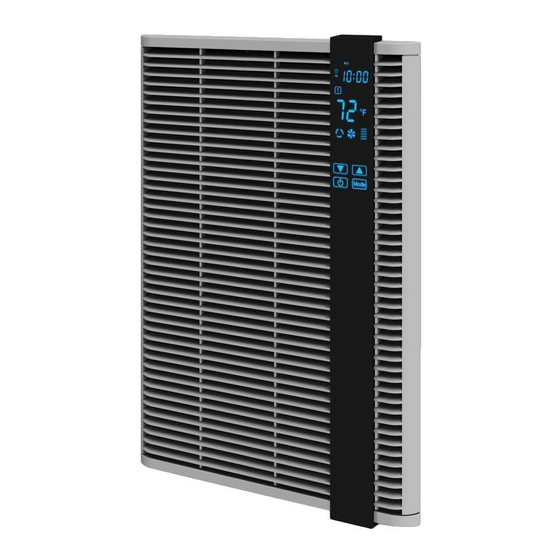

- Page 1 Don Burger Inc. ~ 866-360-9880 Smart Series www.donburgerinc.com ™ Wall Heater Operations Manual Models: HT2024SS 240V, 2000W FSSWH2004 240V, 2000W HT1502SS 120V, 1500W FSSWH1502 120V, 1500W Save This Manual Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com...
-
Page 2: Table Of Contents
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com Index Features that are functional ................pg. 3 Thermostat Display ..................pg. 4 Functionality of touch screen buttons ............pg. 5 Operating instructions ..................pg. 6 Initial setup instructions ................. pg. 6 Setup day and time Procedure ................ pg. 6 Homeowner setup instructions ............... -
Page 3: Features That Are Functional
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com Touch Screen Control Board OPERATIONS MANUAL FEATURES THAT ARE FUNCTIONAL 2” X 6” Electronic LED Display with blue backlight - Easy to read, in the dark or lighted areas Touch Screen surface with soft signal beeps Fahrenheit or Celsius readout 7 day (5 and 2) programmable settings, up to 4 settings per day Manual or Preset automatic mode selection... -
Page 4: Thermostat Display
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com THERMOSTAT DISPLAY Days of week Group 1 (Mon to Fri) Group 2 (Sat & Sun) Time Periods 1 = Wake up period Time of day 2 = Daytime period This area is also used when pro- 3 = Evening Period gramming custom periods 4 = Sleep Time... -
Page 5: Functionality Of Touch Screen Buttons
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com ICONS (For Touch Screen only) Note: The four icons (touch pads) shown below control the setting and operation of the heater as indicated. ON/OFF icon (in OFF position, this icon is orange and half the brightness. -
Page 6: Operating Instructions
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com OPERATING INSTRUCTIONS 1. W hen the heating unit is first powered up, it will default to the OFF position. The power ON /OFF icon in the lower left corner of the display will il- luminate an orange color. INITIAL SETUP INSTRUCTIONS (This setup is usually performed by the installer) Touch ON /OFF icon located in the lower left corner of the display. - Page 7 Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com SETUP DAY AND TIME PROCEDURE (This setup is usually performed by the installer) 3. T ouch the MODE icon. AM / PM indicator will flash. Use the UP Icon and DOWN Icon to set appropriate time. AM / PM will change auto- matically once you pass 12:00. 4. T ouch the MODE icon. MINUTES will flash. Use the UP Icon and DOWN...
-
Page 8: Homeowner Setup Instructions
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com HOMEOWNER SETUP INSTRUCTIONS 1. The digital display has default settings for the “Automatic Mode”. See default settings below. If these settings are satisfactory please skip to the next programming option, Celsius and Fahrenheit (page 12). If not, follow the steps below for “Customized Settings”. -
Page 9: Customize Your Settings
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com CUSTOMIZE YOUR SETTINGS Note: You can customize ON and OFF times and temperature for two catagories, Weekdays (MON - FRI) and Weekends (SAT & SUN). Each category has 4 settings. Wake-Up Daytime Evening Sleep Time. Please set a start time and temperature for each period. - Page 10 Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com CUSTOMIZE YOUR SETTINGS Touch MODE icon again to start programming the “Set Temperature Setting”(Wake Up). Touch UP Icon or the Down Icon to set tem- perature for Wake Up. Touch MODE icon to start programming the HOURS for Period 2 (Day- time Period).
- Page 11 Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com CUSTOMIZE YOUR SETTINGS 10. Touch MODE icon again to start programming the “Set Temperature Set- ting” (Evening). Use the UP Icon or the Down Icon to set temperature for evening. 11. Touch MODE icon to start programming the HOURS for Period 4 (Sleep Time Period).
-
Page 12: Celsius Or Fahrenheit Indication
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com CUSTOMIZE YOUR SETTINGS 16. Once the steps are completed above, Touch MODE icon to set all the information programmed in above steps. The display is now back to Normal/Standard operation. CELSIUS OR FAHRENHEIT INDICATION Simultaneously touch and hold MODE icon and DOWN Icon icon for... -
Page 13: Night Light Operation
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com NIGHT LIGHT OPERATION (Also this will allow display to fully illuminate display) Touch and hold MODE Icon and UP Icon simultaneously for 1.5 seconds. Notice that the “Light bulb” symbol will illuminate. Touch both icons again and the “Light Bulb”... -
Page 14: Remote Controller
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com REMOTE CONTROLLER This tiny device is a remote means to control your heater from a distance no more than 12 feet away from the display. When pointing the device it must be in line of sight in order to operate correctly. -
Page 15: Fan Only Operation (No Heat)
Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com FAN ONLY OPERATION (NO HEAT) This heater also has the option to use as a FAN ONLY device. Heat will not be produced, but the ventilator fan will operate to provide a nice gentle breeze to circulate the air. - Page 16 Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com 470 Beauty Spot Road E 5200-11047-001 2/11 Bennettsville, SC 29512 ECR 38987 www.marleymep.com Don Burger Inc. ~ 866-360-9880 www.donburgerinc.com...
