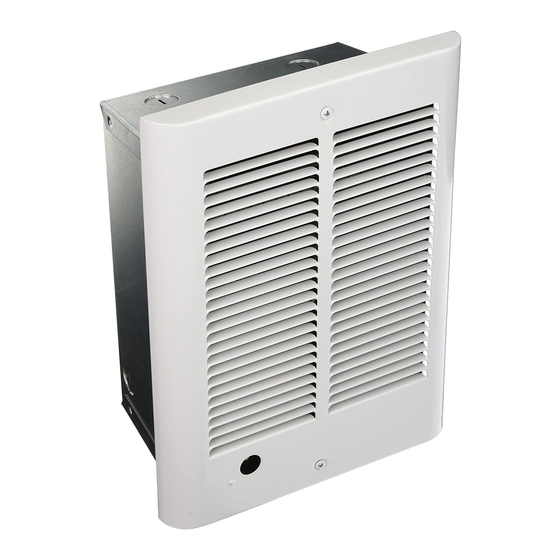

COS-E Series
Fan-Forced Wall Heaters
Installation, Operation & Maintenance Instructions
Table 1. Specifications
MODEL
MODEL
CZ1512T
CZ1512-IF
CZ1012T
CZ1012-IF
CZ1548T
CZ1548-IF
CZ1048T
CZ1048-IF
CZ2048T
CZ2048-IF
* Factory wired for full wattage, field convertible to half wattage.
*-IF Models provided without back box or thermostat. Model CZBB Back-box and Model CZTDP thermostat kit sold separately.
WHEN USING ELECTRIC APPLIANCES, BASIC PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PER-
SONS, INCLUDING THE FOLLOWING:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. Keep combustible materials,
such as furniture, pillows, bedding, papers, clothes, etc. and
curtains at least 3 feet (0.9 m) from the front of the heater.
3. Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
4. Do not operate any heater after it malfunctions. Disconnect
power at service panel and have heater inspected by a rep-
utable electrician before using.
5. Do not use outdoors.
6. To disconnect heater, turn controls to off, and turn off power
to heater circuit at main disconnect panel.
7. Do not insert or allow foreign objects to enter any ventilation
or exhaust opening as this may cause an electric shock, fire,
or damage to the heater.
8. To prevent a possible fire, do not block air intake or exhaust
in any manner.
ECR 40234
VOLTS
WATTS/AMPS
120
1500W/12.5A
120
1000W/8.4A
240
1500W/6.3A
208
1125W/5.4A
240
1000W/6.3A
208
750W/3.6A
240
2000W/8.3A
208
1500W/7.2A

IMPORTANT INSTRUCTIONS

WARNING
SAVE THESE INSTRUCTIONS
Conforms to ANSI/UL2021 and
CSA C22.2, No. 46
WATTS/AMPS*
750W/6.3A
750W/4.2A
750W/3.1A
563W/2.7A
500W/2.1A
375W/1.8A
1000W/4.2A
750W/3.6A
!
9. A heater has hot and arcing or sparking parts inside. Do not
use it in areas where gasoline, paint, or flammable liquids
are used or stored.
10. Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electric shock, or injury to persons.
11. This heater is provided with a an automatic safety limit con-
trol that shuts the heater off should it overheat. If you find
the heater off, inspect for any objects on or adjacent to the
heater that may have blocked the airflow or otherwise
caused high temperatures to have occurred and remove any
objects that may have caused the overheating. Refer to the
Maintenance Instructions section of this manual for how to
reset this safety control.
12. This heater is intended for comfort heating applications and
not intended for use in special environments. Do not use in
damp or wet locations such as marine or greenhouse or in
areas where corrosive or chemical agents are present.
13. When installing, see INSTALLATION INSTRUCTIONS for
additional warnings and precautions.
14. For safe and efficient operation, and to extend the life of your
heater, keep your heater clean - See MAINTENANCE
INSTRUCTIONS.
08/14
®
CLIP-N-FIT
FEATURE
®
Patented CLIP-N-FIT
feature (US Patented
#6,172,343) allows installer to pick a
wattage onsite. Factory wired for full
wattage, easily field adjustable for half
wattage. Half wattage option is permanent
change complying with many local electrical
code requirements.
5200-11217-002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CZ1512T and is the answer not in the manual?

Questions and answers

harold goglia
January 18, 2025

why is self hold limit not letting current flow

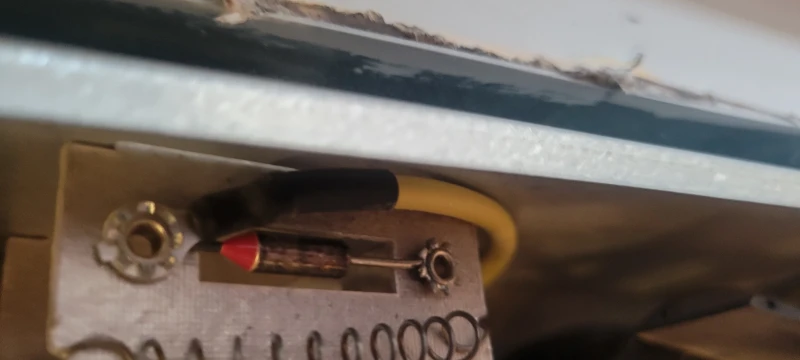

User image 678be5ca2dd45
