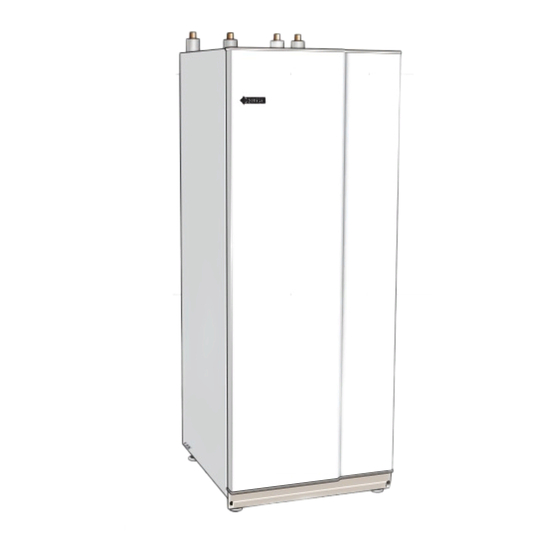

- Page 1 Installer manual VPB/VPBS Hot water heater IHB GB 1035-4 031441...
-
Page 3: Table Of Contents
Table of Contents 1 Important information Installation alternative Safety information 5 Electrical installation 2 Delivery and handling Sensors Transport Direct-current anode Assembly 6 Commissioning and adjusting Supplied components Filling and venting Removing the covers Start-up and inspection 3 The water heater design 7 Service 4 Pipe connections Service actions... -
Page 4: Important Information
Marking VPB 200 E is CE marked and fulfils IP21. The CE marking means that NIBE ensures that the product meets all regulations that are placed on it based on relev- ant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made. - Page 5 Inspection of the installation Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person. ✔ Description Notes Signature Date Heat pump (page 10) Shut off valves Hot water (page 10) Shut off valves Cold water (page 10)
- Page 6 Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 Flurlingen Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: info@nibe.ch www.nibe.ch Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: nibe@nibe.cz www.nibe.cz...
-
Page 7: Delivery And Handling
2 Delivery and handling Transport Removing the covers VPB/VPBS should be transported and stored vertically in Front cover a dry place. The VPB/VPBS may, however, be carefully laid on its back when being moved into a building. 1. Remove the screws from the lower edge of the front cover. -
Page 8: The Water Heater Design
3 The water heater design Chapter 3 | The water heater design VPB/VPBS... - Page 9 Pipe connections Electrical components Direct current anode (only VPB 200 E) Connection, cold water Cable to direct-current anode Connection, hot water Connection, hot water circulation (Not VPB/VPBS Miscellaneous PF 1 Rating plate Docking connection, flow line (from heat pump*) PF 3 Serial number plate Docking connection, return line (to heat pump*) Adjustable feet...
-
Page 10: Pipe Connections
4 Pipe connections General Dimensions and pipe connec- tions Pipe installation must be carried out in accordance with current norms and directives. Internal support bushes should be fitted when a plastic pipe or annealed copper pipe is used. The water heater must be fitted with the requisite valves, such as a safety valve, shut-off valve, non-return valve, and vacuum valve. - Page 11 VPB/VPBS Chapter 4 | Pipe connections...
-
Page 12: Heat Pump
Heat pump Cold and hot water Connecting to heat pump Connecting cold and hot water The heat pump supply and return are connected to There must be a mixing valve if the temperature can ex- VPB/VPBS. ceed 60 °C. Connecting hot water circulation VPB/VPBS R and E have a connection that allows hot water circulation. -
Page 13: Installation Alternative
VPB/VPBS can be docked with another heat source, for VPB/VPBS can be connected in several different ways, example NIBE F1145. one of which is shown here. Further option information is available at www.nibe.eu and in the respective assembly instructions for the heat sources used. Symbol key... -
Page 14: Electrical Installation
5 Electrical installation NOTE Electrical installation and service must be carried out under the supervision of a qualified electri- cian. Electrical installation and wiring must be carried out in accordance with the stipulations in force. Sensors VPB/VPBS can be supplemented with up to two hot water sensors, one for display and one for control. -
Page 15: Direct-Current Anode
Direct-current anode VPB 200E is factory equipped with direct-current anode and supplied potentiostat. The anode cable (W1) is in- stalled in the anode from the factory and only needs to be connected to the potentiostat. 1. Route the anode cable (W1) along the docking pipe, flow line (XL8). -
Page 16: Commissioning And Adjusting
6 Commissioning and adjusting Filling and venting the charge coil Filling and venting Filling Filling the hot water heater 1. Open the filling valve (external, not included with the product). Fill the coil in the hot water heater and the 1. -
Page 17: Start-Up And Inspection
Pressure drop diagram, solar coil Start-up and inspection Connection, flow line solar heating system (XL13) and Pressure drop diagram, charge coil connection, return line solar heating system (XL14). Docking connection, flow line (XL8) and docking connec- VPBS 300 tion, return line (XL9). VPB 200 Tryckfall (kPa) -
Page 18: Service
7 Service Emptying Service actions The water heater is emptied through the siphon (with Safety valve hose) in the cold water connection (XL3). The water heater's safety valve sometimes releases a little Drain the charge coil through the siphon (with hose) on water after hot water usage. -
Page 19: Technical Data
8 Technical data Dimensions and setting-out coordinates VPB/VPBS Chapter 8 | Technical data... -
Page 20: Technical Specifications
Technical specifications VPB 200 Copper Enamel Stainless Volume litre Volume, charge coil litre Net weight Heat transfer (60/50 °C at 50 °C hot water temperature) 11.9 11.5 11.5 Heat content at 50°C Equivalent amount of hot water (40°C) litre Heating time (10 °C to 45 °C) 8 kW charge power hours Heating time (10 °C to 80 °C) 8 kW charge power hours... - Page 21 VPBS 300 Copper Enamel Volume litre Volume, charge coil litre Volume, solar coil litre Net weight Heat transfer (60/50 °C at 50 °C hot water temperature) 14.8 13.7 Heat content at 50°C 12.4 12.4 Equivalent amount of hot water (40°C) litre Heating time (10 °C to 45 °C) 8 kW charge power hours...
-
