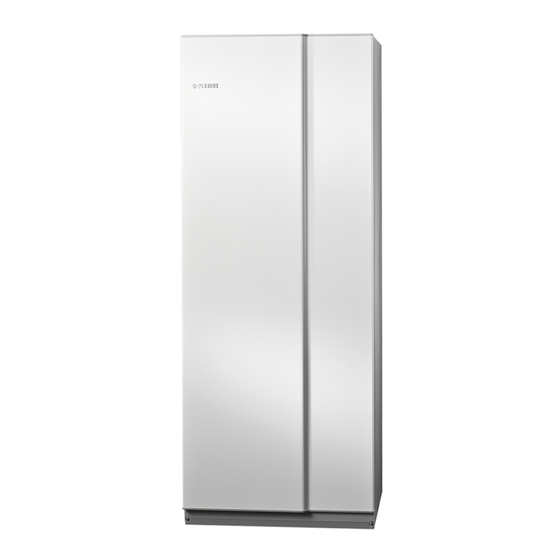

Nibe VPB 200 User And Installation Manual
Water heater accumulator tank
Hide thumbs
Also See for VPB 200:
- Installer manual (24 pages) ,
- Installer manual (28 pages) ,
- User's and installer's manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Nibe VPB 200
Summary of Contents for Nibe VPB 200

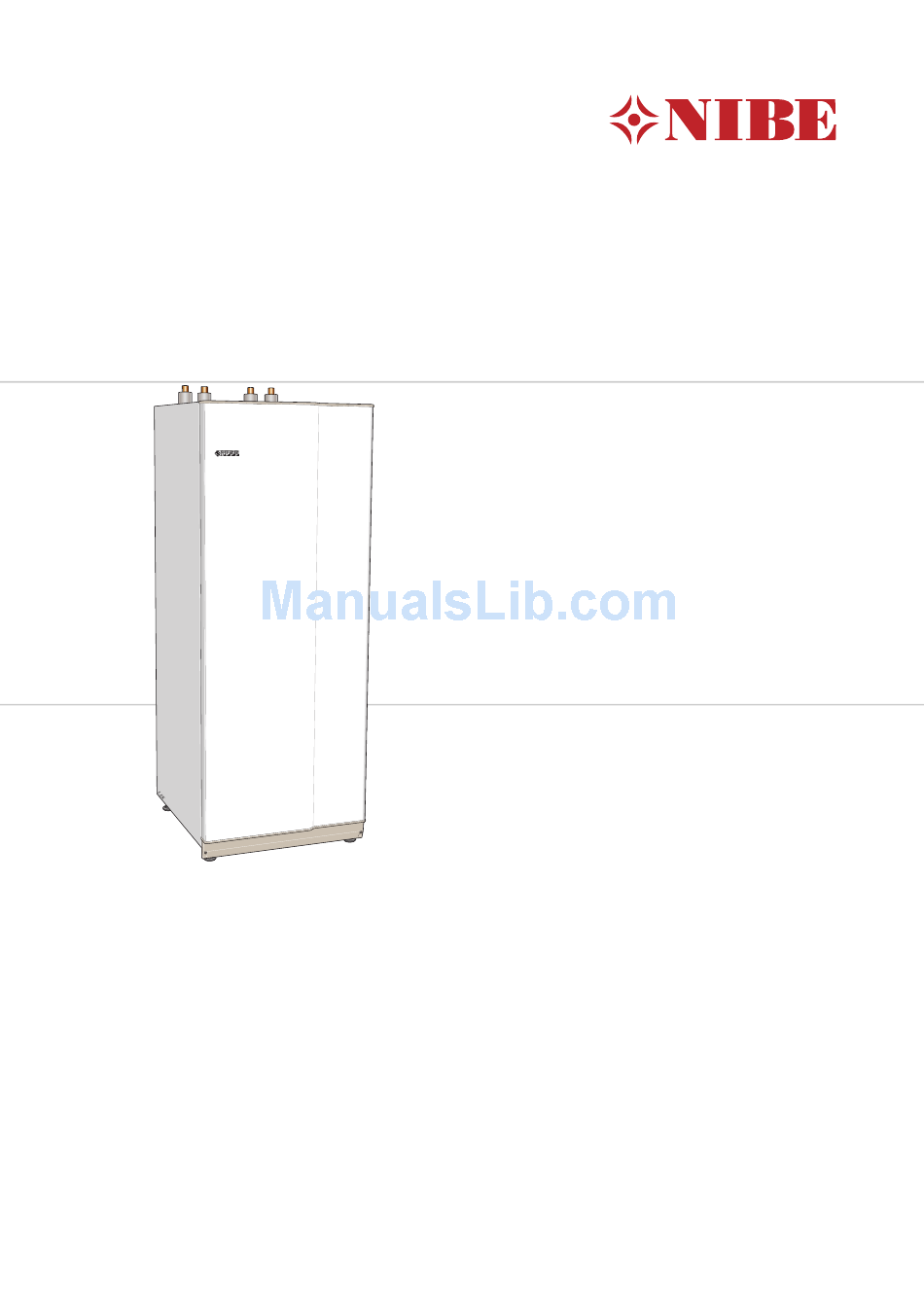

- Page 1 User and Installer manual VPB/VPBS Water heater Accumulator tank CHB GB 1710-1 431320...
-
Page 3: Table Of Contents
Table of Contents 1 Important information 2 For the User 3 For the Installer 4 Technical data Contact information VPB/VPBS Table of Contents |... -
Page 4: Important Information
Improper disposal of the product by the user results in Rights to make any design or technical administrative penalties in accordance with current legis- modifications are reserved. lation. ©NIBE 2017. Country specific information User and Installer manual Symbols This user and installer manual must be left with the cus- tomer. - Page 5 Inspection of the installation Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person. Description Notes Signature Date ✔ Heat pump (page 11) Shut off valves Hot water (page 11) Shut off valves Mixing valve...
-
Page 6: For The User
For service, contact the installer. Serial number (PF3) (14 digits) and installation date should always be stated. Safety valve (not supplied) Only replacement parts supplied by NIBE may be used. The water heater's safety valve sometimes releases a little water after hot water usage. This is because the... -
Page 7: For The Installer
3 For the Installer General Supplied components VPB/VPBS is a series water heater, which is suitable for VPB/VPBS Enamel connection to an external heat source. The water tank has internal copper, stainless steel or enamel corrosion protection. The water heater is equipped with a charge coil that heats the domestic water, resulting in excellent properties for hot water charging. - Page 8 Component positions VPB 200 VPB 300 / VPBS 300 XL5** XL13 XL14 XL5** QM22 QM22 The figure shows VPBS 300 (**Not VPB/VPBS Cu) Chapter 3 | For the Installer VPB/VPBS...
- Page 9 Explanation Pipe connections Connection, cold water Connection, hot water Connection, hot water circulation Docking connection, supply line (from heat pump*) Docking connection, return line (to heat pump*) XL13 Connection, supply line (from solar heating sys- tem) (Only VPBS 300) XL14 Connection, return line (to solar heating system) (Only VPBS 300) HVAC components...
- Page 10 Installation Removing the covers Front cover 1. Remove the screws from the lower edge of the front cover. 2. Lift the cover out at the bottom edge and up. Side panels 1. Remove the screws from the upper and lower edges. 2.
- Page 11 Route the overflow pipe from the safety valve, sloping along its entire length and ensure that it is frost proof. The mouth of the overflow pipe must be visible and not placed close to electrical components. Pipe connections VPB 200/VPB 300 VPBS 300 XL13 XL14 Connection XL3 Cold water Ø...
- Page 12 Cold and hot water are connected to XL3 and XL4 on Further option information is available at www.nibe.eu VPB/VPBS. There must be a mixer valve if the temperat- and in the respective assembly instructions for the heat ure can exceed 60°C.
- Page 13 Symbol key Symbol Meaning Venting valve Shut-off valve Mixing valve Safety valve Temperature sensor Expansion vessel Pressure gauge Circulation pump Particle filter To solar heating system VPBS 300 can be docked to solar heating system. VPB/VPBS Chapter 3 | For the Installer...
- Page 14 Fill the coil in the hot water heater and the rest of the climate system with water. The figure shows VPB 200. 2. Open the vent valve (QM22). 3. When the water that exits the vent valve (QM22) is not mixed with air, close the valve.
- Page 15 Connection, supply line solar heating system (XL13) and Pressure drop diagram, charge coil connection, return line solar heating system (XL14). Docking connection, supply line (XL8) and docking con- VPBS 300 nection, return line (XL9). Pressure drop (kPa) VPB 200 Pressure Tryckfall drop (kPa) (kPa) 0,02 0,04 0,06...
-
Page 16: Electrical Installation
Sensors VPB 200 and VPB 300 can be supplemented with up to two hot water sensors, one for display and one for con- trol. The display sensor is positioned in the submerged... - Page 17 2. Connect the anode cable (W1) to the potentiostat. 3. Connect the potentiostat to a suitable 230 V wall socket. NOTE The cable between the potentiostat and the anode must either be extended or shortened. The figure shows VPB 200 E. VPB/VPBS Chapter 3 | For the Installer...
-
Page 18: Technical Data
4 Technical data Dimensions VPB 300/VPBS 300 VPB 200 Free space for concealed pipe routing Chapter 4 | Technical data VPB/VPBS... - Page 19 Heating time (10°C to 80°C) 8 kW charge power hours Max operating temperature °C Max pressure, primary side bar/MPa 3/0.3 Max pressure, water heater bar/MPa 10/1.0 Compatible NIBE heat pumps F1145-6,8,10,12, F2030-7,9, F2040-8,12,16, F1155-6,12,16, F2120-8,12,16 Height 1500 Required ceiling height 1670 Width Depth Net weight Part No.
- Page 20 Heating time (10°C to 80°C) 8 kW charge power hours Max operating temperature °C Max pressure, primary side bar/MPa 3/0.3 Max pressure, water heater bar/MPa 10/1.0 Compatible NIBE heat pumps F1145-6,8,10,12, F2030-7,9, F2040-8,12,16, F1155-6,12,16, F2120-8,12,16 Height 1800 Required ceiling height 1950 Width Depth Net weight Part No.
- Page 21 Heating time (10°C to 80°C) 8 kW charge power hours Max operating temperature °C Max pressure, primary side bar/MPa 3/0.3 Max pressure, water heater bar/MPa 10/1.0 Compatible NIBE heat pumps F1145-6,8,10,12, F2030-7,9, F2040-8,12,16, F1155-6,12,16, F2120-8,12,16 Height 1800 Required ceiling height 1950 Width Depth Net weight Part No.
-
Page 23: Contact Information
Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. - Page 24 WS name: -Gemensamt WS version: a377 (working edition) Publish date: 2017-05-18 09:42 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 431320...
