REPLACEMENT PARTS
FLAIL BLADES
P/N 350186.
A complete replacement set. 52
of our high quality flail blades for
your PR. Includes 8 new lock
clips for replacement installa-
tion.
FLAIL SHAFTS
P/N 350185.
A full set of four shafts for
replacement. Includes 8 new
lock clips for replacement
installation.
Note: We recommend
replacing the shafts when you
replace flails.
DRIVE BELT
P/N 350116.
Original Equipment drive belt for
your PR.
SPACER BUMPERS
P/N 350258.
A complete replacement set.
44 of 1/2" spacer bumpers
and 4 of 1/4" spacer bumpers
ACCESSORIES
SLICING REEL
P/N 350113.
A complete verti-slicing reel for
your PR. 20" wide reel for use
in grasses that require vertical
cutting, and for assisting in lawn
overseeding projects.
SLICING BLADES
P/N 350187.
A full set of twenty blades for
replacement. Includes 40 new
capscrews, and lock nuts for
replacement installation.
OVERSEEDER KIT
P/N 350281 / 350282.
The new Overseeding Kit is
constructed of all 12 gauge
steel with two lift handles on
each side to assist in lifting the
entire unit and easily converts a
PR Series Power Rake into an
overseeder with 4 bolts and
minimal tools.
NOTE: Overseeder Conversion
Kit (350282) includes Slicing
Reel (350113). Part No.
(350281) comes with the
Overseeder Box only.
Part No. 350177
1
T h a n k Y o u f o r S e l e c t i n g

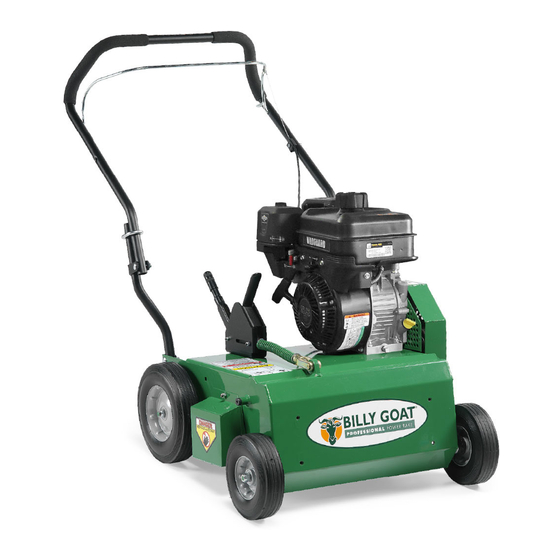

The Powerful PR and OS
POWER RAKES and OVERSEEDERS
Operator Owner's Manual
PR550, PR550H, PR550V,
PR550HV, OS550, OS550H
3
PR550
ENGINE: H.P.
5.5 (4.1 kW)
ENGINE: TYPE
B&S OHV
ENGINE: FUEL CAP.
3.0 qt. (2.84 L)
ENGINE: OIL CAP.
0.66 qt. (0.62 L)
WEIGHT: UNIT
160# (72.5 kg)
WEIGHT: SHIPPING
183# (83.0 kg)
ENGINE WEIGHT:
36# (16.3 kg)
MAX. ENGINE OPERATING SLOPE
15°
Page 1 of 16

Specifications

PR550V
PR550H
PR550HV
5.5 (4.1 kW)
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.6 L)
3.88 qt. (3.6 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
0.69 qt. (0.65 L)
163# (74.1 kg)
158# (71.8 kg)
161# (73.2 kg)
183# (83.0 kg)
178# (80.9 kg)
178# (80.9 kg)
36# (16.3 kg)
34# (15.4 kg)
34# (15.4 kg)
15°
20°
20°
OS550
OS550H
5.5 (4.1 kW)
5.5 (4.1 kW)
B&S OHV
HONDA OHV
3.0 qt. (2.84 L)
3.88 qt. (3.6 L)
0.66 qt. (0.62 L)
0.69 qt. (0.65 L)
206# (93.4 kg)
204# (92.5 kg)
229# (104.1 kg)
230# (104.5 kg)
36# (16.3 kg)
34# (15.4 kg)
15°
20°
Form No. F021604B
