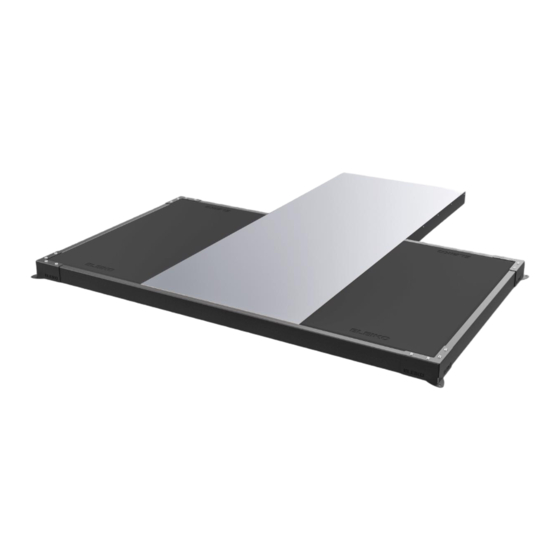

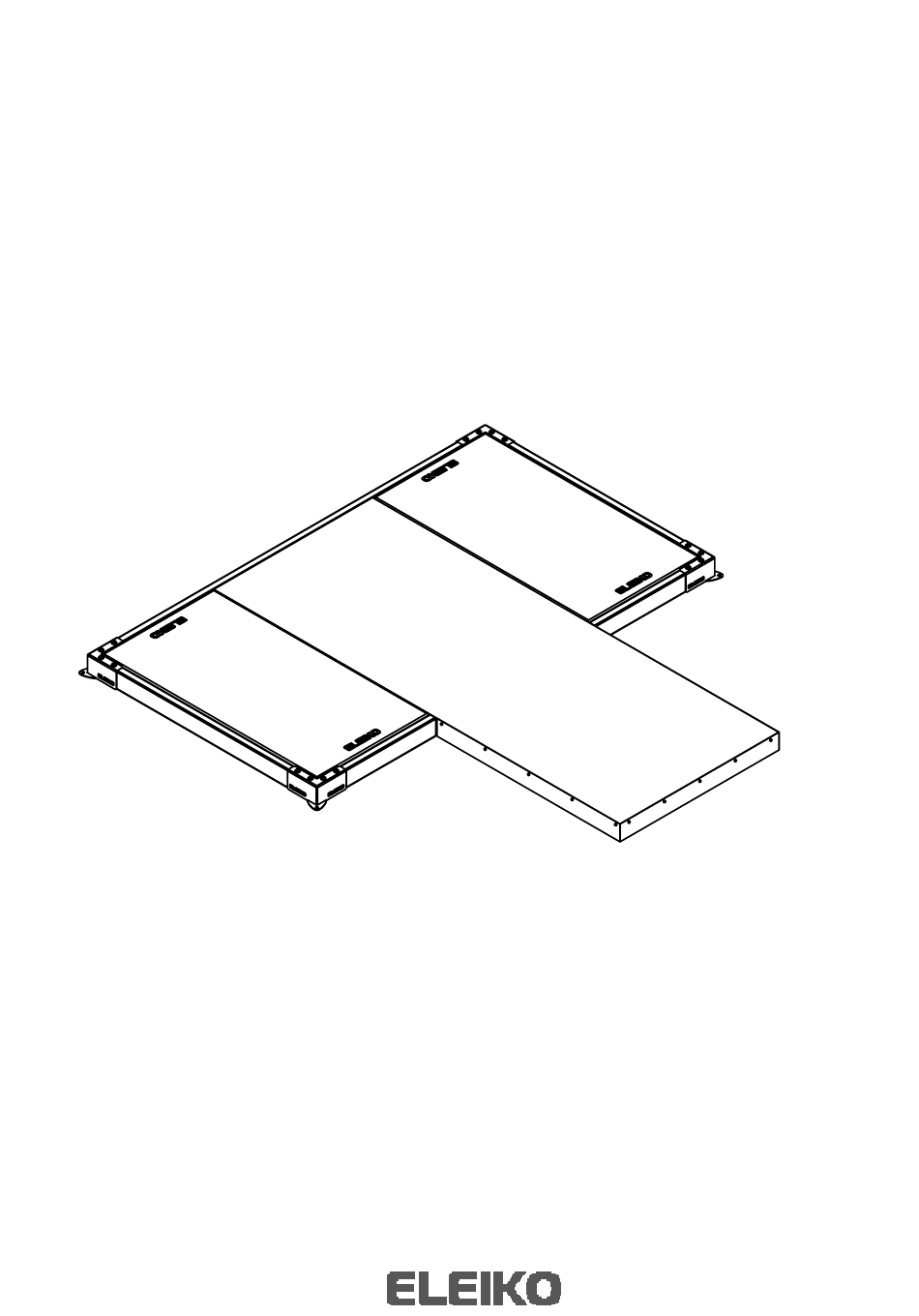

- Page 1 ELEIKO SVR PLATFORM Classic Line - small Art.no. 3061381...
- Page 3 Attach the corners to floor with appropriate fasteners. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
-
Page 4: Product Specification
PRODUCT SPECIFICATION Weightlifting training platform. For indoor use only. Product weight 276 kg / 608 lbs 2565x2470x100 mm Dimensions (L x W x H) 101x97.2x3.9 in FOOTPRINT AND FREE AREA Add sufficient clearance, not less than 1.5 m (59 in), on all sides. - Page 5 CONTENTS 3001400 Foam 2000x975x70 mm wooden plate Foam BLACK Foam 666x695x70 mm Foam 500x975x70 mm 666x695x12,7 mm insert cover front Art.no: 2000803 corner rubber tile insert cover side tube back tube side front tube bracket Screw M10x25 Art.no: 2001344 Plate 2001124-L25 Wood screw 5x30 3085497...
-
Page 6: Required Tools
REQUIRED TOOLS Torx wrench Screw driver TX 50 Phillips... - Page 7 ASSEMBLY INSTRUCTIONS Screw M10x25 corner bracket 2001124-L25 Loose screws!
- Page 8 Foam 2000x975x70 mm Foam 500x975x70 mm front tube OBS!
- Page 9 Foam Foam BLACK 666x695x70 mm 666x695x12,7 mm...
- Page 10 3001400 Plate 2000803 Art.no: 2001344 3085497 wooden plate rubber tile Wood screw 5x30...
- Page 11 side tube back tube corner assys...
- Page 12 Tighten frame and screws!
- Page 13 insert cover wood screw insert cover front L=30 side...
- Page 14 Ver 2022-01-10...
- Page 16 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
