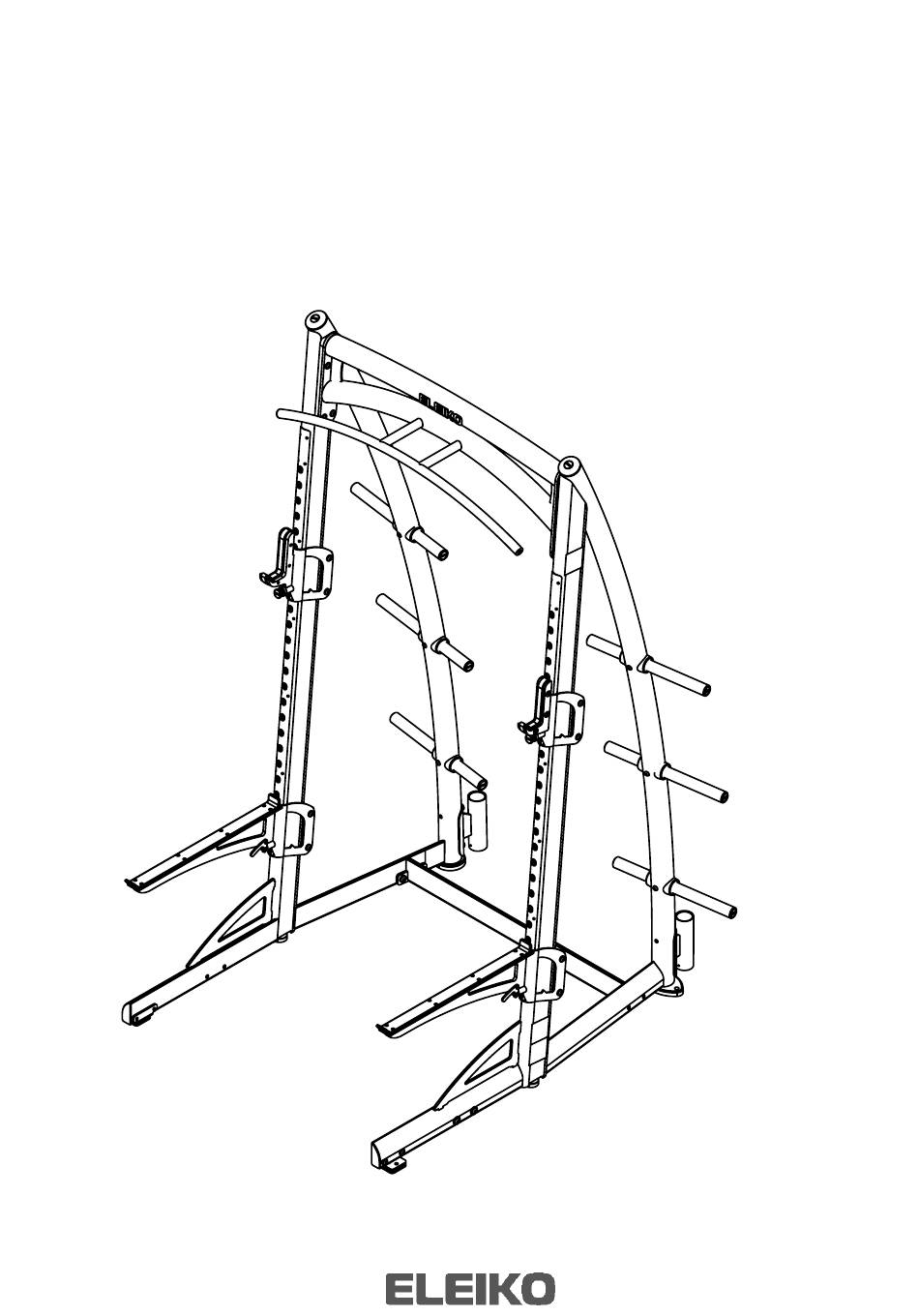

- Page 1 ELEIKO ATLETICA HALF RACK Art.nr 3085102...
- Page 2 Always use safety gloves to protect hands from sharp edges. SAFETY INSTRUCTIONS It is the responibility of the purchaser of ELEIKO products to instruct all users and supervising personnel on proper usage of the equipment. 1. All included warnings (labels) and instructions MUST be read before the use of any ELEIKO-equipment.
-
Page 3: Product Specifications
PRODUCT SPECIFICATIONS Half rack with safety arms for freeweight training with barbell. Can be used for exercises like squats, bench press etc. where you normaly need a spotter. For indoor use only. 150 kg Product weight 330 lbs 275 kg Max training weight 600 lbs Dimensions (L x W x H) - Page 4 CONTENTS Rubber Foot, Black Top Support Beam Right Gable Left Gable Art No 2000740 Art No 3085102 a1 Chin Bar, Weldment Bar Storage Half Rack Bottom Support Beam Art No 3085102 a8 Art No 3085102 a15 Art No 3085102 a7...
-
Page 5: Required Tools
REQUIRED TOOLS Allen Key Size 6 Spanner 16mm + 18mm Allen Key Size 8 (M10) (M12) GENERAL The table below is general torque to use for different threads. Use these torques, if nothing else is set. Below numbers are for screw/nut of quality 8.8. TORQUE (Nm / ftlb) THREAD Quality 8.8... - Page 6 ASSEMBLY INSTRUCTIONS Bottom Support Beam Top Support Beam Left Gable Art No 3085102 a7 Art No 3085102 a1 Washer M10 BRB Washer M12 BRB K6S M10 x 20 Screw K6S, M12 x 25 Art No 2000719 Art No 2000744 Art No 2000675-L20...
- Page 7 Washer M12 BRB Screw K6S, M12 x 25 Right Gable Art No 2000744 Art No 2000743-L25 Washer M10 BRB K6S M10 x 20 Art No 2000719 Art No 2000675-L20 M10 x 20 M12 x 25...
- Page 8 Raise the rack to upright position. Make sure the area around the rack is free! Minimum two persons lifting.
- Page 9 Disc Storage Chin Bar, Weldment Art No 3061390 p31 Art No 3085102 a8 K6S M10 x 25 Rubber Stop ID 37 K6S M10 x 30 Art No 2000675-L25 Art No 2000684 Art No 2000675-L30 K6S M10 x 25 Chin Bar...
- Page 10 Screw M6S M12 x 25 Bar Storage Half Rack Art No 2000750-L25 Art No 3085102 a15 Screw M6S M12 x 25 Bar Storage...
- Page 12 Eleiko Group AB | Klastorpsvägen 18 | SE-302 62 HALMSTAD | Sweden E-mail: info@eleiko.com | Phone: +46 35 17 70 70 www.eleiko.com...
