AN4938 Power supplies

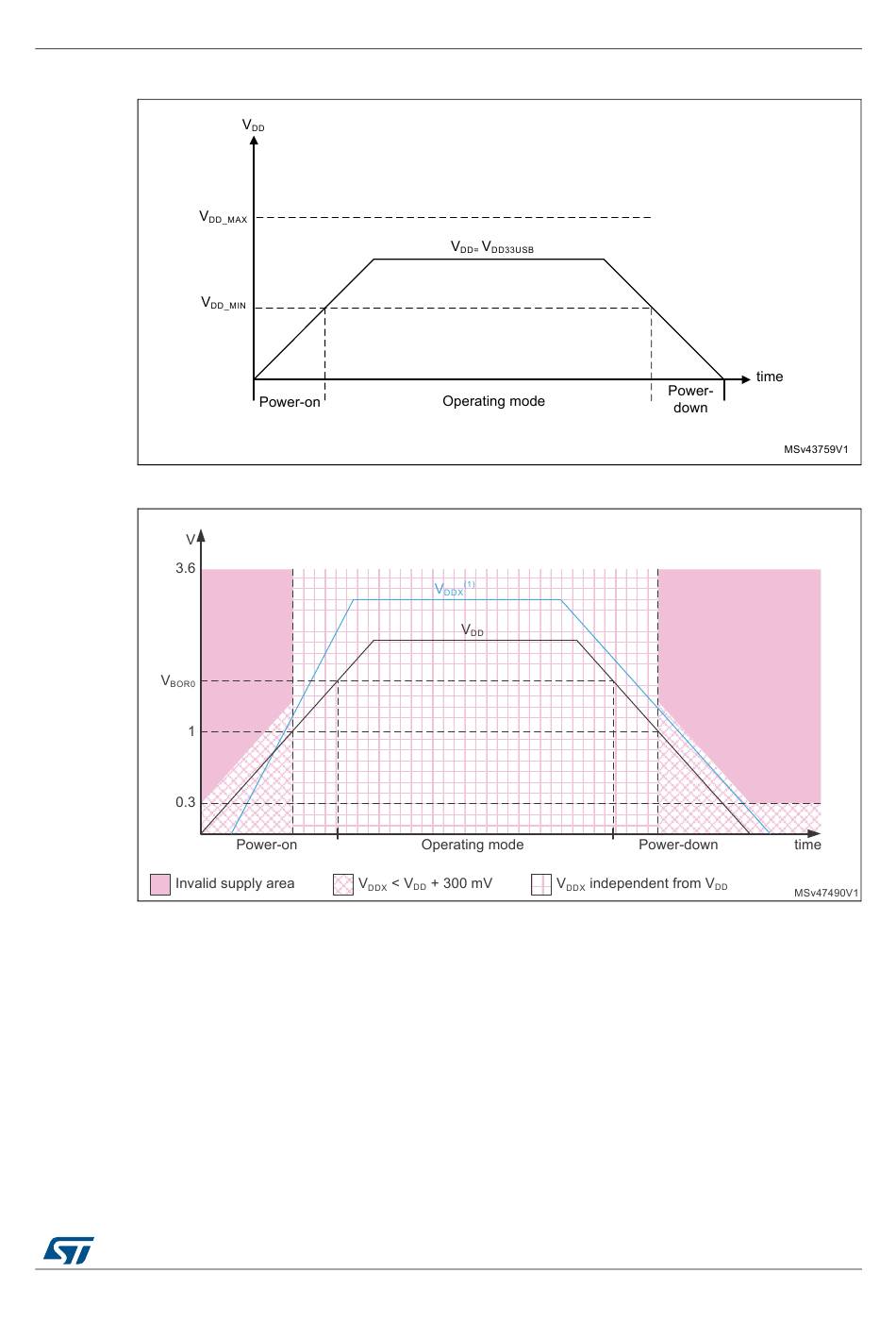

Figure 1. VDD33USB connected to V power supply
DD
Figure 2. VDD33USB VDD50USB connected to external power supply
/
1. V can be any power supply voltage among V , V , V and V .
DDx DDA DD33USB DD50USB DDDSI
2. If the SMPS is available, V and V must be wired together to follow the same voltage sequence.
DD DDSMPS
