Taurus FS10.5 Pro Assembly And Operating Instructions Manual page 14

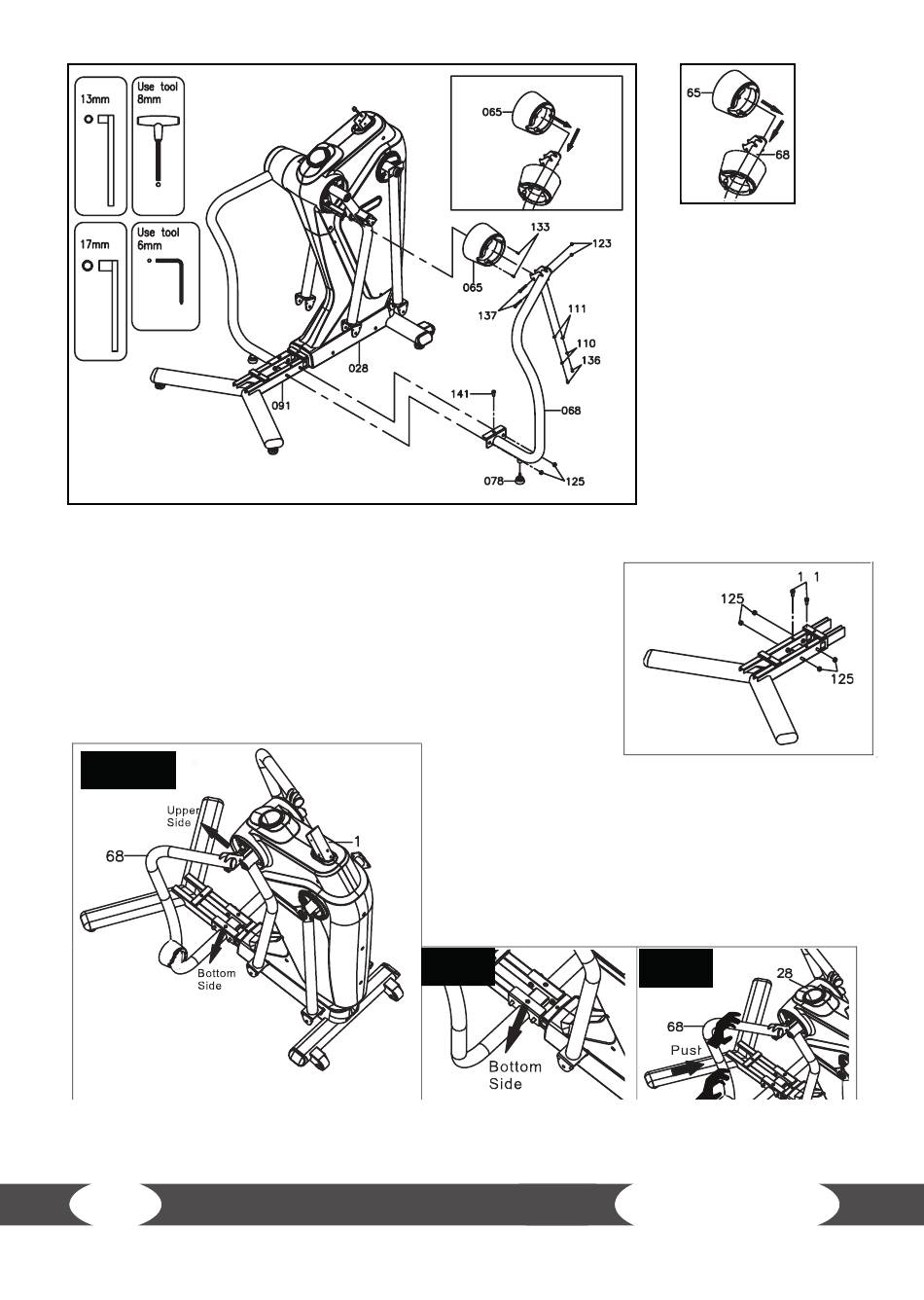

Step 5:
Remove the two bolts (141) and four nuts (125) from the base frame (91).
Step 6:
a. Place the upper end of the right stationary handrail (68) on the main
frame (28).
b. Place the lower end of the right stationary handrail (68) on the base
Step a., b.
14
frame (91).
c. Please make sure
that the drill holes of the right stationary handrail (68)
align with the threads of the base frame (91).
d. Now gently push the upper end of the right stationary
handrail (68) towards the main frame (28).
e. Repeat these steps on the left side.
Step c.
Step 4:
Note:
The inner handrail covers
(64, 65) are marked with an
R (right) and an L (left).
a. Slide the right inner
handrail cover (65) onto
the right stationary
handrail (68).
b. Repeat this step on the
left side.
4
Step d.
FS10.5 Pro
