RS485 and RS232 Interfaces

5 RS485 and RS232 Interfaces
The frequency inverter can be controlled from a PLC or another master device via a serial interface
using the Modbus or VABus protocol. The VABus protocol is required for the parameterization with the
VPlus PC-Software.

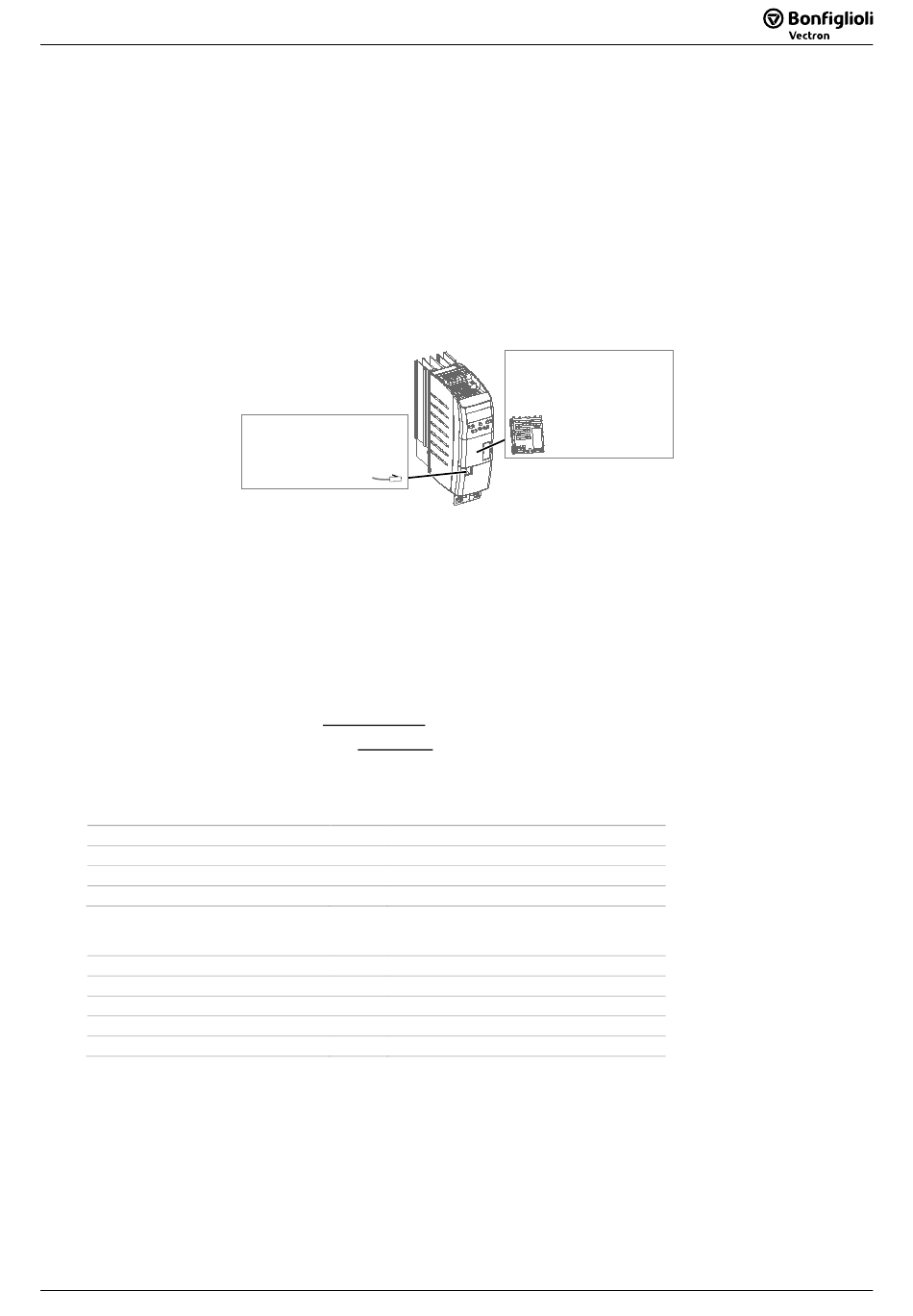

The connection can be established via the RJ45-Connector of the X21-Connection or via an optional
communication module.
The following protocols can be selected:
− Modbus RTU
− Modbus ASCII
− VABus
The communication with the VABus-Protocol can be established via:
− the RJ45-Connector of the X21-Connection
− the CM-232 Communication Module with RS232-connection using a 9-pin D-Sub connector
− the CM-485 Communication Module with RS485-connection using a 9-pin D-Sub connector
− the CM-485T Communication Module with RS485-connection using a 7-pin terminal socket
The VABus communication is possible either via the RJ45-Connector of the X21-Connection or via an
optional Communication Module. Simultaneous Modbus communication via the X21-Connection and an
optional Communication Module is not possible
Simultaneous VABus communication
tion Module.
Possible Combinations of VABus with Modbus:
Communication Module
Modbus (RTU or ASCII)
VABus
VABus
Combination Options with the Scope Function:
Communication Module
VABus
Scope Function (VABus)
Scope Function (VABus)
Modbus (RTU or ASCII)
The Scope Function is started via the VPlus PC-Software. The Scope Function cannot be started via
VPlus and an optional Communication Module at the same time.
The baud rates for the X21-Connection and the Communication Module can be set separately.
Note:
This document is not basic information for the RS232 or RS485 serial interface. Fundamental know-
ledge of the VABus protocol and the RS232 and RS485 serial interfaces is a prerequisite.
06/2010
X21-Connection
- Modbus (RTU/ASCII)
- VABus
RJ45
is possible via the X21-Connection and an optional Communica-
X21 (RJ45)
and VABus
and Modbus (RTU or ASCII)
and VABus
X21 (RJ45)
and Scope Function (VABus)
and VABus
and Modbus (RTU or ASCII)
and Scope Function (VABus)
VABus Agile
Communication Module
- Modbus (RTU/ASCII)
- VABus
CM-232 (DB9)
CM-485 (DB9)
CM-485T
.
