Description

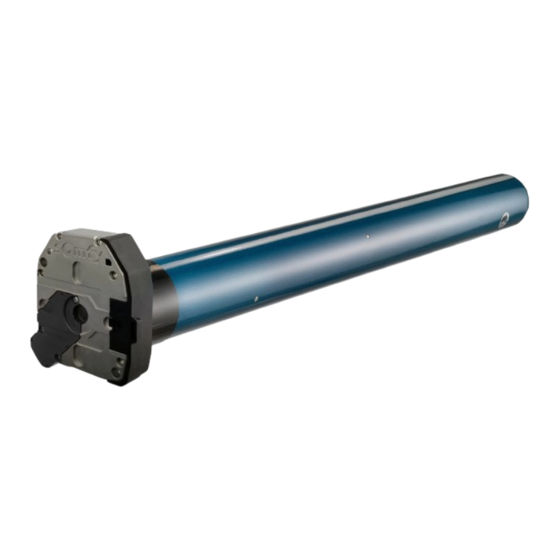

The LT RTS CMO is designed for rolling blinds, awnings, and shutters.
The LT RTS CMO must be programmed with the Inteo family of transmitters.
The LT RTS CMO motors are compatible with a SOLIRIS and EOLIS RTS SENSORS.
Important Installation Tips
A.
For initial programming provide power only to the motor being programmed.
B.
All motor feedback (previously audible "beeping") is now replaced by a visual jog. A jog is a short Up & Down movement of the motor
(0.5 second turn of the motor in each direction).
C. The LT RTS CMO motor in Factory Mode will not respond to any transmitter (as it did previously with RTS Motors) until a transmitter is
assigned to communicate with the motor's receiver. To assign a transmitter press its UP & DOWN buttons simultaneously until the motor jogs.
D. Before pressing the programming button on the transmitter, verify the motor directions (if DOWN on the transmitter corresponds to DOWN on
the end-product) and set the end limits of the motor. Refer to section 4.3 of this instruction.
E. The motor is packaged in "FACTORY MODE", and will remain in this mode until the programming button on the transmitter is pressed, thus
putting it into "USER MODE". ROTATION DIRECTION CAN ONLY BE MODIFIED IN "FACTORY MODE".
F. A double power cut cannot be achieved if the motor is still in FACTORY or INSTALLER Mode. First program a transmitter into the memory
of the motor.
G.
WARNING: For the EOLIS/SOLIRIS RTS SENSOR to function properly, the transmitter which is memorized into the motor's receiver must be
configured correctly. The DOWN button MUST correspond to DOWN on the end-product. In the case of an awning, it will open or extend the awning.
If the UP button extends the awning, the wind sensor will also extend the awning during windy conditions. THIS IS DANGEROUS! Damage and injury
could occur. Do not proceed until proper operation of the transmitter is verified.
1
Power Supply
A. All wiring must conform to NEC (National Electrical Code) and local codes.
B. The LT RTS CMO motors can be wired in PARALLEL.
A means of disconnecting the power at each motor independently should
be provided.
C. Power only needs to be supplied to the motor. The receiver is completely
enclosed inside the motor tube.
D. The antenna is internal to the motor.
E. SOMFY Reserves the right to void the motor warranty if wiring
recommendations are not followed.
2
Transmitters
Pictured below are all compatible controls
Motor's memory capacity with Telis, Decora RTS, Telis Soliris: maximum of 12 transmitters
plus an additional 3 RTS sensors.
The Master Channel on a 4 channel transmitter can be used as an additional individual
channel for a total of 5 channels, without the option of master control of all motors
Range: Up to 65 feet from the motor
SOLIRIS SENSOR RTS
-
+
-
+
PROGRAMMING
BUTTON
LT RTS CMO MOTOR
Programming and Limit Setting Instructions
120 VAC / 60 Hz
EOLIS SENSOR RTS
DECORA RTS 1
DECORA RTS 4
SWITCH
SWITCH
MOTOR WIRING
COLOR CODE
120 VAC
CODE
BLACK
HOT
WHITE
NEUTRAL
GREEN
GROUND
SIDE
PROGRAMMING
BUTTON
TELIS 1 RTS
TRANSMITTER
HOT
NEUTRAL
GROUND
GREEN
TELIS 1 RTS
4 INDIVIDUAL CHANNELS
1 CHANNEL
& 1 MASTER CHANNEL
UP
STOP
DOWN
CHANNEL
INDICATOR
LED
1.8in/45mm
TELIS 4 RTS
TELIS SOLIRIS RTS
TRANSMITTER
TRANSMITTER
TELIS 4 RTS
CHANNEL
SELECTOR
SIDE
0.7in
/17
mm
BACK
PROGRAMMING
BUTTON
