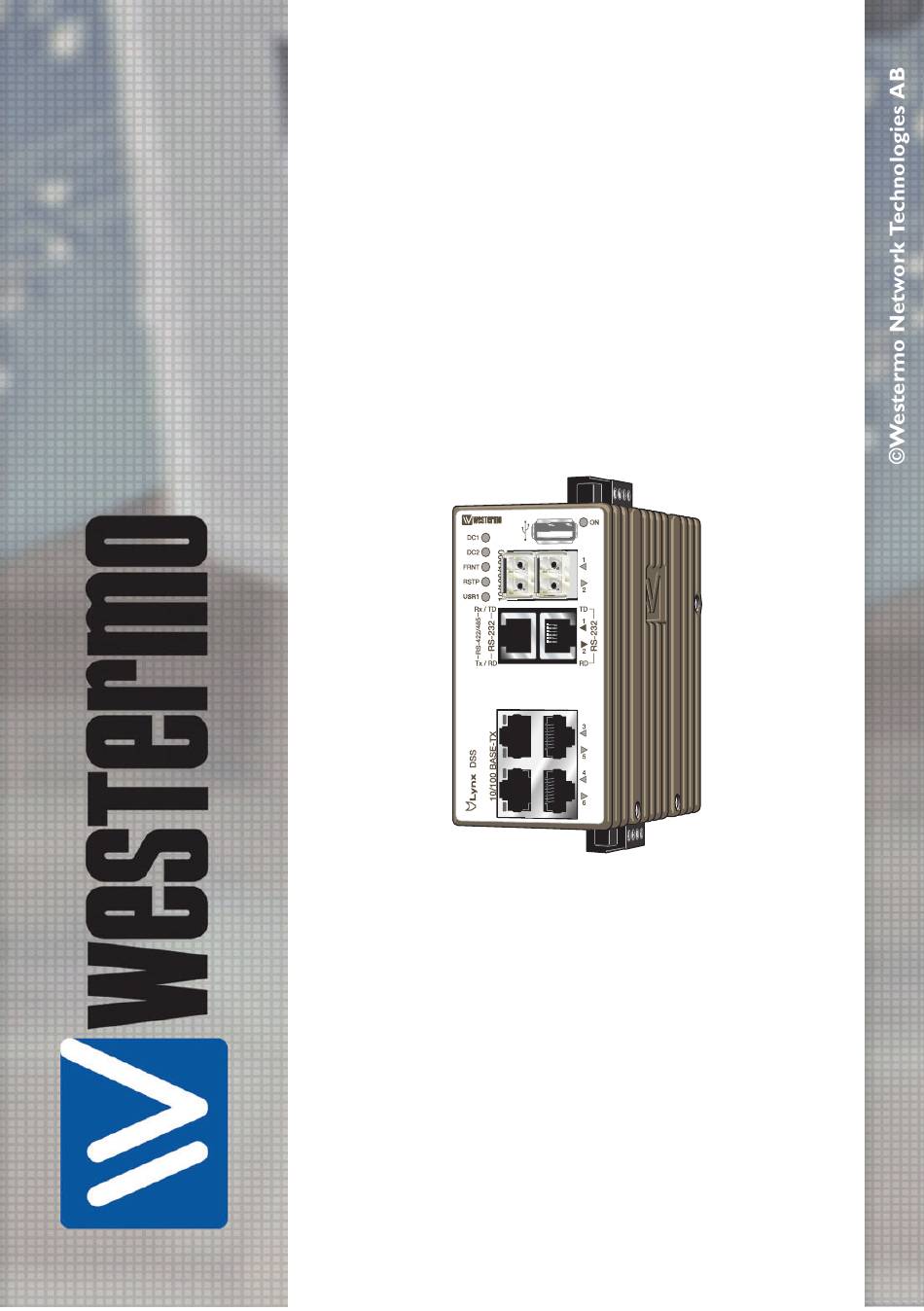

- Page 1 User Guide 6643-2220 REV. L Lynx L108-F2G-S2 and L208-F2G-S2 Industrial Ethernet 8-Port Device Server Switch www.westermo.com...
-
Page 2: Table Of Contents
4.2. Removal of Product ............. 18 4.3. Cooling ................19 4.4. Getting Started ..............19 4.5. Configuration Via a Web Browser ..........20 4.6. Factory Default ..............20 5. Specifications ................22 5.1. Interface Specifications ............22 Lynx L108-F2G-S2 and L208- F2G-S2... - Page 3 5.2. Type Tests and Environmental Conditions ......... 25 6. Revision Notes ................28 Lynx L108-F2G-S2 and L208- F2G-S2...
-
Page 4: General Information
Westermo reserves the right to revise this document or withdraw it at any time without prior notice. Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused. -
Page 5: Safety And Regulations
Minor damage to the to avoid misuse of the product product, confusion or misunderstanding NOTICE Used for highlighting general, No personal injury Minor damage to the but important information product NOTE Table 1. Warning levels Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 6: Safety Information
Touch Temperature Limit according to EN/IEC/UL 60950-1. NOTICE - REDUCE RISK OF FIRE To reduce the risk of fire, use only No. 26 (e.g. 24 AWG) UL listed or CSA certified Telecommunication Line Cord. Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 7: Care Recommendations
• Do not use harsh chemicals, cleaning solvents or strong detergents to clean the product. • Do not paint the product. Paint can clog the product and prevent proper operation. If the product is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. -
Page 8: Compliance Information
If the product is placed in a corrosive environment, it is important that all unused connector sockets are protected with a suitable plug, in order to avoid corrosion attacks on the gold plated connector pins. Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 9: Simplified Declaration Of Conformity
2.6.4. Simplified Declaration of Conformity Hereby, Westermo declares that this product is in compliance with applicable EU directives. The full EU declaration of conformity and other detailed information is available at www.westermo.com/support/product-support. Figure 2. The European conformity marking Lynx L108-F2G-S2 and L208-... -
Page 10: Product Description
(-40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx DSS has been tested both by Westermo and external test institutes to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications. -
Page 11: Hardware Overview
Ethernet connection RS-232 connection RS-232 and RS-422/485 connection Figure 3. Location of interface ports and LED indicators Description Description I/O connection Console port Accessorie cable, art. no. 1211-2027 Figure 4. Location of interface ports, bottom view Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 12: Connector Information
Product marking Direction Description Status + Output Alarm relay (status) contact Status - Output Alarm relay (status) contact Digital in + Input Digital in + Digital in - Input Digital in - Table 5. I/O connection Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 13: Rs-232 Connection (Dce)
Signal Direction Description Data Set Ready Data Carrier Detect Data Terminal Ready Signal Ground, not chassis ground Receive Data Pin 8 Pin 1 Transmit Data Clear To Send Request To Send Table 6. RS-232 connection Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 14: Rs-422/485 Connection
Lynx is equipped with with an internal termination that is configurable through software in RS-422/485 mode. The following termination schemes are supported: No termination Terminate Rx Terminate Tx Terminate Tx and Rx Figure 6. RS-422 termination scheme No termination Termination Figure 7. RS-485 termination scheme Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 15: Usb Connection
NOTE - The port is configurable for both RS-232 and RS-422/485, hence no fail-safe biasing is available for RS-422/485 signals. 3.4.6. USB Connection Illustration Direction Description VBUS In/Out In/Out In/Out Connected to protective earth Table 8. USB connection Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 16: Led Indicators
Serial data transmitted FLASH 1 to 6 No link GREEN Link established GREEN Data traffic indication FLASH YELLOW Port alarm and no link. Or if FRNT or RSTP mode, port is blocked. Table 9. LED indicators Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 17: Sfp Transceivers
3.6. SFP Transceivers 3.6.1. Supported Transceivers Firmware prior to 4.4.0 accepts Westermo branded transceivers only. From 4.5.0 other transceivers are accepted with a notice and the product will no longer be UL approved. Temperature specifications are also depending on the used transceivers. -
Page 18: Installation
Snap on the product to the DIN-rail according to the figure. Figure 9. Mounting of product 4.2. Removal of Product To remove the product that has an integrated DIN-clip, press down the support at the back with a screwdriver. Figure 10. Removal of product Lynx L108-F2G-S2 and L208- F2G-S2... -
Page 19: Cooling
This product runs the Westermo Operating System (WeOS) which provides several management tools that can be used for configuration of the unit. • WeConfig tool This is a custom Westermo tool used for discovery of attached Westermo product. • Web Configuration of the product using the web browser. -
Page 20: Configuration Via A Web Browser
To go ahead with factory reset: NOTE Do not power off the product while the factory reset process is in progress. Lynx L108-F2G-S2 and L208- F2G-S2... - Page 21 • To skip the factory reset process, just wait for approximately 30 seconds (after the ON LED starts flashing RED) without unplugging the Ethernet cables. The product will conduct a normal boot with the existing settings. Lynx L108-F2G-S2 and L208- F2G-S2...
-
Page 22: Specifications
Full or half, manual or auto Circuit type TNV-1 Transmission range Up to 150 m with CAT5e cable or better Isolation All other ports Connection RJ-45, auto MDI/MDI-X Cabling Shielded CAT5e or better is recommended Conductive chassis Number of ports Lynx L108-F2G-S2 and L208- F2G-S2... - Page 23 To minimise the risk of interference, a shielded cable is recommended when the cable is located inside 3 m boundary or the cable is longer than 30 m and inside 10 m boundary to the rails and connected to this port. Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 24 Only to be used during maintenance.) Data rate 115.2 kbit/s Circuit type SELV Data format 8 data bits, no parity, 1 stop bit, no flow control Connection 2.5 mm jack, use only Westermo cable 1211-2027 Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 25 Serial ports Earth port Radiated RF emission CISPR 16-2-3 Enclosure Class B/DNV bridge ANSI C63,4 (FCC Part 15) Conducted RF emission CISPR 16-2-3 Power port Class B/DNV bridge ANSI C63,4 Ethernet Class B (FCC Part 15b) Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 26 Power port to all 1.5 kVrms, 50 Hz, 1 min other ports Ethernet ports to all other ports RS-322 port to all other ports RS-422/485 port to all other ports Table 10. EMC and electrical conditions Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 27 Degree of protection EN 60529 Enclosure IP40 Cooling Convection Refer to "Safety and Regulations" chapter regarding touch temperature Might require Ethernet cables to be fastened close to the unit. Table 11. Environmental and mechanical conditions Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 28 6. Revision Notes Revision Date Change description Rev. L 2019-04 Added product L108-F2G-S2-12VDC and references to it - frontpage, 2.6.1 Agency approvals and Standards Compliance, 3.1 Product Description, 5.1 Interface Specifications, 5.2 Type Tests and Environmental Conditions Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 29 Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 30 Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 31 Lynx L108-F2G-S2 and L208- F2G-S2...
- Page 32 Westermo • SE-635 35 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com 6643-2220 REV. L 2019 04 Westermo Network Technologies AB, Sweden...
