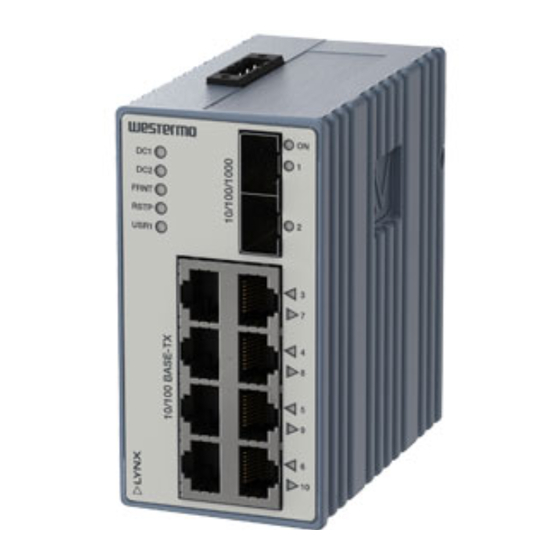

Westermo Lynx L110 User Manual

Westermo Lynx L110 User Manual

Industrial ethernet 10-port switch
Hide thumbs Also See for Lynx L110:

Advertisement

Quick Links

www.westermo.com
Lynx L110/ L210
Industrial Ethernet 10-port Switch
WeOS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lynx L110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Westermo Lynx L110

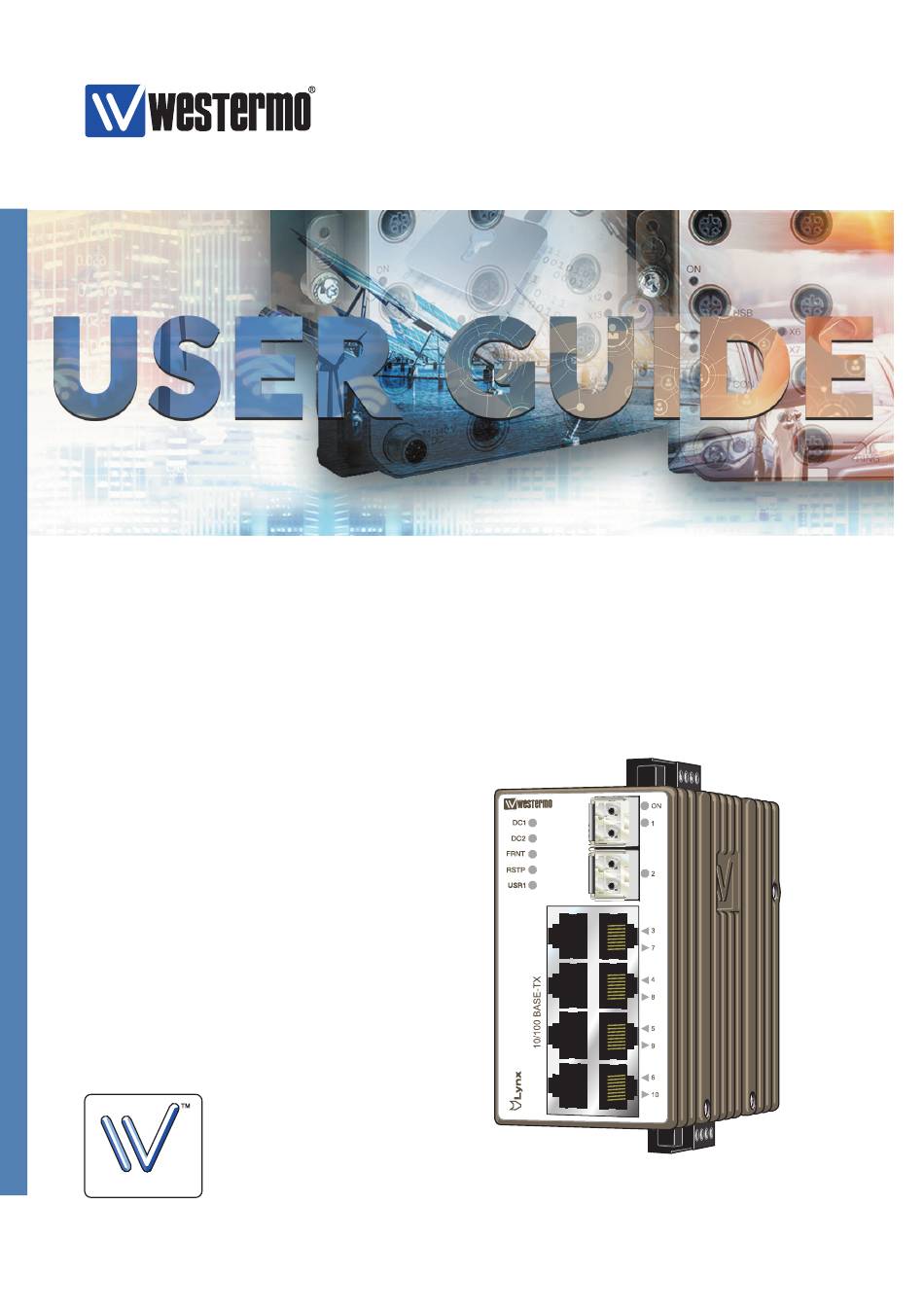

  • Page 1 Lynx L110/ L210 Industrial Ethernet 10-port Switch WeOS...
  • Page 2 6643-2213...
  • Page 3: General Information

    Under no circumstances shall Westermo be responsible for any loss of data or income or any special, incidental, and consequential or indirect damages howsoever caused.
  • Page 4: Safety Information

    Safety information Before installation: Read this manual completely and gather all information on the unit. Make sure that you understand it fully. Check that your application does not exceed the safe operating specifications for this unit. This unit should only be installed by qualified personnel. This unit should be built-in to an apparatus cabinet, or similar, where access is restricted to service personnel only.
  • Page 5: Maintenance

    • Do not cover or bring mechanical force to the ventilation membrane on the back of the unit. If the unit is not working properly, contact the place of purchase, nearest Westermo distributor office or Westermo Tech support. Maintenance No maintenance is required, as long as the unit is used as intended within the specified conditions.
  • Page 6: Simplified Eu Declaration Of Conformity

    Simplified EU declaration of conformity Hereby, Westermo declares that the equipment is in compliance with EU directives. The full EU declaration of conformity and other detailed information are available at the respective product page at www.westermo.com. . Agency approvals and standards compliance...
  • Page 7: Type Tests And Environmental Conditions

    Type tests and environmental conditions Environmental phenomena Basic standard Description Test levels EN 61000-4-2 Enclosure Contact: ±6 kV Air: ±8 kV Fast transients EN 61000-4-4 Power port ±2 kV Signal ports ±2 kV Earth port ±1 kV Surge EN 61000-4-5 L-E: ±0.5 kV, 12 Ω, 9 μF Power port L-L: ±0.5 kV, 2 Ω, 18 μF...
  • Page 8 Environmental Temperatures EN 60068-2-1 Operating Lx10-F2G: -40 to +70°C (-40 to +158°F)* EN 60068-2-2 Lx10-F2G-12VDC: -40 to +74°C (-40 to +158°F)* Storage and transport -50 to +85°C (–58 to +185°F) Humidity EN 60068-2-27 Operating 5 to 95 % relative humidity Storage and transport 5 to 95 % relative humidity Altitude Operating...
  • Page 9 Description Lynx is an Industrial switch made for harsh enviroments. The switch can be used in ether 100 Mbit or Gigabit networks due to our multi-rate SFP solution. Lynx can also be used together with our previous Lynx-series of switches. Our unique FRNT (Fast Recovery of Network Topology) technology is the fastest protocol on the market to re-configure a network in the event of any link or hardware failure.
  • Page 10: Interface Specifications

    Interface specifications Power Rated voltage Lx10-F2G: 24 to 48 VDC Lx10-F2G-12VDC: 12 to 48 VDC Operating voltage Lx10-F2G: 19 to 60 VDC Lx10-F2G-12VDC: 9.8 to 60 VDC Rated current Lx10-F2G: Lx10-F2G-12VDC: 240 mA @ 24 VDC 420 mA @ 12 VDC 120 mA @ 48 VDC 220 mA @ 24 VDC 115 mA @ 48 VDC...
  • Page 11: Sfp Transceivers

    2.5 mm jack, use only Westermo cable 1211-2027 SFP Transceivers Supported transceivers Firmware prior to 4.4.0 accepts Westermo branded transceivers only. From 4.5.0 other transceivers are accepted with a notice and the unit will no longer be UL approved. Temp.specifications are also depending on the used transeivers.
  • Page 12: Location Of Interface Ports And Leds

    The following steps needs to be taken 1. Connect the serial diagnostic cable to the console port (use only Westermo cable 1211-2027). 2. Connect cable to your computer (USB port, if drivers are needed they can be downloaded from our Web page).
  • Page 13: Power Connection

    Power connection 4-position Product marking Direction Description No. 1 +DC1 Input Supply voltage input DC1 No. 2 +DC2 Input Supply voltage input DC2 No. 3 -COM Input Common No. 4 -COM Input Common Lynx supports redundant power connection. The positive inputs are +DC1 and +DC2, the negative input for both supplies are –COM.
  • Page 14: Led Indicators

    LED indicators Status Description Unit has no power. GREEN All OK, no alarm condition. Alarm condition, or until unit has started up. (Alarm conditions are configurable, see ''WeOS Management Guide''). BLINK Location indicator ("Here I am!"). Activated when connected to IPConfig Tool, or upon request from Web or CLI.
  • Page 15 Mounting This unit should be mounted on 35 mm DIN-rail, which is horizontally mounted inside an apparatus cabinet or similar. It is recommended that the DIN-rail is connected to ground. Snap on mounting, see figure. Mounting Lynx with integrated DIN-clip: Removal Removing Lynx with integrated DIN-clip: Press down the support at the back of the unit using a screwdriver.
  • Page 16: Getting Started

    This product runs Westermo Operating System (WeOS) which provides several management tools that can be used for configuration of the unit. • IPConfig tool This is a custom Westermo tool used for discovery of attached Westermo units. • Web Configuration of the unit using the web browser.
  • Page 17: Referring Documents

    Referring documents Type Description Document number Management Guide Westermo OS management guide 6101-3201 Factory default on Lynx It is possible to set the unit to factory default settings by using two straight standard Ethernet RJ-45 cables. 1. Power off the switch and disconnect all Ethernet cables (copper and fibre).
  • Page 18 6643-2213...
  • Page 19 6643-2213...
  • Page 20 Westermo • SE-640 40 Stora Sundby, Sweden Tel +46 16 42 80 00 Fax +46 16 42 80 01 E-mail: info@westermo.com www.westermo.com REV. N 6643-2213 2018-04 Westermo Teleindustri AB, Sweden...
