FC 300 Extended Relay Card Operating In-
structions
4. How to Install
4.1. How to Install
4.1.1. Installation of Option in the Frequency Converter
NB!
Before start, interrupt the power supply to the frequency converter. Never install an option card into the frequency converter during
operation.

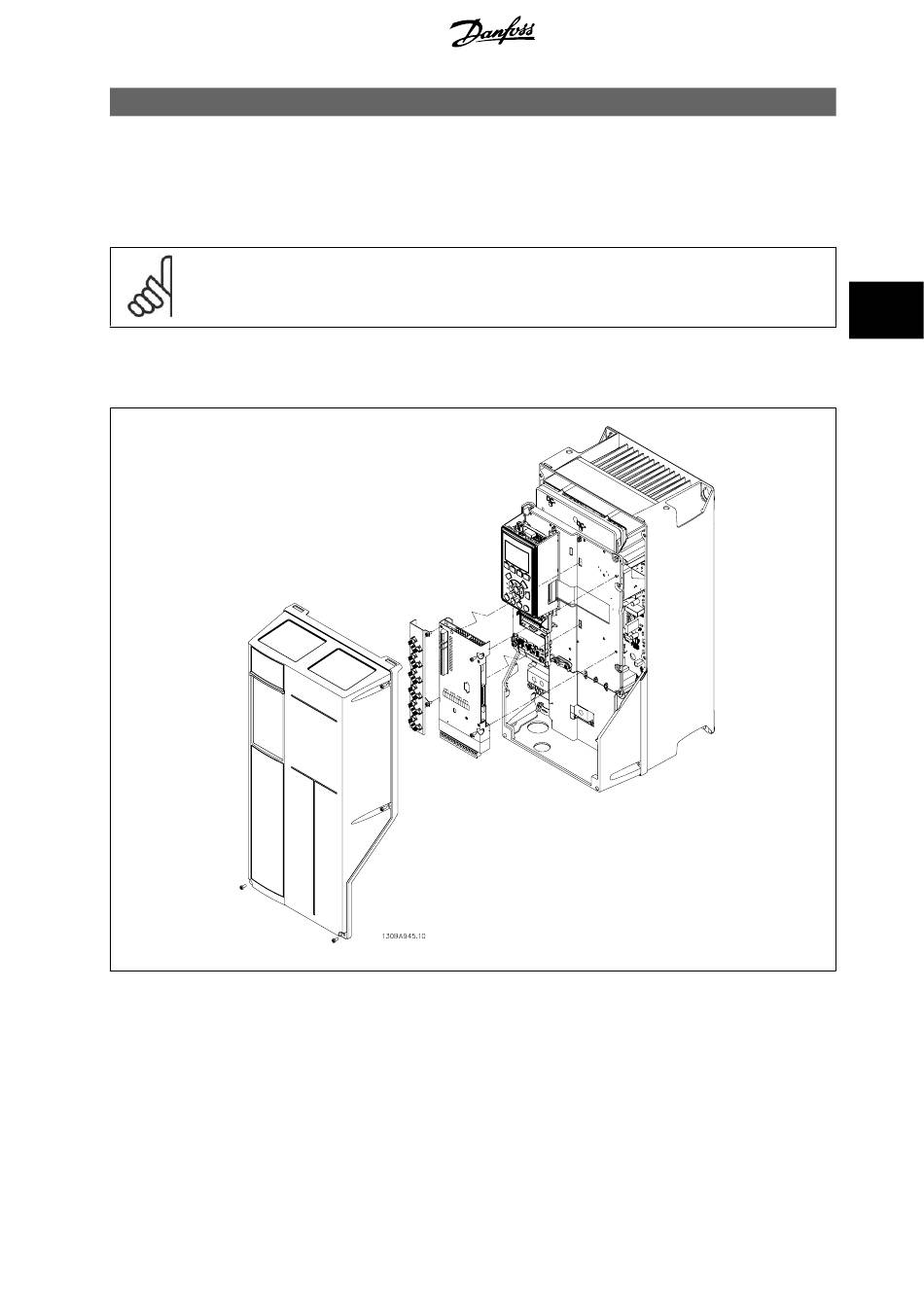

The VLT Extended Relay Card MCB 113 option is exclusively intended for use in option slot C1. The mounting position of C1 options is shown in the
drawings below.
Enclosure A5 - C
The mounting kits for these enclosures include a fan. Note that this fan is not to be mounted!
For these enclosures only one C option can be installed at a time.
