Operating Instructions Electroblock EBL 211
Battery cut-out
12 V main switch
(on operator and control
panel)
Operation with solar
regulator
Use on a 230 V
generator or car ferries
4
3

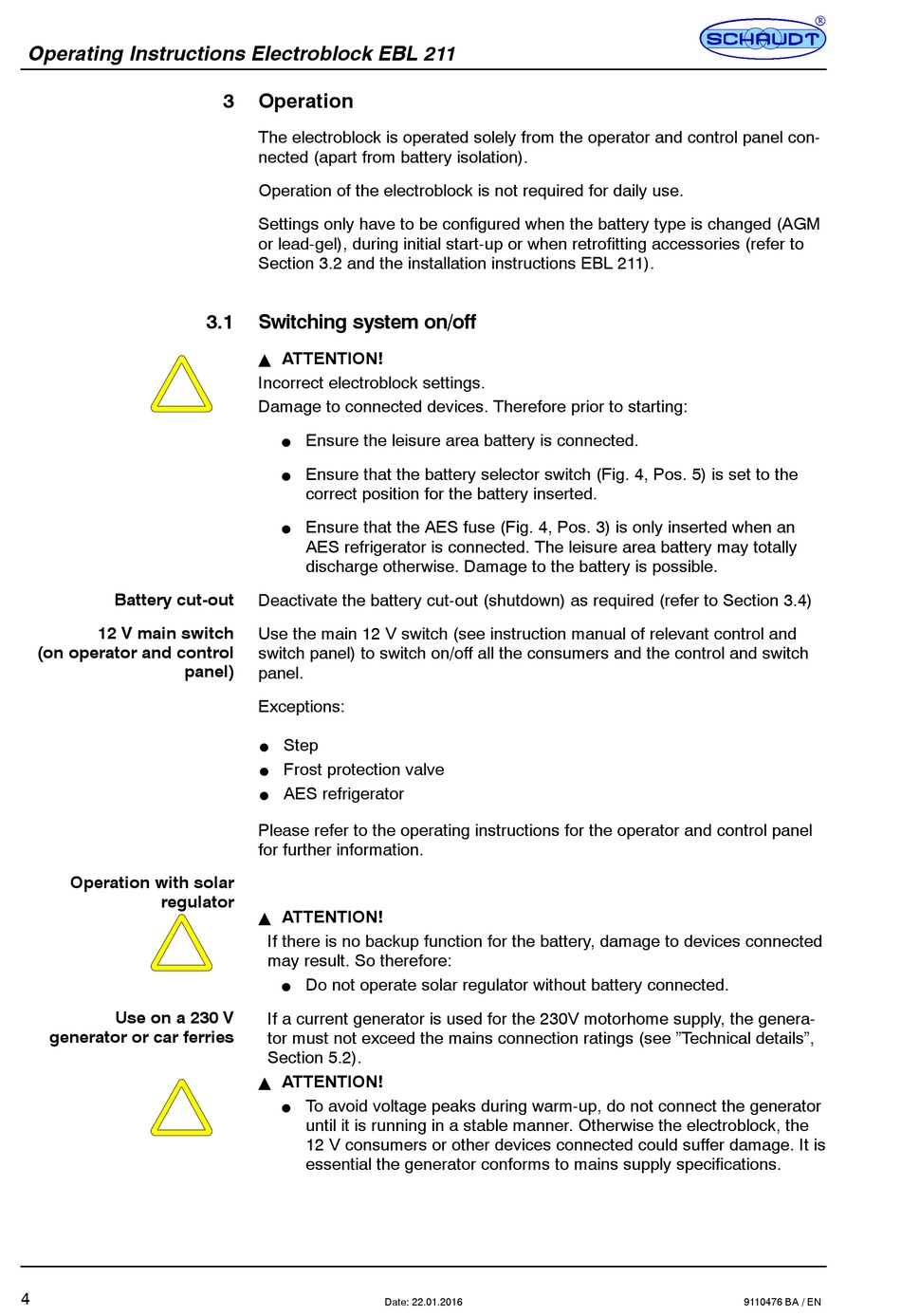

Operation

The electroblock is operated solely from the operator and control panel con-
nected (apart from battery isolation).
Operation of the electroblock is not required for daily use.
Settings only have to be configured when the battery type is changed (AGM
or lead-gel), during initial start-up or when retrofitting accessories (refer to
Section 3.2 and the installation instructions EBL 211).
3.1
Switching system on/off
ATTENTION!
Y
Incorrect electroblock settings.
Damage to connected devices. Therefore prior to starting:
Ensure the leisure area battery is connected.
F
Ensure that the battery selector switch (Fig. 4, Pos. 5) is set to the
F
correct position for the battery inserted.
Ensure that the AES fuse (Fig. 4, Pos. 3) is only inserted when an
F
AES refrigerator is connected. The leisure area battery may totally
discharge otherwise. Damage to the battery is possible.
Deactivate the battery cut-out (shutdown) as required (refer to Section 3.4)
Use the main 12 V switch (see instruction manual of relevant control and
switch panel) to switch on/off all the consumers and the control and switch
panel.
Exceptions:
Step
F
Frost protection valve
F
AES refrigerator
F
Please refer to the operating instructions for the operator and control panel
for further information.
ATTENTION!
Y
If there is no backup function for the battery, damage to devices connected
may result. So therefore:
Do not operate solar regulator without battery connected.
F
If a current generator is used for the 230V motorhome supply, the genera-
tor must not exceed the mains connection ratings (see "Technical details",
Section 5.2).
ATTENTION!
Y
To avoid voltage peaks during warm-up, do not connect the generator
F
until it is running in a stable manner. Otherwise the electroblock, the
12 V consumers or other devices connected could suffer damage. It is
essential the generator conforms to mains supply specifications.
Date: 22.01.2016
9110476 BA / EN
