3.4
3.4.1
Isolate the leisure area
battery from the
on-board 12 V supply
9110476 BA / EN
Operating Instructions Electroblock EBL 211
Fault
Solar charger does not
work (power supply and
engine are off)
g
)
No 12 V supply in the lei-
No 12 V supply in the lei
sure area
Operation of the electro-
block not possible from
block not possible from
the control panel.
The charging current is reduced automatically if the device becomes too
Y
hot due to excessive ambient temperature or lack of ventilation. Always
prevent the device from overheating nevertheless.
If the automatic shutdown mechanism of the battery monitor is triggered,
Y
fully charge the leisure area battery.

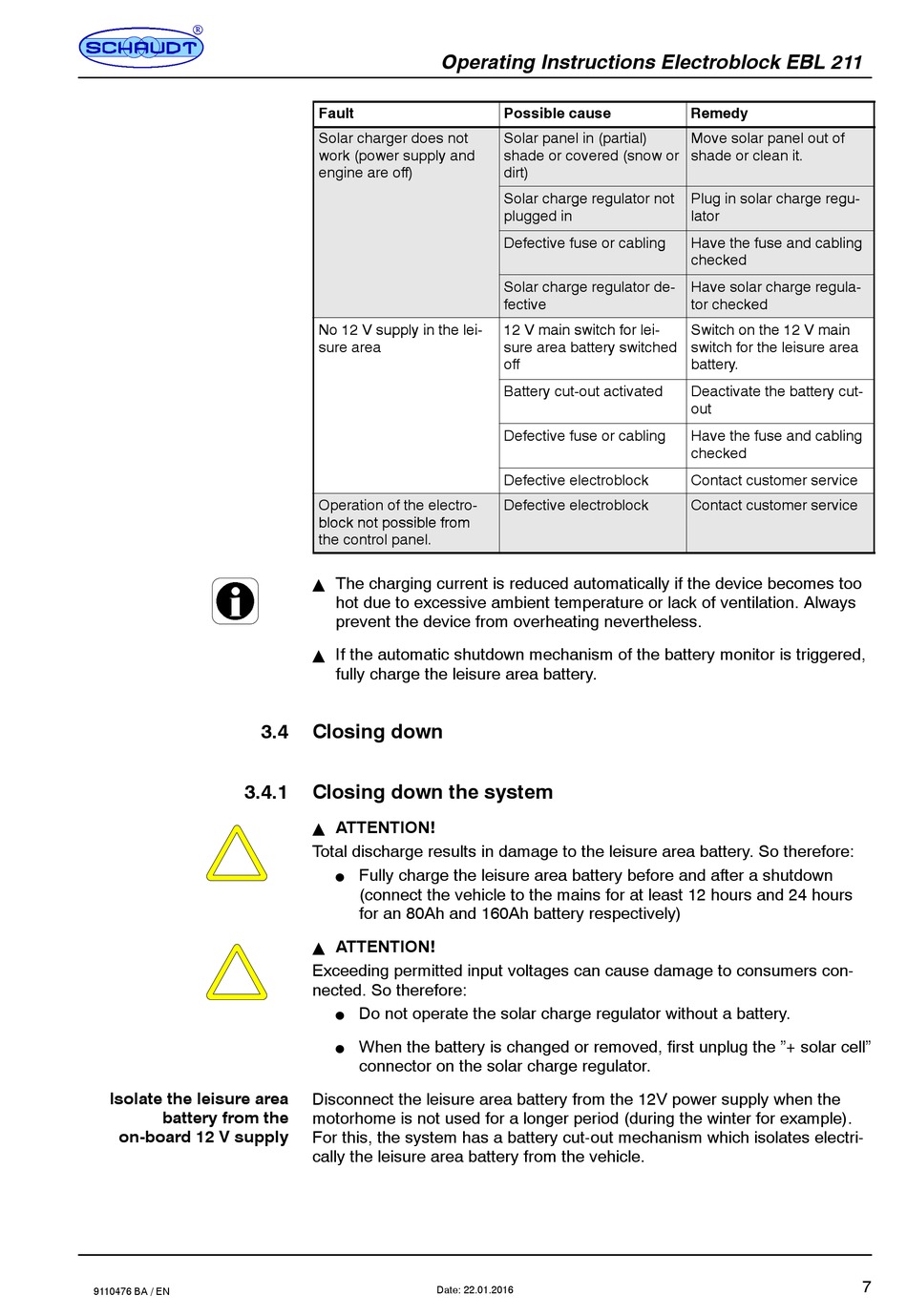

Closing down
Closing down the system
ATTENTION!
Y
Total discharge results in damage to the leisure area battery. So therefore:
Fully charge the leisure area battery before and after a shutdown
F
(connect the vehicle to the mains for at least 12 hours and 24 hours
for an 80Ah and 160Ah battery respectively)
ATTENTION!
Y
Exceeding permitted input voltages can cause damage to consumers con-
nected. So therefore:
Do not operate the solar charge regulator without a battery.
F
When the battery is changed or removed, first unplug the "+ solar cell"
F
connector on the solar charge regulator.
Disconnect the leisure area battery from the 12V power supply when the
motorhome is not used for a longer period (during the winter for example).
For this, the system has a battery cut-out mechanism which isolates electri-
cally the leisure area battery from the vehicle.
Date: 22.01.2016
Possible cause
Solar panel in (partial)
shade or covered (snow or
dirt)
Solar charge regulator not
Solar charge regulator not
plugged in
Defective fuse or cabling
Defective fuse or cabling
Solar charge regulator de-
fective
12 V main switch for lei
12 V main switch for lei-
sure area battery switched
y
off
Battery cut out activated
Battery cut-out activated
Defective fuse or cabling
Defective fuse or cabling
Defective electroblock
Defective electroblock
Remedy
Move solar panel out of
shade or clean it.
Plug in solar charge regu
Plug in solar charge regu-
lator
Have the fuse and cabling
Have the fuse and cabling
checked
Have solar charge regula-
tor checked
Switch on the 12 V main
Switch on the 12 V main
switch for the leisure area
battery.
Deactivate the battery cut
Deactivate the battery cut-
out
Have the fuse and cabling
Have the fuse and cabling
checked
Contact customer service
Contact customer service
