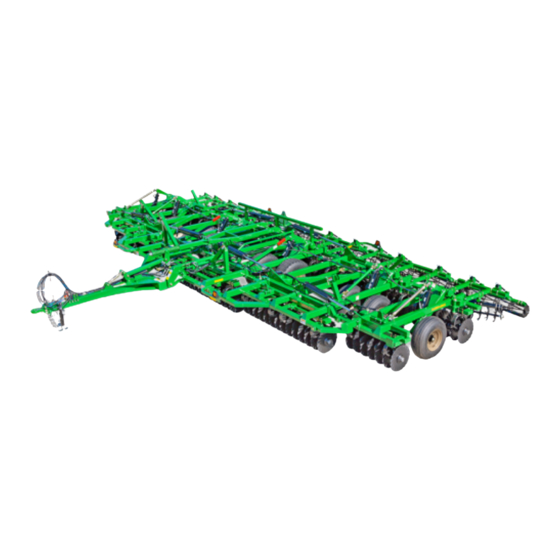

GREAT PLAINS Turbo Max 3500TM Assembly Manual
  1. Manuals
  2. Brands
  3. GREAT PLAINS Manuals
  4. Farm Equipment
  5. Turbo Max 3500TM
  6. Assembly manual

GREAT PLAINS Turbo Max 3500TM Assembly Manual

Hide thumbs Also See for Turbo Max 3500TM:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual
Table of Contents
Read the operator's manual entirely. When you see this symbol, the
