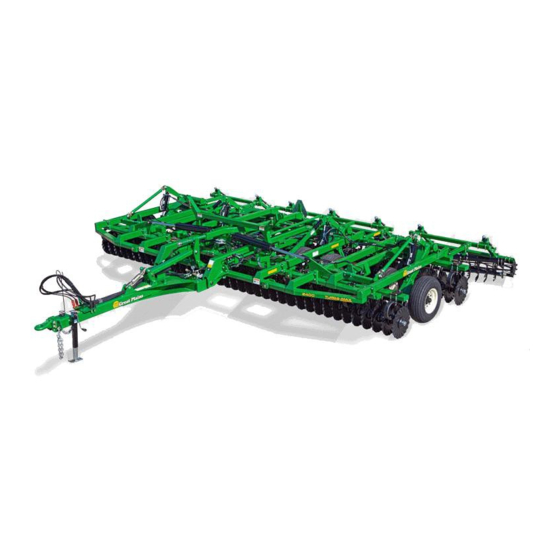

GREAT PLAINS Turbo Max 1800TM Predelivery Manual
  1. Manuals
  2. Brands
  3. GREAT PLAINS Manuals
  4. Farm Equipment
  5. Turbo Max 1800TM
  6. Predelivery manual

GREAT PLAINS Turbo Max 1800TM Predelivery Manual

Hide thumbs Also See for Turbo Max 1800TM:

Advertisement

Quick Links

Download this manual
Table of Contents
Pre-Delivery Manual
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2019
Table of Contents
Index
Turbo Max (S/N GP-C2411H+)
1800TM, 2400TM & 3000TM
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2019-11-18
Index
43132
EN
586-536Q
