GREAT PLAINS MC5109 System Manual

Max chisel
Hide thumbs Also See for MC5109:
Table of Contents

Advertisement

Quick Links

Download this manual
Implement Command System
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2023
Manual
Max Chisel MC5109-MC5319
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2023-12-11
EN
569-441M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC5109 and is the answer not in the manual?

Questions and answers

Related Manuals for GREAT PLAINS MC5109

Summary of Contents for GREAT PLAINS MC5109

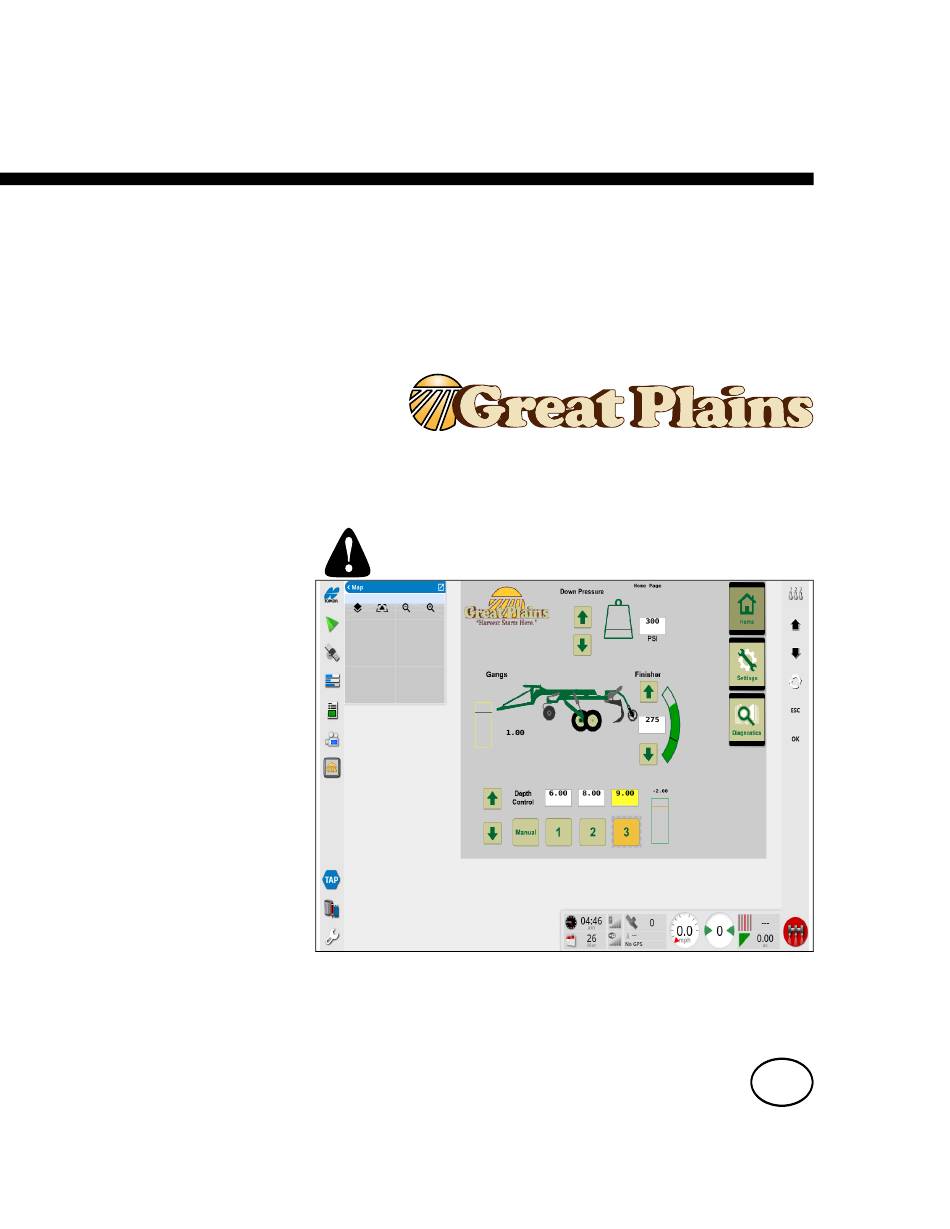

  • Page 1 Implement Command System Manual Max Chisel MC5109-MC5319 Manufacturing, Inc. www.greatplainsmfg.com Read the operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Illustrations may show optional equipment not supplied with standard unit.

  • Page 2: Machine Identification

    Model Number Serial Number Machine Height Machine Length Machine Width Machine Weight Delivery Date First Operation Accessories Dealer Contact Information Name: Street: City/State: Telephone: Email: California Proposition 65 WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov Great Plains | 569-441M...

  • Page 3: Important Safety Information

    Important Safety Information Important Safety Information Look for Safety Symbol The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it.

  • Page 4: Be Familiar With Safety Decals

    Keep Riders Off Machinery Riders obstruct the operator’s view. Riders could be struck by foreign objects or thrown from the machine.  Never allow children to operate equipment.  Keep all bystanders away from machine during operation. Great Plains | 569-441M...

  • Page 5: Shutdown And Storage

    Important Safety Information Shutdown and Storage  Lower implement, put tractor in park, turn off engine, and remove the key.  Secure Hydraulic Reel Attachment using blocks and supports provided.  Detach and store Hydraulic Reel Attachment in an area where children normally do not play.

  • Page 6: Description Of Unit

     Useful information related to the preceding topic. Some parts may change to assure top performance. Further Assistance Great Plains Manufacturing, Inc. wants you to be satisfied with your new Terra Max. If for any reason you do not understand any part of this manual or are...
  • Page 7 Assembly Assembly Implement Command System NOTE: For parts reference refer to parts breakdown on pages 16 to 25 of this manual. For in-field conversions to ICS, also refer to the most recent parts manual for comparison between existing and new ICS layouts. Refer to Figure 2 The Controller Assembly will be shipped in a container, with the installation hardware and will need installed on...
  • Page 8 Refer to Figure 6 & 7 On Models MC5109-5315 there is one Down Pressure Valve (843-222C) (1) (for the finisher down pressure) it is plugged into Finisher DPT1, Finisher DPT3, and Finisher DPC1, on the frame harness. The Depth Control Valve (843- 226C) (2) is attached to DCC1 and DCC2 harness plugs.
  • Page 9 Assembly Refer to Figure 8 & 9  Models MC5317 & MC5319 will have 2 Down Pressure Valves (843-222C), one will be for the wings and one will be for the finisher, if your machine is equipped with an attachment. The Down Pressure Valve (1) (843-222C) (for the wing down pressure) is plugged into DPT1, DPT3, and DPC1, on the frame harness.
  • Page 10 Hoses will need to be routed to the reel attachment as well. Route the harness along the hitch and follow the hydraulic hoses. Figure 10 TP-77277 Figure 11 TP-77296 Great Plains | 569-441M...
  • Page 11 Assembly Refer to Figure 12 The wiring will follow the hydraulic hoses that are hooked to the torque tube cylinder, secured with p-clips and zip ties. After all the connections are made, extra wire can be bundled up and secured together with a zip tie to keep from getting damaged.

  • Page 12: Operation

     You must select a shank option from the screen before setting the depth. 1. Click on the settings button on the right hand side of the home screen. 2. Be sure that depth control screen is showing. Great Plains | 569-441M...
  • Page 13 Operation Highlighten Area Is Target Depth Decrease Depth Actual Depth Depth Control Feature Increase Depth Presets Manual Depth Control Button Figure 15 TP-77278 Setting Depth Refer to Figure 15 The manual depth stop needs to be turned all the way out for the ICS System to work correctly.

  • Page 14: Blade Depth

    Gauge Figure 16 TP-77279 Gang Depth Refer to Figure 16 The gang blade depth can be monitored from the screen, you must adjust this with the hydraulic circuit lever.  This is relative to shank/machine depth. Great Plains | 569-441M...
  • Page 15 Operation Increase Pressure Decrease Wing Down Pressure Pressure Figure 17 TP-77280 Hydraulic Down Pressure (17 & 19 Shank Models Only) Refer to Figure 17 The down pressure is active and can be increased or decreased, on the go through the field. You may adjust this by using the up and down arrows under the down pressure title.

  • Page 16: Manual Override

    3/16” alen screw in on coil DPC1. 2. Engage SCV. Then start to dial up the pressure, while watching the gauges. DO NOT exceed 900psi, or frame/cylinder damage could occur. Figure 19 TP-77309 Great Plains | 569-441M...
  • Page 17 Operation This page intentionally left blank. 12/11/2023...
  • Page 18 Implement Command System, Max Chisel Max Chisel ICS System MC5109-MC5315 TP-77275 Great Plains | 569-441M...
  • Page 19 Operation Max Chisel ICS System MC5109-MC5315 Parts List TP-77275 Image No. 1 843-222C DOWN PRESSURE VALVE 1 CIRCUIT Finisher Down Pressure 2 843-226C DEPTH CONTROL VALVE 3 566-513D ICS CONTROLLER MOUNT COVER 4 566-365S ICS CONTROLLER ASSY MC Includes items 12, & 21-24 5 566-364S MC DEPTH CONTROL SENSOR ASSY Includes items 11, 18, 19, &...
  • Page 20 Implement Command System, Max Chisel Max Chisel ICS System MC5317 & MC5319 TP-77276 Great Plains | 569-441M...
  • Page 21 Operation Max Chisel ICS System MC5317 & MC5319 Parts List TP-77276 Image No. 1 843-222C DOWN PRESSURE VALVE 1 CIRCUIT Finisher Down Pressure 2 843-226C DEPTH CONTROL VALVE 3 566-513D ICS CONTROLLER MOUNT COVER 4 566-365S ICS CONTROLLER ASSY MC Includes items 12, &...
  • Page 22 Implement Command System, Max Chisel Max Chisel ICS Hydraulic Lift System MC5109-MC5315 TP-77298 Great Plains | 569-441M...
  • Page 23 Operation Max Chisel ICS Hydraulic Lift System Parts Lists MC5109-MC5315 Image No. dwgTP-77298 810-501C CYL REP 4X10X1.38 ROD (TIE) 843-226C DEPTH CONTROL VALVE 810-116C COUNTERBALANCE VALVE MAN. T.T. 810-511C HYD VALVE DEPTH CONTROL CROSS 811-690C EL 45 3/4MORB 3/4MJIC 811-088C...
  • Page 24 Implement Command System, Max Chisel Max Chisel ICS Hydraulic Finisher System MC5109-MC5315 TP-77300 Great Plains | 569-441M...
  • Page 25 Operation Max Chisel ICS Hydraulic Finisher System Parts Lists MC5109-MC5315 dwgTP-77300 Image No. 811-394C CP 3/4FORB MALE QD POPPET TYPE 811-919C AD 3/4MORB 3/4FORB (HG) 841-542C HG HANDLE - BLUE EXT 841-543C HG HANDLE - BLUE RET 548-006S HG PAIR - BLUE MORB-FORB...
  • Page 26 Implement Command System, Max Chisel Max Chisel ICS Hydraulic Lift System MC5317 & MC5319 TP-77290 Great Plains | 569-441M...
  • Page 27 Operation Max Chisel ICS Hydraulic Lift System Parts List MC5317 & MC5319 dwgTP-77290 Image No. 810-689C CYL REP 4.5X10X2 ROD (TIE) 810-501C CYL REP 4X10X1.38 ROD (TIE) 810-116C COUNTERBALANCE VALVE MAN. T.T. 810-511C HYD VALVE DEPTH CONTROL CROSS 811-690C EL 45 3/4MORB 3/4MJIC 811-088C AD 3/4MORB 3/4MJIC 811-063C...
  • Page 28 Implement Command System, Max Chisel Max Chisel ICS Hydraulic Fold System MC5317 & MC5319 TP-77291 Great Plains | 569-441M...
  • Page 29 Operation Max Chisel ICS Hydraulic Fold System Parts List MC5317 & MC5319 dwgTP-77291 Image No. 810-638C CYL 4X30X2 TIE 40.63 CL 3000# Refer to "Hydraulic Cylinder" for breakdown. 560-536D DOUBLE HYD TEE BLOCK 810-131C PILOT OPERATED CHECK VALVE 843-222C DOWN PRESSURE VALVE 1 CIRCUIT Includes Item 9 1500psi Pressure Gauge 871-139C 196-430D ORIFICE PLATE 1/16 3/4MORB...
  • Page 30 Implement Command System, Max Chisel Max Chisel ICS Hydraulic Finisher System MC5317 & MC5319 TP-77310 Great Plains | 569-441M...
  • Page 31 Operation Max Chisel ICS Hydraulic Finisher System Parts List MC5317 & MC5319 dwgTP-77310 Image No. 811-394C CP 3/4FORB MALE QD POPPET TYPE 811-919C AD 3/4MORB 3/4FORB (HG) 841-542C HG HANDLE - BLUE EXT 841-543C HG HANDLE - BLUE RET 548-006S HG PAIR - BLUE MORB-FORB Includes items 2-4 811-690C...
  • Page 32 Implement Command System, Max Chisel Implement Command Lift Hydraulic Layout MC5109-5315 TP-77281 Great Plains | 569-441M...
  • Page 33 Operation Implement Command Lift Hydraulic Layout MC5317-5319 TP-77282 12/11/2023...
  • Page 34 Implement Command System, Max Chisel Implement Command Reel Down Pressure Layout MC5109-5315 TP-77283 Great Plains | 569-441M...
  • Page 35 Operation Implement Command Reel Down Pressure Layout MC5317-5319 TP-77284 12/11/2023...
  • Page 36 Implement Command System, Max Chisel Implement Command Wing Down Pressure Layout MC5317-5319 TP-77285 Great Plains | 569-441M...
  • Page 37 Operation Wiring Connections Layout MC5109-5315 TP-77301 12/11/2023...
  • Page 38 Implement Command System, Max Chisel Wiring Connections Layout MC5317-5319 TP-77302 Great Plains | 569-441M...
  • Page 40 Great Plains, Mfg. 1525 E. North St. P.O. 5060 Salina, KS 67402...
