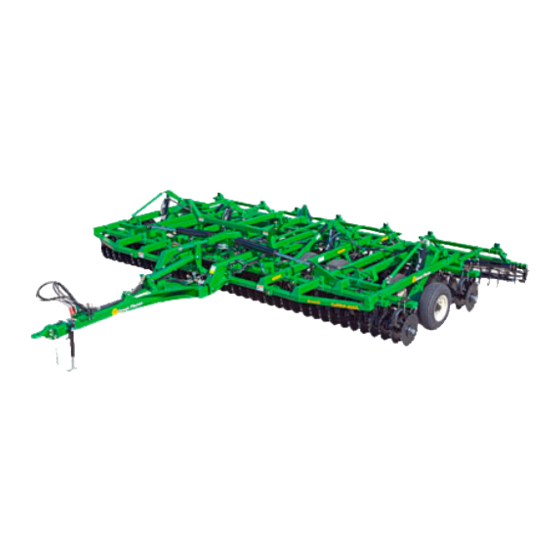

GREAT PLAINS Turbo Max 4800TM Predelivery Manual
  1. Manuals
  2. Brands
  3. GREAT PLAINS Manuals
  4. Farm Equipment
  5. Turbo Max 4800TM
  6. Predelivery manual

GREAT PLAINS Turbo Max 4800TM Predelivery Manual

Hide thumbs Also See for Turbo Max 4800TM:

Advertisement

Quick Links

Download this manual
Table of Contents

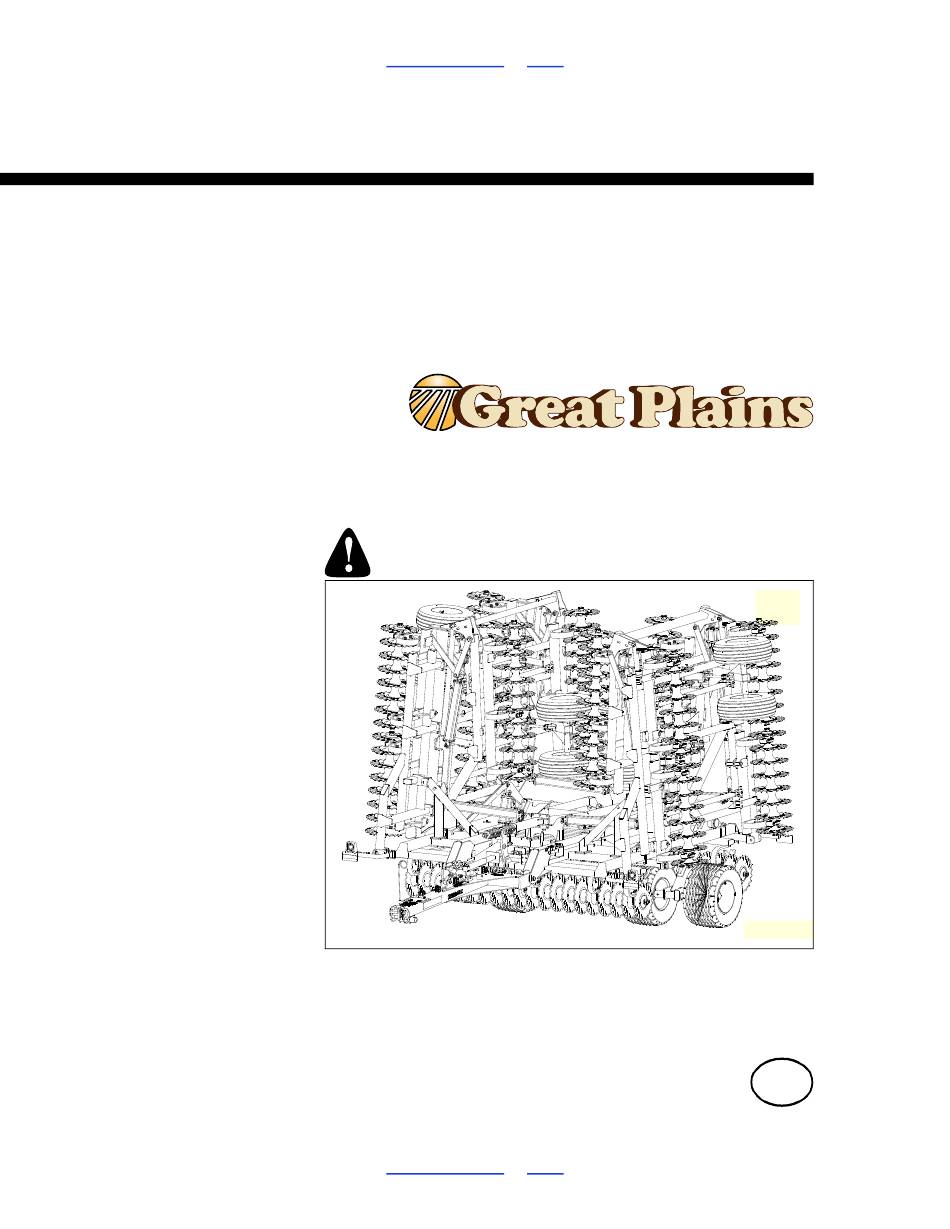

Pre-Delivery Manual
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2021
Table of Contents
Index
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2021-02-08
Index
Turbo Max
4800TM
43967
EN
586-632Q
