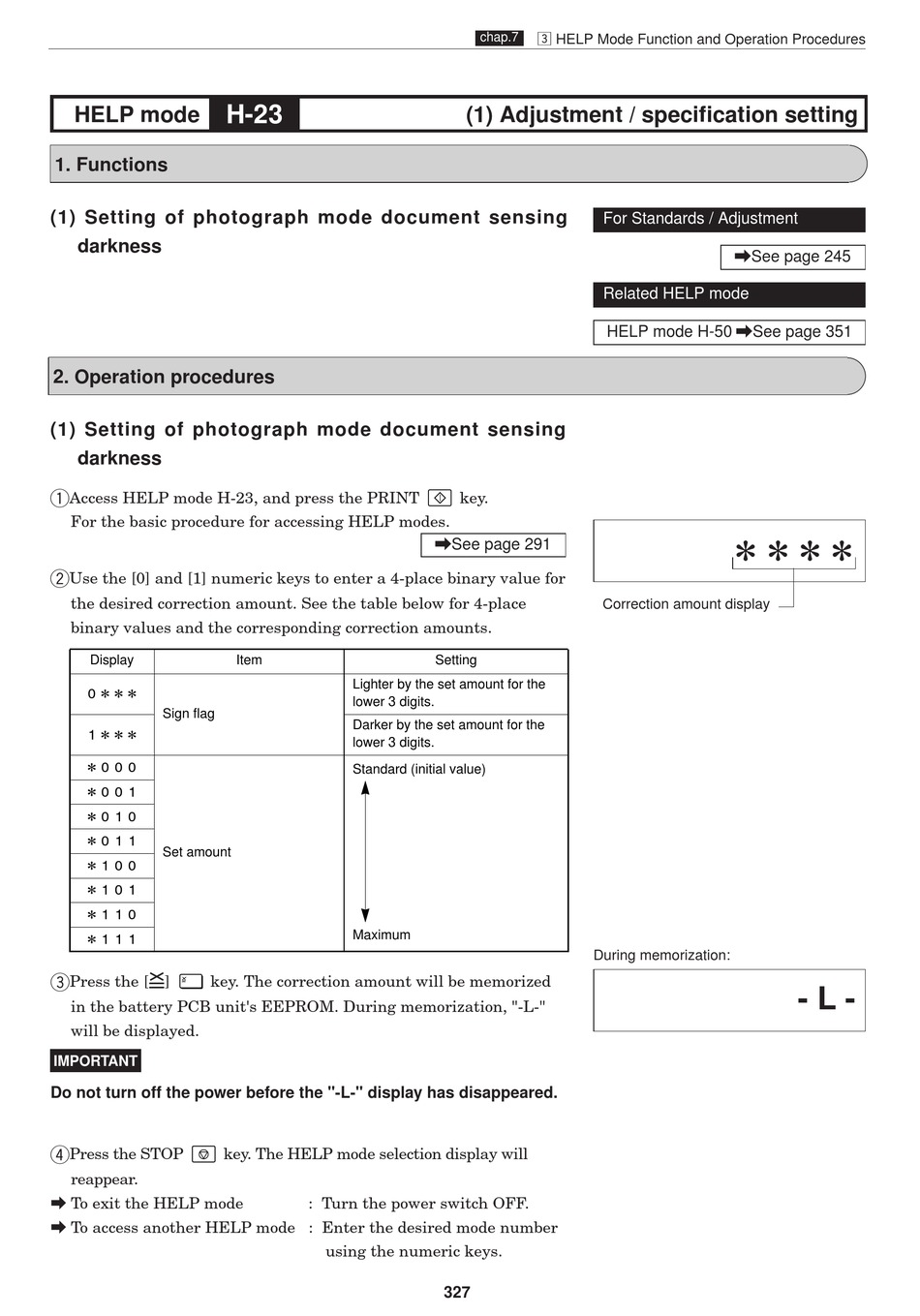

Duplo Duprinter DP-43E Service Manual page 327

HELP mode
1. Functions
(1) Setting of photograph mode document sensing
darkness
2. Operation procedures
(1) Setting of photograph mode document sensing
darkness
q
Access HELP mode H-23, and press the PRINT
For the basic procedure for accessing HELP modes.
w
Use the [0] and [1] numeric keys to enter a 4-place binary value for
the desired correction amount. See the table below for 4-place
binary values and the corresponding correction amounts.
Display
0***
Sign flag
1***
*000
*001
*010
*011
Set amount
*100
*101
*110
*111
e
Press the [=] key. The correction amount will be memorized
in the battery PCB unit's EEPROM. During memorization, "-L-"
will be displayed.
IMPORTANT
Do not turn off the power before the "-L-" display has disappeared.
r
Press the STOP
reappear.
a To exit the HELP mode
a To access another HELP mode : Enter the desired mode number
H-23
Item
Lighter by the set amount for the
lower 3 digits.
Darker by the set amount for the
lower 3 digits.
Standard (initial value)
Maximum
key. The HELP mode selection display will
: Turn the power switch OFF.
using the numeric keys.
chap.7
c HELP Mode Function and Operation Procedures
(1) Adjustment / specification setting
For Standards / Adjustment
Related HELP mode
HELP mode H-50 \See page 351
key.
\See page 291
Correction amount display
Setting
During memorization:
327
\See page 245
****
- L -
