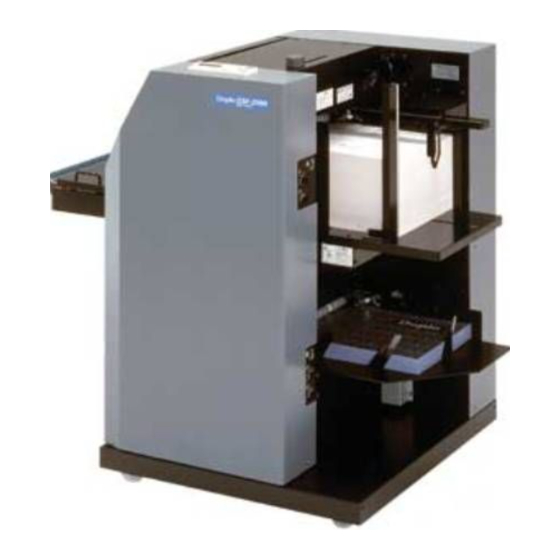

Duplo DSF-2000
Sheet Feeder

Installation Manual

Provided By
http://www.MyBinding.com
http://www.MyBindingBlog.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSF-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Duplo DSF-2000

Summary of Contents for Duplo DSF-2000

  • Page 1: Installation Manual

    Duplo DSF-2000 Sheet Feeder Installation Manual Provided By http://www.MyBinding.com http://www.MyBindingBlog.com...

  • Page 2: Sheet Feeder

    SHEET FEEDER DSF-2000 INSTALLATION MANUAL Specialized person only...

  • Page 3: Table Of Contents

    Before Installing ........1 1-2. Installation Location ......... 1 1-3. Power Supply ........... 1 Standard Accessories ........2 Installation of DSF-2000 ........4 3-1. Preparations for DSF-2000 ...... 4 3-2. Connecting the Power Supply ....5 3-3. Selecting the Downstream Processing...

  • Page 4: Points To Note In Installation

    1. POINTS TO NOTE IN INSTALLATION 1-1. Before Installing Turn off the unit, then unplug its power cord from the AC outlet. Make sure that the power supply voltage and frequency in your area match the power requirements indicated on the main name plate of the unit. 1-2.

  • Page 5: Standard Accessories

    2. STANDARD ACCESSORIES Confirm that the following parts are provided. SHEET FEEDER SHEET FEEDER DSF-2000 DSF-2000 INSTRUCTION MANUAL INSTALLATION MANUAL Specialized person only...
  • Page 6 2. STANDARD ACCESSORIES Name Qty. Name Qty. Bridge Power cord (only 120 V AC) Upper bridge guide Connecting plate Lower bridge guide Auxiliary paper feed plate A Screw (HSKW5 × 12) Front bracket Screw (MSKW4 × 8) Rear bracket Screw (MSKW3 × 6) Auxiliary stack guide A Stack guide B Instruction manual...

  • Page 7: Installation Of Dsf-2000

    3. INSTALLATION OF DSF-2000 3-1. Preparations for DSF-2000 Attach the auxiliary paper feed plate A. Refer to “15. STACKING PAPER ON THE PAPER FEEDER A AND ADJUSTING PAPER FEED” in the instruction manual. Auxiliary paper feed plate A Attach the front bracket, rear bracket,...

  • Page 8: Connecting The Power Supply

    Normally use horizontally (in the shipped state). After installing, adjust only if necessary according to the using state. When connecting the downstream processing unit, refer to its installation manual, instruction manual, and the installation manual for the cabinet. 3-2. Connecting the Power Supply Insert the power cord plug of the DSF-2000 into the outlet.

  • Page 9: Unit

    3. INSTALLATION OF DSF-2000 3-3. Selecting the Downstream Processing Unit Set the downstream processing unit to be connected on the maintenance menu. Display (LCD) Stop button Start button Power ON indicator Clear Escape button button Jog dial Function button Turn on the power of this unit.
  • Page 10 3. INSTALLATION OF DSF-2000 When connecting the DBM-400 Sheet by Sheet Turn the jog dial to select “DBM400”, and press the jog dial to confirm. Finisher Setting DBM4OO Perform the following settings. q Turn the jog dial to display “Feed Speed”, and press the jog dial to confirm.
  • Page 11 99T-90191-01070030M-0...
