chap.4
, Drum Section

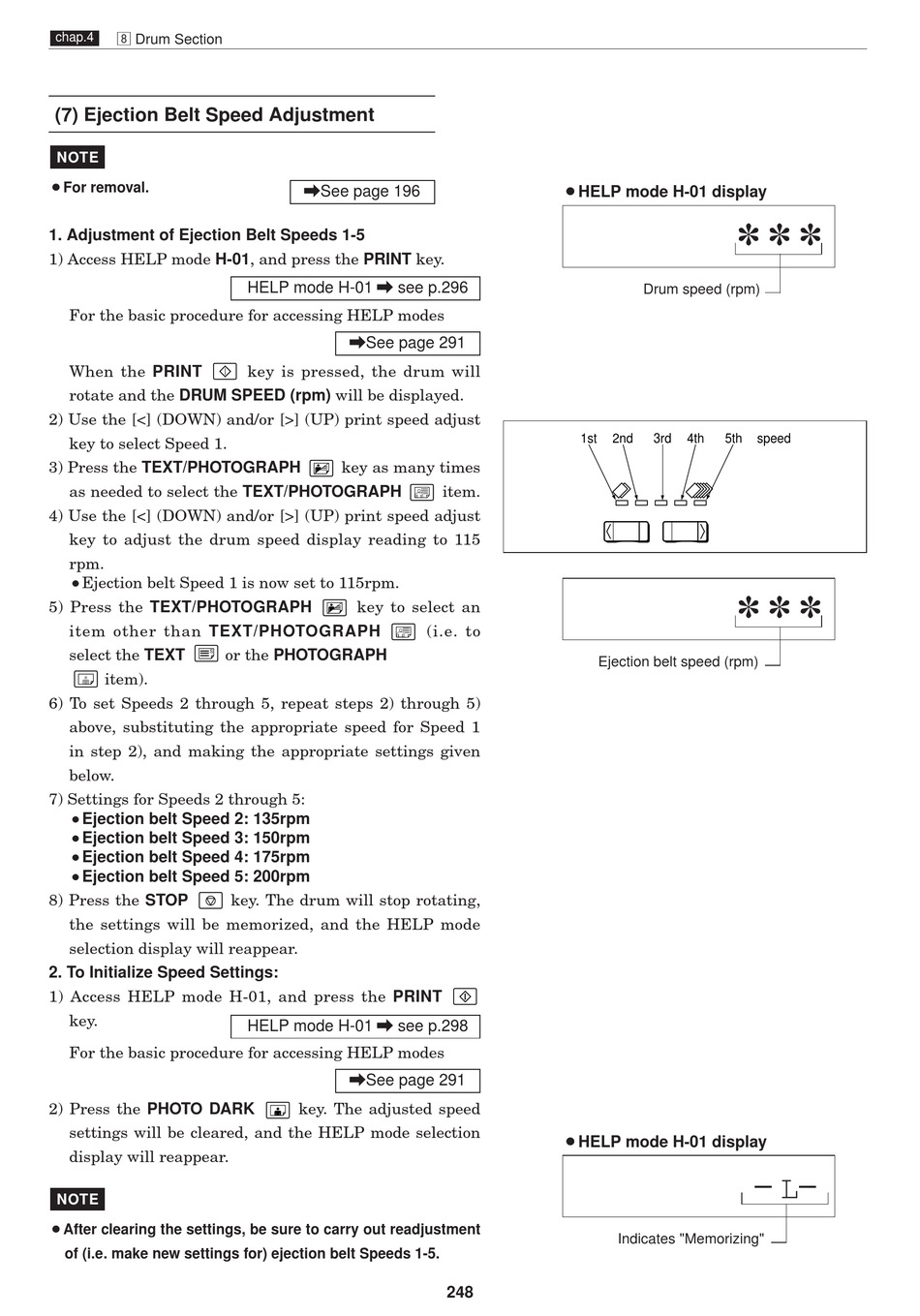

(7) Ejection Belt Speed Adjustment
NOTE
¡For removal.

1. Adjustment of Ejection Belt Speeds 1-5

1) Access HELP mode H-01, and press the PRINT key.
For the basic procedure for accessing HELP modes
When the PRINT
rotate and the DRUM SPEED (rpm) will be displayed.
2) Use the [<] (DOWN) and/or [>] (UP) print speed adjust
key to select Speed 1.
3) Press the TEXT/PHOTOGRAPH
as needed to select the TEXT/PHOTOGRAPH
4) Use the [<] (DOWN) and/or [>] (UP) print speed adjust
key to adjust the drum speed display reading to 115
rpm.
Ejection belt Speed 1 is now set to 115rpm.
¡
5) Press the TEXT/PHOTOGRAPH
item other than TEXT/PHOTOGRAPH
select the TEXT
S
item).
6) To set Speeds 2 through 5, repeat steps 2) through 5)
above, substituting the appropriate speed for Speed 1
in step 2), and making the appropriate settings given
below.
7) Settings for Speeds 2 through 5:
Ejection belt Speed 2: 135rpm
¡
Ejection belt Speed 3: 150rpm
¡
Ejection belt Speed 4: 175rpm
¡
Ejection belt Speed 5: 200rpm
¡
8) Press the STOP
the settings will be memorized, and the HELP mode
selection display will reappear.

2. To Initialize Speed Settings:

1) Access HELP mode H-01, and press the PRINT
key.
For the basic procedure for accessing HELP modes
2) Press the PHOTO DARK
settings will be cleared, and the HELP mode selection
display will reappear.
NOTE
¡After clearing the settings, be sure to carry out readjustment
of (i.e. make new settings for) ejection belt Speeds 1-5.
\See page 196
HELP mode H-01 \ see p.296
\See page 291
key is pressed, the drum will
key as many times
key to select an
or the PHOTOGRAPH
key. The drum will stop rotating,
HELP mode H-01 \ see p.298
\See page 291
key. The adjusted speed
¡HELP mode H-01 display
1st
item.
(i.e. to
Ejection belt speed (rpm)
¡HELP mode H-01 display
248
Drum speed (rpm)
2nd 3rd 4th 5th speed
L
Indicates "Memorizing"
