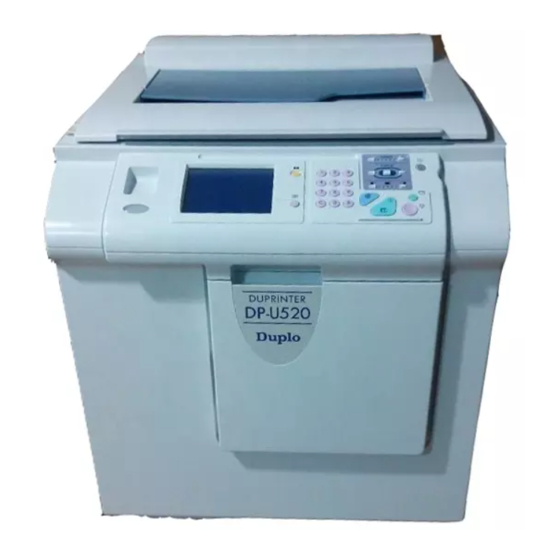

Page 1 INSTRUCTION MANUAL DUPRINTER DP-U850/U650 DP-U620/U550 DP-U520/U510 Be sure to read this manual prior to use. Please leave this manual at the site of use for easy reference.
Page 3 Introduction Thank you for your purchase of the DUPRINTER DP-U850/U650/U620/U550/U520/U510. To ensure safe and efﬁ cient prolonged use of this machine, read and thoroughly understand this manual before using this machine. After using this manual, be sure to keep it in a handy place to reference.
Page 4 Disposal of Old Electrical & Electronic Equipment This symbol (the symbol of the crossed out wheeled bin) indicates that in European countries this product should not be disposed of as household waste. Please recycle where facilities exist by checking with your local authority or supplier for recycling advice.
Page 6: Notes On Safety (Please Read And Observe)
Notes on Safety (Please Read and Observe) Safety Precautions Various symbols and pictures are used in this manual and on the labels afﬁ xed to the machine. These symbols and pictures provide warnings and instructions to prevent danger to you or other personnel, and to prevent damage to ofﬁ...
Page 7 Notes on Safety (Please Read and Observe) CAUTION ● Some paper may cause paper dust in the machine. Keep clean the machine and sufﬁ cient ventilation. ● Caution for Grounding (Be sure to use the supplied power cord) WARNING ● Use only the power cord that is provided among the accessories. Insert the power cord plug ﬁ...
Page 8 Notes on Safety (Please Read and Observe) ● Prohibition of Disassembly or Modiﬁ cation WARNING ● Do not modify the machine. → Doing so may result in ﬁ re or electric shock. ● Do not remove the rear lid, cabinet, or covers from the machine. →...
Page 9 Notes on Safety (Please Read and Observe) CAUTION ● Do not place the machine in a place subject to direct sunlight or heating equipment such as a stove. → It may degrade ink quality and affect printing. The machine also may malfunction.
Page 10 Notes on Safety (Please Read and Observe) ● Notes on Ink CAUTION ● If ink gets into eyes or mouth, immediately wash it away with water and contact a doctor. ● If ink comes into contact to skin, immediately wash it away with soap and water. ●...
Page 11: Locations Of Warning Labels
Notes on Safety (Please Read and Observe) ● Locations of Warning Labels ● Keep the WARNING and CAUTION labels clean at all times. If labels become damaged or come off, please call our service person. ● Do not remove this cover. The inside of the printer contains movable cutting instruments, WARNING contact with which could result in injury.
Page 12 ● Pictorial Symbols and Other Notations Used in This Manual : Introduces instructions for correct operation of the machine. IMPORTANT If these instructions are ignored, the machine may not be able to operate at optimum performance or may break down. : Introduces information that is useful for operation and maintenance of the REFERENCE machine, or information about the machine’s performance, etc.
Page 13: Function Index
Function Index The followings are a brief introduction of various functions of the machine. Functions for Master Making Paper Size → P.31 Zoom → P.29,P.38 Enlarges or reduces the size of copy as you Sets paper size. want. Nonstandard-size paper is available. →...
Page 14 Document Memory → P.92 Ink Saving Mode → P.112 Remakes a master of previous Saves ink when printing by image without scanning. changing document scanning density. Document Darkness Detection→ P.118 Document Misset Detection → P.126 Warns you if the document is not Scans the entire document and placed correctly on the glass plate.
Page 15 Functions for Printing Print Darkness → P.47 Print Position → P.51 Adjusts the position of the printed Adjusts print darkness. image. → P.34 Print Speed → P.106 Paper Type Adjusts print speed. Sets mode suitable for printing paper. Double Feed Detection → P.108 →...
Page 16 Optimize Print → P.147 Repeat Counter → P.151 Adjusts printed image to the best print Displays the same number of prints after darkness by setting room temperature and printing completes. print speed. Print Position Adjustment While Printing → P.153 Adjusts print position while printing.
Page 17: Other Functions
Other Functions Initial Conﬁ guration → P.134 Job Setting Memory → P.96 Changes settings in Standard Mode. Saves and retrieves settings when needed. Shortcut Settings → P.137 Energy Save Mode → P.139 Retrieves frequently used functions by Automatically turns off the LCD when it is not touching shortcut icon at the bottom of the operated for a speciﬁ...
Page 19: Table Of Contents
Before Use ............Part Names and Their Functions ..............Printer Appearance ..............Inside of machine ..........Outside/Inside of print output side ..........Control Panel (DP-U850/U650/U620) ................. Main Screen ..............Turning Power ON/OFF ..............Turning Power ON ..............Turning Power OFF ............
Page 20 Contents ............How to Adjust Print Speed ............How to Set TOP SPEED Chapter 3 Printing with Useful Functions .............. Enlargement / Reduction ............Enlargement / Reduction ..............Minor Reduction ................Auto Zoom ................Free Zoom ..............Custom Scaling ..............Adjusting Darkness ..............
Page 21 Contents ..............Document Memory ..............Document Memory ........... How to Set Document Memory ................ Document Size ..............Document Size ............How to Set Document Size ......... How to Set “Custom” in Document Size Special Function ..............Job Setting Memory ............... JOB Setting Memory ..............
Page 22 Contents ................Drum Size ................Drum Size ............How to Set Drum Size Setting Function ..............Initial Conﬁ guration ............... Initial Conﬁ guration ..........How to Set Initial Conﬁ guration ..............Shortcut Setting ..............Shortcut Setting ..............Energy Save Mode ...............
Page 23 Contents ..............Replacing Roll Master ............Replacing Roll Master ............. How to Replace Roll Master ........... How to Dispose of Used Masters ..........How to Dispose of Used Masters ..............Replacing Drum Unit .............. Replacing Drum Unit ............How to Remove Drum Unit .............
Page 25 Chapter Before Use This chapter contains essential information such as the names of the machine parts, the names and functions of keys, etc., on the control panel, and the sizes of documents and printing papers that you can use. Please be sure to read this chapter carefully before attempting to use the printer.
Page 26: Part Names And Their Functions
Part Names and Their Functions Printer Appearance V3M0101 Name Function Reference 1 Scanner cover Keeps the document in contact with the document glass plate. 2 Glass The document is placed on this glass. 3 Feed tray descend 22, 182, Press to lower the feed tray. switch 183, 185 4 Feed tray...
Page 27: Inside Of Machine
Part Names and Their Functions Inside of machine Inside of the master cover area. Master cover Roll master Cutter V3M0104 Drum release lever Paper feed rollers Ink holder Ink pack V3M0103 V3M0102 Name Function Reference Drum removal Pressing this button rotates the drum and stops it in position 171, 189 button to be removed.
Page 28: Outside/Inside Of Print Output Side
Part Names and Their Functions Outside/Inside of print output side Master ejection section V3M0106 V3M0105 Name Function Reference 169, 186, Master ejection Press to open the master ejection box. box open button Press and hold to rotate the drum for the set time. 186, 24 Paper eject switch Use to remove paper jams, etc.
Page 29 Part Names and Their Functions V3M0107 Name Function Reference 29 Key card slot Slot a key card. *It varies by conﬁ guration. 30 Print tray Holds printed papers. 31 Side fence Slide to match the size of printed paper. 32 Paper stopper Slide to match the size of printed paper.
Page 30: Control Panel (Dp-U850/U650/U620)
Part Names and Their Functions Control Panel (DP-U850/U650/U620) × ＝ 10 11 12 13 V3M0108 Name Function 1 Clip holder 2 Pen holder 3 RESET key Returns setting to standard mode. Setting not stored is cleared. 4 Control keys PRINT DARKNESS keys Controls print darkness.
Page 31: Main Screen
● The set icon is highlighted in black and white. The above screen is for DP-U850. Some ions are not displayed on other models. IMPORTANT You can select setting by touching the touch panel LCD softly with your ﬁ nger or the supplied...
Page 32: Turning Power On/Off
Turning Power ON/OFF The following describes how to turn the power ON and OFF. Turning Power ON Connect the “female plug” of the power cord to the “inlet”. Connect the “male plug” of the power cord to the “outlet”. V3M0109 CAUTION Male plug of the power...
Page 33: Key Card Counter (Optional)
Standard Mode. Standard Mode settings are as follows: If default settings are changed, the settings are the changed ones. Print quantity Paper size : Auto (DP-U850/U650/U620), A3 (DP-U550), B4 (DP-U520), Legal (DP-U510) Zoom : 100% Master darkness : ±0 Scan darkness : ±0...
Page 34: Document/Printing Paper Speciﬁ Cations
Document/Printing Paper Speciﬁ cations Acceptable Documents ● Document glass plate Documents and books not exceeding 10kg Document Size : 297mm × 432mm (max.) ● Automatic document feeder (ADF) (optional) Document weight : 64gsm - 128gsm Document size : 297mm × 432mm (max.) 100mm ×...
Page 35 Document / Printing Paper Speciﬁ cations IMPORTANT The following types of paper cannot be used. * Documents with large ﬁ le-binding holes * Documents with staples or paper clips attached * Documents with markedly curling ends/sides, or marked folds * Documents with tears or rough edge * Chemically treated documents with such as thermal paper, carbon paper, and stickers, etc.
Page 36: How Master Making And Printing Are Performed
How Master Making and Printing are Performed This machine has two main processes, 'Master Making" and "Printing". Master Making In the “master making” process, the old master on the drum is removed while the thermal head creates the scanned image on the new master and transfers it onto the drum. Master ejection box Roll master Drum...
Page 37: Basic Operations
Chapter Basic Operations This chapter describes basic operations such as basic printing, how to set a document and how to enlarge/reduce the size of copy, etc. Preparing for printing ..................... 20 How to Set Papers ..................20 When no heavy weight paper is fed or two sheets of light weight paper are fed ..21 How to Supply or Replace Paper While Printing ..........
Page 38: Preparing For Printing
Preparing for Printing How to Set Papers Open the “support tray”. V3M0201 Hold the “side guide lever” and adjust the “side guide” according to the paper size. A3 /A4 V3M0202 Loosen sheets and align them. Put the sheets between the “side guides” and push them to the inside of the machine.
Page 39: When No Heavy Weight Paper Is Fed Or Two Sheets Of Light Weight Paper Are Fed
Preparing for Printing When no heavy weight paper is fed or two sheets of light weight paper are fed Adjust the "feed pressure adjuster lever" to paper thickness. ● If no paper is fed: Adjust the "feed pressure adjuster lever" to (heavy) by moving it upward.
Page 40: How To Supply Or Replace Paper While Printing
Preparing for Printing How to Supply or Replace Paper While Printing If paper runs out during printing or when you replace paper, press the “feed tray descend switch” to lower the “feed tray”. Make sure that the machine stops. If printing is in progress, press the STOP key.
Page 41: How To Set The Print Tray
Preparing for Printing How to Set the Print Tray The following describes how to set the print tray. Open out the “print tray”. V3M0207 Open out the “side fences”. V3M0208 Open out the “paper stopper”. V3M0209 Grasp the “knobs” on the “side fences” and adjust the position according to the paper size.
Page 42: Loading Documents
Loading Documents How to Load Document The document can be loaded in the “portrait” or landscape” position. IMPORTANT ● A4, B5, and A5-size documents can be loaded in the “portrait” or landscape” position. ● Use the portrait position when enlarging or reducing from standard-size documents to standard-size paper, such as A4 to A3.
Page 43: Loading Document In Automatic Document Feeder (Adf)(Optional)
Loading Documents Loading Document in Automatic Document Feeder (ADF)(Optional) Load documents that consist of sheets to be printed in the ADF. When one or more documents are loaded in the ADF, master making and printing are automatically repeated until the docu- ment tray is empty.
Page 44 Loading Documents Place the “document face up” in the document tray. Document Tray Master making starts with the top document in the Printing tray. face up Document IMPORTANT Do not attempt to remove or add to the documents in the document tray while master making and printing are in progress.
Page 45: Basic Printing
Basic Printing Printing Using Basic Functions Press the “I” side on the “power switch”. → P14 "Turning Power ON/OFF" REFERENCE ● When the power is already turned on, press the RESET key. If the last-entered setting remains, press the RESET key. The setting returns to Standard Mode.
Page 46 Basic Printing Check the printing ﬁ nish such as print position and print darkness, etc. Use the NUMERIC keys to enter the “number of prints”. REFERENCE ● You can specify up to 9999 prints. ● If you want to change the “number of prints“, press the CLEAR key and then enter the correct number.
Page 47: Enlargement/Reduction
Enlargement/Reduction Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper [European] You can enlarge or reduce the size of the copy to the desired size from standard-size documents to standard-size paper. ● Enlargement You can make a copy that is enlarged from 141% 122% 115%...
Page 48: Enlargement And Reduction From Standard-Size Document To Standard-Size Paper [U.s.]
Enlargement/Reduction Enlargement and Reduction from Standard-Size Documents to Standard-Size Paper [US] You can enlarge or reduce the size of the copy to the desired size from standard-size documents to standard-size paper. ● Enlargement You can make a copy that is enlarged from 141% 141% 122%...
Page 49: Selecting Printing Paper Size
Selecting Printing Paper Size Master Making Area by Paper Size [European] The following shows the image size that can be scanned for master making. About 8 mm cannot be printed. 約 8 ㎜はプリントできません。これを先端余白といいます。 This margin is deﬁ ned as top margin. Paper Size A (±1%) ×...
Page 50: Master Making Area By Paper Size [U.s.]
Selecting Printing Paper Size Master Making Area by Paper Size [U.S.] The following shows the image size that can be scanned for master making. About 8 mm cannot be printed. 約 8 ㎜はプリントできません。これを先端余白といいます。 This margin is deﬁ ned as top margin. Paper Size A (±1%) ×...
Page 51: How To Set "Custom" In Paper Size Setting
Selecting Printing Paper Size How to Set "CUSTOM" in Paper Size Setting Proceed with steps 1 to 5 of the sequence described in "Basic Printing". (“Basic Printing” → see p.27) Touch "PAPER SIZE". Touch "CUSTOM". Up to 3 custom sizes can be stored. Specify the sizes for A and B.
Page 52: Print Speed Adjustment
Print Speed Adjustment Print Speed Adjustment Print speed can be adjusted in 5 steps between 45 pages per minute and 130 pages per minute, and TOP speed (150 sheets per minute). The default setting when the power is turned ON is about 100 pages per minute (standard speed). However, when default settings have been changed in Initial Conﬁ...
Page 53: How To Set Top Speed
Print Speed Adjustment How to Set TOP SPEED Touch ”TOP SPEED”. A message appears on the touch panel LCD. If you select “YES”, use the paper according to the re- strictions below. If the paper to be used does not meet the restrictions, select “NO”.
Page 55 Chapter Printing with Useful Functions This chapter describes how to make prints using various useful functions..............Enlargement / Reduction ............... Enlargement / Reduction ................Minor Reduction ................Auto Zoom ................Free Zoom ................Custom Scaling ................Adjusting Darkness ..............Adjusting Darkness ................
Page 56: Enlargement / Reduction
Enlargement / Reduction Enlargement / Reduction You can enlarge or reduce the size of the copy to the desired size. A4 document A4 printout ● Minor Reduction → page 39 (90 - 99%) You can make a copy that is slightly smaller (90 - 99%) than the original document.
Page 57: Minor Reduction
Enlargement / Reduction Minor Reduction A4 document A4 printout The copy is printed at 90 - 99% size of the document. Minor reduction is used when you want to make a binding (90~99%) margin or the document has text or illustrations in non-master making area.
Page 58: Auto Zoom
Enlargement / Reduction Auto Zoom * Auto Zoom function is not available on the DP-U550/U520/U510. The machine automatically selects the optimum zoom ratio and proceeds with master making and printing when you load the document to be copied. The auto zoom ratio is automatically selected from the following preset ratios (50% - 500%). ●European 200% A5R→A3 86% A3→B4/A4R→B5R/A4→B5...
Page 59 Enlargement / Reduction Load paper. “Preparing for Printing” → see p.20 IMPORTANT ● If you are using the DP-U550/U520/U510: * Always set the sizes of printing paper and document to be used. * Place document centrally positioned You cannot obtain the correct zoom ratio against the scale.
Page 60: Free Zoom
Enlargement / Reduction Free Zoom You can set a zoom ratio between 50 % and 500% in 1% steps. Document IMPORTANT Select “FREE ZOOM” before starting master making. ● V3M0303 Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. “Basic Printing”...
Page 61: Custom Scaling
Enlargement / Reduction Custom Scaling Vertical direction You can enlarge or reduce the size of the copy in 1% increments between 50% and 500% in vertical/horizontal direction. Document IMPORTANT Set “CUSTOM SCALING” before starting master making. V3M0304 Horizontal direction Document V3M0305 Proceed with steps 1 to 5 of the sequence described in “Basic Printing”.
Page 62 Enlargement / Reduction Touch “CUSTOM SCALING”. Set zoom ratio between 50% and 500% in A (horizontal) and B (vertical). Select A and set the zoom ratio using the “+” and “-” keys. Select B and set the zoom ratio using the “+” and “-” keys. Touching “+”...
Page 63: Adjusting Darkness
Adjusting Darkness Adjusting Darkness If the test print made after master making is too light, adjust the print darkness. If you cannot adjust the print darkness sufﬁ ciently to give a satisfactory print, adjust the master darkness. IMPORTANT ● You can print immediately after adjusting the print darkness. ●...
Page 64: Master Darkness
Adjusting Darkness Master Darkness Master darkness can be adjusted in 5 steps. When the color of the document is light, touch “DARK”. When the color of the document is dark, touch “LIGHT”. IMPORTANT ● Set master darkness before starting master making. How to Adjust Master Darkness Touch “DARKNESS”.
Page 65: Print Darkness
Adjusting Darkness Print Darkness Print darkness can be adjusted in 5 steps. To make the print darker, touch “DARK” (increased ink transfer amount). To make the print lighter, touch “LIGHT” (reduced ink transfer amount). How to Adjust Print Darkness There are 2 ways to adjust print darkness. ●...
Page 66 Adjusting Darkness ● Adjustment on the touch panel LCD Touch “DARKNESS”. Touch “MANUAL”. Touch “DARK” if the color of the document is light. Touch “LIGHT” if the color of the document is dark. Selecting “AUTO” automatically adjusts print darkness depending on print speed. IMPORTANT Even when “PRINT DARKNESS”...
Page 67: Printing Photographs And Color Documents
Printing Photographs and Color Documents TEXT, TEXT>PHOTO, PHOTO>TEXT, PHOTO, PENCIL, SCREEN ● This function includes seven modes for enhancing text and photographic documents. Text mode : Enhances the printing of text documents. TEXT>PHOTO : Enhances the printing of documents with both text and photographs. Especially, suitable for documents containing more text than photographs.
Page 68 Printing Photographs and Color Documents Touch either "SCREEN COARSE" or "SCREEN FINE". "IMAGE MODE" is set and the display returns to the main screen.
Page 69: Adjusting Print Position
15mm in the vertical direction and 10mm in the horizontal direction. DP-U850/U650/U620: Adjusts print position using PRINT POSITION keys. DP-U550/U520/U510: Adjusts only vertical print position using PRINT POSITION keys. (“Adjusting horizontal print position on the DP-U550/U520/U510” → see p.52) IMPORTANT ●...
Page 70 Adjusting Print Position Adjusting horizontal print position on the DP-U550/U520/U510 Turn the feed tray horizontal registration adjuster dial which is located in the right of the feed tray to adjust print position. Turning the dial toward you moves the feed tray to the left. V3M0311 Turning the dial toward the machine moves the feed tray to tray to the right.
Page 71: Edit Function
Chapter Other Functions This chapter describes various functions. Edit Function Preview ......................54 Multiple Exposure ....................57 Book Shadow Erasure ..................66 90° Rotation ....................... 71 Edit Image ......................73 Document Memory .................... 92 Document Size ....................94 Special Function Job Setting Memory ...................
Page 72: Preview
Edit Function: Preview Checking Document To Be Printed You can preview print image to be printed on the touch panel LCD before starting master making. For example, it is convenient to check if the print image can be ﬁ tted in the paper size when enlarged or reduced.
Page 73 Edit Function: Preview Set a document and press the MASTER MAKING key. REFERENCE When no document is placed on the glass, “THERE IS NO DOCUMENT ON SCANNER CONTINUE?” appears. Touch “NO” and set a document. Press the MASTER MAKING key. The document is scanned and the scanned data is displayed on the touch panel LCD.
Page 74 Edit Function: Preview Touch “SHIFT”. The preview screen shifts by touching and moving the screen. Press the MASTER MAKING key or touch “END”. "MAKE A NEW MASTER?” appears. If you touch "YES", master making starts. If you touch “NO”, the display returns to the main screen.
Page 75: Multiple Exposure
Edit Function: Multiple Exposure Multiple Exposure on One Page This mode allows you to print multiple copies of the document on one page and two different documents on one page. ● MULTIPLE EXPOSURE (2, 4, 8, and 16-up) This mode prints multiple copies of the document on one page. Document Document images...
Page 76 Edit Function: Multiple Exposure ● Multiple Exposure (2, 4, 8, and 16-up) This mode allows you to print 2, 4, 8, or 16 copies of the (B4) (B4) document on one page. (B8) (B8) If you are reducing or enlarging, refer to the right diagram (B7) (B7) to set the zoom ratio and the orientation of the document.
Page 77: How To Set Multiple Exposure (2, 4, 8, And 16-Up)
Edit Function: Multiple Exposure How to Set Multiple Exposure (2, 4, 8, and 16-up) Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch "PROPERTY". Touch “EDIT”. Touch “MULTIPLE EXPOSURE”. A list of multiple exposure appears. Touch your preferred multiple exposure (2, 4, 8, or 16-up).
Page 78 Edit Function: Multiple Exposure Touch "END". REFERENCE When “MULTIPLE EXPOSURE” is set, the “MULTIPLE EXPOSURE” icon appears at the bottom of the main screen. When you touch the icon, the setting screen of “MULTIPLE EXPOSURE” appears and you can change the setting. However, if ﬁ...
Page 79: One Page
Edit Function: Multiple Exposure 2 IN 1 Two-in-one (2 IN 1) function allows you to print two small documents on one page and also easily print for creating booklets that will be saddle stitched. This is called “2 IN 1 layout mode”. When you use "2 IN 1 layout mode”, the layout is as follows.
Page 80: How To Set 2 In1
Edit Function: Multiple Exposure How to Set 2 IN1 Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch “PROPERTY”. Touch “EDIT”. Touch “MULTIPLE EXPOSURE”. A list of multiple exposure appears. Touch the screen switch button in the lower right corner of the screen.
Page 81 Edit Function: Multiple Exposure "CUT LINE" screen appears. If you want to put a cut line, touch "ON". If not, touch "OFF". "MULTIPLE EXPOSURE" will be set. REFERENCE To return to "OFF" (standard): ● Touch "MULTIPLE EXPOSURE" and then touch "OFF".
Page 82: Custom
Edit Function: Multiple Exposure Custom You can specify the number to be set for multiple exposure on each side of the paper. How to Set Custom Proceed with steps 1 to 5 of the sequence described in "Basic Printing". (“Basic Printing” → see p.27) Touch "PROPERTY".
Page 83 Edit Function: Multiple Exposure Touch "CUSTOM". "CUSTOM" screen appears. Set the number to be speciﬁ ed on each side and touch "OK". Touching "+" increments the value. Touching "-" decrements the value. The value can be also entered using the NUMERIC keys.
Page 84: Book Shadow Erasure
Edit Function: Book Shadow Erasure Book Shadow Erasure This function erases the shadows caused by book binding when printing an open spread from a book or other folded document. It also erases the shadow around the periphery of the document. REFERENCE If print image is light, use document darkness detection function.
Page 85: Area Of Shadow Erasure
Edit Function: Book Shadow Erasure ● Specify Area Shadow Specify Area Erasure (Set A, B & C) Prints documents with a speciﬁ ed area erased when Document printing an open spread from a book or other folded document. (The erasure area can be selected within the range from 0 to 99mm.) IMPORTANT V3M0410...
Page 86: How To Set Book Shadow Erasure
Touch the document size you want to set. Book shadow erasure is not performed correctly if document size is not selected. REFERENCE ● DP-U850/U650/U620: Selecting “AUTO” automatically sets document size. ● When you select “CUSTOM”, refer to “Document Size”. (“Document Size” → see p.95) ●...
Page 87 Book shadow erasure is not performed correctly if document size is not selected. REFERENCE ● DP-U850/U650/U620: Selecting “AUTO” automatically sets document size. ● If the book you are using is thick and “AUTO” is selected, document size may not be able to be detected correctly.
Page 88 Edit Function: Book Shadow Erasure Specify the sizes for "A", "B", and "C", and then touch "OK". Touch “A” and specify numeric value using the “+” or “-”. Touching “+” widens shadow erasure area. Touching “-” narrows shadow erasure area. The value can be also entered using the NUMERIC keys.
Page 89: 90° Rotation
Edit Function: 90° Rotation 90° Rotation This function is for rotating documents on the digital scan image. There are two types of 90° rotation, clockwise 90° rotation and counterclockwise 90°. This reduces A3-size document placed in the portrait position (to paper feed direction) and produces A4-size printout in the landscape position (to paper feed direction) by setting “ZOOM”...
Page 90 Edit Function: Rotation 90° Touch preferred direction on the touch panel LCD. Clockwise 90°rotation is selected here. "90° ROTATION" is set. REFERENCE To return to “OFF” (standard): ● Touch “90°ROTATION” and then touch “OFF”. ● Press the RESET key. In this case, all settings will be returned to Standard Mode.
Page 91: Edit Image
Edit Function: Edit Image Edit Image This function edits the image of the document. There are two functions, Make Up and Trimming in Edit Image. ● Make Up Make Up function edits the image of the document with both text and photograph for fine master making.
Page 92: How To Set Make Up
Edit Function: Edit Image IMPORTANT ● The table below shows if each edit mode of MAKE UP is available for each image mode for the document. ○ :Available :Available only for the text in the speciﬁ ed area in MAKE UP mode. ×...
Page 93 Edit Function: Edit Image Touch "MAKE UP". Touch the document size you want to set. REFERENCE When the image is scanned with “OFF” in "DOCUMENT SIZE", it is scanned in the set size in "PAPER SIZE". A message, "SCAN DOCUMENT?", appears on the touch panel LCD.
Page 94 Edit Function: Edit Image REFERENCE When "OUTLINE/PATTERN" is touched: Specify pattern using the ▲ or ▼ button. (You can also use the NUMERIC keys.) Specify 18/18 for OUTLINE. Specify the number from 1/18 to 17/18 for PATTERN. Refer to "OUTLINE/PATTERN" on page 79. Touch “OK”.
Page 95 Edit Function: Edit Image 5 Touch "INSIDE" or "OUTSIDE". “INSIDE” is touched here. If you touch “OUTSIDE”, the outside of the speciﬁ ed area is edited in the current mode. (“Using AREA Function” → see p.81) Touch "END". REFERENCE When you want to cancel the speciﬁ ed area, touch "CLEAR".
Page 96 Edit Function: Edit Image Touch "END". REFERENCE When "EDIT IMAGE" is set, the "EDIT IMAGE" icon appears at the bottom of the main screen. When you touch the icon, the setting screen of "EDIT IMAGE" appears and you can change the setting. However, if ﬁ...
Page 97 Edit Function: Edit Image You can select the following patterns and the outlined character.
Page 98 Edit Function: Edit Image ● Using ZOOM Function You can zoom in the image by touching a part of the document with the stylus pen. ZOOM1 < ZOOM2 < ZOOM3 ZOOM1 Displays whole document on the touch panel LCD. ZOOM2 Displays the zoomed-in peripheral area of the touched position with the stylus pen.
Page 99 Edit Function: Edit Image Touch anywhere on the image and move the touched position to the area you want to view while touching it. Remove your ﬁ nger or the stylus pen from the image when the area you want to view appears. REFERENCE To ﬁ...
Page 100 Edit Function: Edit Image Specify the area. 1 Touch the start point of the area you want to specify. 2 Move your ﬁ nger or the stylus pen while touching it to move the area. 3 Remove your ﬁ nger or the stylus pen from the screen to ﬁ...
Page 101 Edit Function: Edit Image ● Specifying “POLYGON” Touch "AREA". Touch "POLYGON". Touch the start point of the area you want to specify. IMPORTANT Decide each point of polygon so that each side of the polygon does not cross. If they cross, incomplete polygonal area is made.
Page 102 Edit Function: Edit Image When the area is completed, touch "OK". Touch “INSIDE” or “OUTSIDE”. “INSIDE” is touched here. If you touch “OUTSIDE”, the outside of the speciﬁ ed area is edited in the current mode. REFERENCE When you want to cancel the speciﬁ ed area, touch “CLEAR”.
Page 103: Add Make Up,Switch Erase Area,New Make Up
Edit Function: Edit Image ADD MAKE UP, SWITCH ERASE AREA, NEW MAKE UP When MAKE UP setting is completed, ADD MAKE UP/SWITCH ERASE AREA/NEW MAKE UP functions are available. ●ADD MAKE UP You can set an additional MAKE UP function after once MAKE UP function is set. ●SWITCH ERASE AREA You can switch erase area between INSIDE and OUTSIDE in ERASE mode under MAKE UP and perform master making and printing.
Page 104 Edit Function: Edit Image Touch "ADD MAKE UP". Touch the mode you want to add. (“Make Up” → see p.73) Touch "END".
Page 105 Edit Function: Edit Image ● Using SWITCH ERASE AREA Function After MAKE UP setting is completed, touch "EDIT IMAGE". Touch "MAKE UP". Touch "SWITCH ERASE AREA". Switching ERASE AREA is completed. Touch "END".
Page 106 Edit Function: Edit Image ● Using NEW MAKE UP Function After MAKE UP setting is completed, touch “EDIT IMAGE”. Touch "MAKE UP". Touch "NEW MAKE UP". Follow step 8 and its following procedures in "How to Set Make Up". (“How to Set Make Up” → see p.74)
Page 107: Trimming
Edit Function: Edit Image Trimming You can cut and print the speciﬁ ed area of the document. When AUTO under ZOOM on the main screen is set, the speciﬁ ed area is automatically zoomed in and zoomed out. When zoom ratio is set, the speciﬁ...
Page 108 Edit Function: Edit Image Touch "TRIM". Touch the document size you want to set. REFERENCE When the image is scanned with “OFF” in “DOCUMENT SIZE”, it is scanned in the set size in “PAPER SIZE”. A message, “SCAN DOCUMENT?”, appears on the touch panel LCD.
Page 109 Edit Function: Edit Image Specify the area. 1 Touch the start point of the area you want to specify. 2 Move your ﬁ nger or the stylus pen while touching it to move the area. 3 Remove your ﬁ nger or the stylus pen from the screen to ﬁ...
Page 110: Document Memory
Edit Function: Document Memory Document Memory Document memory function saves the data from last master making and remakes a master without scanning. Only one document image is saved. IMPORTANT ● Saved image is cleared by turning the power off. ● Saved image is cleared by pressing the RESET key.
Page 111 Edit Function: Document Memory Touch "DOCUMENT MEMORY". IMPORTANT You cannot touch "DOCUMENT MEMORY" if it is displayed in dotted letters. Touch "ON". REFERENCE To return to “OFF” (standard): ● Touch “DOCUMENT MEMORY” and then touch “OFF”. ● Press the RESET key. In this case, all settings will be returned to Standard Mode.
Page 112: Document Size
Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch "DOCUMENT SIZE". Touch the document size to be used. REFERENCE ● DP-U850/U650/U620: Selecting “AUTO” automatically sets document size. ● DP-U550/U520/U510: "AUTO" function is not available. "DOCUMENT SIZE" is set.
Page 113: How To Set "Custom" In Document Size
Edit Function: Document Size How to Set “Custom” in Document Size Touch "DOCUMENT SIZE". Touch "CUSTOM". Set the sizes for “A” and “B”. Touching “+” increments the value. Touching “-” decrements the value. The value can be also entered using the NUMERIC keys.
Page 114: Special Function Job Setting Memory
Special Function: Job Setting Memory JOB Setting Memory You can save the number of prints & sets / memory name / function settings / batch print & sequential batch print in advance. And you can retrieve the saved settings and perform master making and printing.
Page 115 Special Function: Job Setting Memory Touch "SPECIAL". Touch "JOB SETTING MEMORY". Touch the memory no. you want to save. Touch "SAVE/SET". REFERENCE If nothing is saved in the memory, you cannot touch "RETRIEVE" and "CLEAR". Continue Page..
Page 116: Setting Functions
Special Function: Job Setting Memory ● Entering Number of Prints / Sets Entry screen for the number of prints / number of sets appears. Enter the number of prints / number of sets using the NUMERIC keys. Example: Touching "3", " ", “3”, “...
Page 117 Special Function: Job Setting Memory Touch "SWITCH". Touch the icon to save a shortcut. REFERENCE You can set up to 5 shortcuts. Touch the shortcut you want to save. (“Shortcut Setting” → see p.137) REFERENCE ● When you cancel the shortcut, touch “NO SHORTCUT”.
Page 118 Special Function: Job Setting Memory ● Changing Memory Name Touch the memory no. you want to set. Touch "CHANGE NAME". REFERENCE If nothing is saved, you cannot select "RETRIEVE" and "CLEAR". Touch alphanumeric characters to enter. Switches the screen between numerical/capital letters and numerical/small letters.
Page 119: Retrieving Settings
Special Function: Job Setting Memory Retrieving Settings You can retrieve the saved settings, and perform master making and printing. Also, you can add and change, and clear the retrieved number of prints / number of sets in the memory, and multiply the number of sets by 2 - 5 when needed. This change is temporary and the changed setting is not saved.
Page 120 Special Function: Job Setting Memory REFERENCE ● Touch the screen switch button in the lower right corner of the screen. The next screen appears. ● If you touch “RETRIEVE” here, saved settings are retrieved. ● Conﬁ rming Settings Touch "SWITCH". Saved settings appears.
Page 121 Special Function: Job Setting Memory ● Modifying Number of Prints & Sets, Multiplying Number of Sets by 2 - 5 Touch "MODIFY". Touch "INDIVIDUAL MODIFY". Saved numbers of prints and sets appear. Touch the icon you want to modify and enter values using the NUMERIC keys.
Page 122: Clearing Settings
Special Function: Job Setting Memory Clearing Settings You can clear saved settings. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch "PROPERTY". Touch "SPECIAL". Touch "JOB SETTING MEMORY". Touch the memory number you want to clear. REFERENCE Saved memories are preﬁ...
Page 123 Special Function: Job Setting Memory Touch "CLEAR". The saved setting is cleared. Touch "END".
Page 124: Paper Type
Special Function: Paper Type Paper Type This function stabilizes the feeding of heavy weight paper. IMPORTANT When "AUTO" is selected, moving the feed pressure adjuster lever to "heavy" changes paper type to “HEAVY WEIGHT” automatically. How to Set Paper Type Proceed with steps 1 to 5 of the sequence described in “Basic Printing”.
Page 125 Special Function: Paper Type Touch "END". REFERENCE When “HEAVY WEIGHT” is set, the “PAPER TYPE” icon appears at the bottom of the main screen. When you touch the icon, the setting screen of “PAPER TYPE” appears and you can change the setting. However, if ﬁ ve shortcut icons are already displayed, the “PAPER TYPE”...
Page 126: Double Feed Detection
Special Function: Double Feed Detection Double Feed Detection This mode shows double feed of paper on the LCD (touch panel) when it occurs. REFERENCE ● Double feed is sometimes detected when the following papers are fed: colored print paper, paper printed on both sides, reprinted paper, papers in different thickness ●...
Page 127 Special Function: Double Feed Detection Touch "ON". Select detection sensitivity. “DOUBLE FEED DETECTION” is set. REFERENCE ● When double feed is not detected adequately, increase detection sensitivity. ● When double feed is wrongly detected, decrease detection sensitivity. Touch "END".
Page 128: Narrow Paper
Special Function: Narrow Paper Narrow Paper This function is for printing narrow paper. REFERENCE When you use this function, optional Narrow Paper Kit is required. You cannot use narrow paper that is 50mm or smaller in width even with the optional kit. IMPORTANT ●...
Page 129 Special Function: Narrow Paper Touch "ON". “NARROW PAPER” is set. Touch "END". REFERENCE When “NARROW PAPER” is set, the “NARROW PAPER” icon appears at the bottom of the main screen. When you touch the icon, the setting screen of “NARROW PAPER” appears and you can change the setting.
Page 130: Ink Saving Mode
Special Function: Ink Saving Mode Ink Saving Mode This mode will save you up to approximately 20% of ink when printing by changing the document scanning density. IMPORTANT ● Print image may be lighter in this mode. ● Set Ink Saving Mode before making a master. ●...
Page 131 Special Function: Ink Saving Mode Touch "ON". “INK SAVING MODE” is set. Touch "END". REFERENCE When “INK SAVING MODE” is set, the “INK SAVING MODE” icon appears at the bottom of the main screen. When you touch the icon, the setting screen of “INK SAVING MODE”...
Page 132: Replenish Ink
Special Function: Replenish Ink Replenishing Ink This function forcibly replenishes ink to the drum when a new ink pack is installed. How to Replenish Ink Touch "PROPERTY". Touch "SPECIAL". Touch the screen switch button in the lower right corner of the screen. Touch "REPLENISH INK".
Page 133 Special Function: Replenishing Ink Touch "REPLENISHING INK". Ink replenishing starts. When ink replenishing is completed, the machine stops with a beep. Touch "END".
Page 134: Conﬁ Dential Safeguard
Special Function: Conﬁ dential Safeguard Conﬁ dential Safeguard Conﬁ dential safeguard function, which prevents printing unless master making has been completed, is a simple means of prohibiting others from printing sensitive documents. This function ejects the master wound around the drum and wind a new blank master around the drum. IMPORTANT ●...
Page 135 Special Function: Conﬁ dential Safeguard Touch "ON". "EJECT CURRENT MASTER AND PUT NEW BLANK MASTER ON DRUM UNIT?" appears. If you touch "YES", the current master wound around the drum is ejected and a new blank master is wound around the drum. If you touch "NO", the master that is set before setting conﬁ...
Page 136: Document Darkness Detection
Special Function: Document Darkness Detection Document Darkness Detection This function scans the document more ﬁ nely. It scans darkness of the entire document, and distinguishes the brightest part and the darkest part of the document. This is effective for scanning and printing a saddle-stitched document such as book. IMPORTANT ●...
Page 137 Special Function: Document Darkness Detection Touch "ON". “DOC DARKNESS DETECTION” (document darkness detection) is set. Touch "END". REFERENCE When “DOC DARKNESS DETECTION” is set, the “DOC DARKNESS DETECTION” icon appears at the bottom of the main screen. When you touch the icon, the setting screen of “DOC DARKNESS DETECTION”...
Page 138: Interval Print
Special Function: Interval Print Interval Print This function performs printing at regular intervals. You can set a time interval for printing from 1 sec. to 99 sec. ● Batch Each set is printed with the speciﬁ ed number of prints taken as one set at set intervals.
Page 139 Special Function: Interval Print Touch "EACH SHEET" or "BATCH". Enter setting time (1 sec. to 99 sec.). Touching “+” increments the value. Touching “-” decrements the value. The value can be also entered using the NUMERIC keys. Touch "OK". "INTERVAL PRINT" is set. Touch "END".
Page 140: Batch Print Sequential Batch Print
Batch Print Special Function: Sequential Batch Print Batch Print / Sequential Batch Print ● Batch Print The speciﬁ ed number of sets is printed with the speciﬁ ed number of prints taken as one set. You can set up to 90 groups of ‘number of prints’ x ‘number of sets’. When the machine is equipped with the tape cluster (option), tape strips are inserted after each set of prints.
Page 141: How To Set Batch Print / Sequential Batch Print
Special Function: Batch Print / Sequential Batch Print How to Set Batch Print / Sequential Batch Print Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch "PROPERTY". Touch "SPECIAL". Touch the screen switch button in the lower right corner of the screen twice.
Page 142: How To Enter Batch Print / Sequential Batch Print
Special Function: Batch Print / Sequential Batch Print How to Enter Batch Print / Sequential Batch Print Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (“Basic Printing” → see p.27) Touch "number of prints" icon. Enter the number of prints using the NUMERIC keys.
Page 143: Separating Prints With Tape Strips(Available Only With Tape Cluster Unit)
Special Function: Batch Print / Sequential Batch Print Separating Prints with Tape Strips (Available only with Tape Cluster Unit) When only the speciﬁ ed number of sets is printed with the speciﬁ ed number of prints taken as one set, tape strips are inserted between the sheets after each set of prints, automatically separate prints into group.
Page 144: Document Misset Detection
Special Function: Document Misset Detection Document Misset Detection When scanning the document, if no document is placed on the document glass plate or the document is not placed correctly, this function warns you about it. (“Loading Document on the Document Glass Plate → see p.24) IMPORTANT ●...
Page 145 Special Function: Document Misset Detection Touch "ON". "DOC. MISSET. DETEC." (document misset detection) is set. Touch "END".
Page 146: Peripheral Function Online Mode
Peripheral Function: Online Mode Making Prints Using Personal Computer This function allows you to make prints of documents using a personal computer. "ONLINE MODE: AUTO" Master can be made continuously when handling 2 or more documents. "ONLINE MODE: MANUAL" Printing stops every time master making and printing for each document are ﬁ...
Page 147: How To Cancel Reprint When In Manual Setting
Peripheral Function: Online Mode Touch "MANUAL". Touch "END". "ONLINE MODE" is set. REFERENCE In manual mode, printing stops every time master making and printing for each document are ﬁ nished. To start master making for the following document, press the MASTER MAKING key.
Page 148: Tape Cluster
Peripheral Function: Tape Cluster (Available only with Tape Cluster Unit) Using Tape Cluster Tape strips are inserted between the sheets for each set of prints specified, automatically separate prints into group. Refer to the Instruction Manual of “Tape Cluster” for the details. How to Set Tape Cluster Mode Touch "PROPERTY".
Page 149 Peripheral Function: Tape Cluster Touch "END". ● With Printing Function Touch the tape cluster setting you want to set. * ON Inserts tape strips. * OFF Tape stripes are not inserted. “TAPE CLUSTER” is set. Touch "END".
Page 150: Drum Size
Peripheral Function: Drum Size (Available only with A3/A4 Drum) Drum Size This function switches drum size. (A3 / A4) If wrong size of drum is installed, either of the following messages is displayed on the LCD (touch panel). ● A3 DRUM IS SELECTED. CHANGE DRUM UNIT SETTING OR CHANGE TO A3 DRUM UNIT.
Page 151 Peripheral Function: Drum Size Touch “END”.
Page 152: Setting Function Initial Conﬁ Guration
Setting Function: Initial Conﬁ guration Initial Conﬁ guration These defaults can be changed to make operation easier for user. Also, newly changed values can be also returned to their defaults (factory setting). ● Default setting You can change Print speed / Paper size / Zoom / Image mode / Darkness / Document size / Ink saving mode.
Page 153: Default Setting
Setting Function: Initial Conﬁ guration ● Default Setting Touch "DEFAULT SETTING". Touch PRINT SPEED / PAPER SIZE / ZOOM / IMAGE MODE / DARKNESS / DOCUMENT SIZE / INK SAVING MODE and change each setting to the one you prefer. Touch the screen switch button in the lower right corner of the screen.
Page 154 Setting Function: Initial Conﬁ guration ● JOB Setting Memory Touch the memory no. you want to retrieve. REFERENCE Saved memories are preﬁ xed with a memory icon. Touch "SWITCH". You can conﬁ rm saved settings. Touch the screen switch button in the lower right corner of the screen.
Page 155: Shortcut Setting
Setting Function: Shortcut Setting Shortcut Setting You can create shortcut icons for frequently used functions at the bottom of the main screen and can set each function by touching the icon. Up to 5 shortcut icons can be set. ● Items for which you can create shortcut icons Edit Special Peripheral...
Page 156 Setting Function: Shortcut Setting Touch the number to be set. REFERENCE You can set up to 5 shortcuts. Touch the item to be set for shortcut. The setting is saved. Touch "END". Touch "END". The shortcut icon appears at the bottom of the main screen.
Page 157: Energy Save Mode
Setting Function: Energy Save Mode Energy Save Mode This function automatically turns off the touch panel LCD when it is not operated for a speciﬁ ed period of time. (This reduces standby power consumption.) The speciﬁ ed time period can be set from 1 to 99 minutes. Default setting is "5 minutes".
Page 158 Setting Function: Energy Save Mode Touch "ON". Set the time. Touching “+” increments the value. Touching “-” decrements the value. You can set time from 1 to 99 minutes. The value can be also entered using the NUMERIC keys. Touch "OK". “ENERGY SAVE”...
Page 159: Automatic Power Off
Setting Function: Automatic Power OFF Automatic Power OFF This function automatically turns off the machine when it is not operated for a speciﬁ ed period of time. The speciﬁ ed time period can be set from 1 to 99 minutes. Default setting is "OFF".
Page 160 Setting Function: Automatic Power OFF Touch "OK". "AUTOMATIC POWER OFF" is set. Touch "END".
Page 161: Automatic Reset
Setting Function: Automatic Reset Automatic Reset This function automatically resets the machine and returns all settings to Standard Mode when it is not operated for a speciﬁ ed period of time. The speciﬁ ed time period can be set from 1 to 99 minutes.
Page 162 Setting Function: Automatic Reset Touch "ON". Set the time. Touching “+” increments the value. Touching “-” decrements the value. You can set time from 1 to 99 minutes. The value can be also entered using the NUMERIC keys. Touch "OK". "AUTOMATIC RESET"...
Page 163: Fine Start
Setting Function: Fine Start Fine Start When the machine has not been operated for a long time or the drum is replaced, ﬁ rst a few prints may be light. This function enables clear and vivid prints from the beginning of printing, and this reduces wasting paper.
Page 164 Setting Function: Fine Start Touch "FINE START". Select setting. ● “SET FOR EVERY MASTER MAKE” Fine Start functions for every master making. ● “SET FOR NEXT MASTER MAKE” Fine Start functions only once and will be automatically set to “OFF” for its following master making.
Page 165: Optimize Print
Setting Function: Optimize Print Optimize Print This function is for adjusting print darkness and speed according to room temperature to set the best ﬁ nish for the printed mode. You can set temperature from 0 to 35 degree (C) and print speed from 1 to 5.
Page 166 Setting Function: Optimize Print Touch "OPTIMIZE PRINT". Touch "ON". Set room temperature. Touching “+” increments the value. Touching “-” decrements the value. The value can be also entered using the NUMERIC keys. Set print speed. Touching “+” increments the value. Touching “-”...
Page 167: Pre-Print
Setting Function: Pre-print Pre-print This function disables counting a speciﬁ ed number of prints following the start of a printing operation. For example, if you set Pre-print Mode to 3 pages, count function ignores the ﬁ rst three pages printed, and starts counting from the forth printed page. You can set from 1 to 99. Default setting is "OFF".
Page 168 Setting Function: Preprint Touch "ON". Set the number of pre-print. Touching “+” increments the value. Touching “-” decrements the value. You can set the number from 1 to 99 sheets. The value can be also entered using the NUMERIC keys. Touch "OK".
Page 169: Repeat Counter
Setting Function: Repeat Counter Repeat Counter You can select either displaying the number of prints again or displaying "0" on the touch panel LCD after printing completes. How to Set Repeat Counter Touch “PROPERTY”. Touch “SETTINGS”. Touch the screen switch button in the lower right corner of the screen twice.
Page 170 Setting Function: Repeat Counter Touch "ON". "REPEAT COUNTER" is set. Touch "END". IMPORTANT When a document is set on the Automatic Document Feeder (ADF), the number of prints is not cleared after printing completes even "REPEAT COUNTER" is OFF.
Page 171: Print Position Adjustmen (While Printing)
Setting Function: Print Position Adjustment (While Printing) Print Position Adjustment While Printing You can adjust print position while printing by pressing the PRINT POSITION keys. IMPORTANT ● If you adjust print position while printing, print position accuracy and paper feed performance may deteriorate.
Page 172 Setting Function: Print Position Adjustment (while printing) Touch "ON". ”PRINT POSI. ADJ. (P)” (Print Position Adjustment while printing) is set. Touch "END". IMPORTANT Print position display changes from "in mm" to “in steps”. Adjustment range: Vertical 30 steps ● Horizontal 20 steps You can adjust print position while printing by ●...
Page 173: Date & Time
Setting Function: Date & Time Date & Time This function sets date and time. IMPORTANT When “OUT OF BATTERY” is displayed, Fine Start does not function normally. Contact the dealer/distributor for replacing the battery. How to Set Date & Time Touch “PROPERTY”.
Page 174 Setting Function: Date & Time Touch the icon you want to change and set date and time. Touching “+” increments the value. Touching “-” decrements the value. The values can be also entered using the NUMERIC keys. REFERENCE Touching the clock time icon on the main menu also displays the setting screen for “DATE &...
Page 175: Buzzer
Setting Function: Buzzer Buzzer This function selects buzzer ON or OFF and sets the volume of the buzzer. How to Set Buzzer Touch "PROPERTY". Touch “SETTINGS”. Touch the screen switch button in the lower right corner of the screen twice. Touch “BUZZER OPTION”.
Page 176 Setting Function: Buzzer Touch buzzer sound to be set. ●OPERATION BUZZER Sets "OPERATION BUZZER" to ON or OFF and adjusts the volume. ●COMPLETION BUZZER Sets "COMPLETION BUZZER" to ON or OFF and adjusts the volume. ●ERROR BUZZER Sets "ERROR BUZZER" to ON or OFF and adjusts the volume.
Page 177: Lcd Reversing
Setting Function: LCD Reversing LCD Reversing This function reverses the touch panel LCD in black and white. How to Set LCD Reversing Touch "PROPERTY". Touch "SETTINGS". Touch the screen switch button in the lower right corner of the screen three times. Touch "LCD REVERSING".
Page 178 Setting Function: LCD Reversing Touch "ON". The touch panel LCD is reversed in black and white. Touch “END”.
Page 179: Information
Setting Function: Information Information You can check the total number of master making, total number of prints, roll master remaining amount, used master disposal status, date & time, and the details of shortcut setting. How to Conﬁ rm Information Touch “PROPERTY”. Touch “SETTINGS”.
Page 180 Setting Function: Information You can check TOTAL MASTER MAKE COUNT (to- tal number of master making), TOTAL PRINT COUNT (total number of print count), MASTER ROLL MONITOR (remaining master), USED MASTER MONITOR (used master disposal status), date & time. Touch the screen switch button in the lower right corner of the screen.
Page 181 Chapter Replacing Consumables This chapter describes how to replace consumables such as roll master and ink pack, etc. Replacing Ink Pack ....................164 Replacing Ink Pack ..................164 How to Replace Ink Pack ................164 Replacing Roll Master ..................166 Replacing Ink Pack ..................
Page 182: Replacing Ink Pack
Replacing Ink Pack Replacing Ink Pack The message “NO INK” is displayed on the touch panel LCD when the remaining ink is low. Replace the ink pack according to the following procedures. IMPORTANT ● Use ink packs designed only for use in this machine. ●...
Page 183 Replacing Ink Pack Insert the “ink pack” so that the “groove on the lip” ﬁ ts onto the ”U” groove of the “holder”. V3M0505 V3M0506 Make sure the “ink pack” is pushed in all the way to the bottom and then push the “ink holder” back. V3M0508 Close the “front cover”.
Page 184: Replacing Roll Master
Replacing Roll Master Replacing Roll Master The message “NO MASTER” is displayed on the touch panel LCD when the roll master is used up. Replace the roll master according to the following procedures. IMPORTANT ● Use a roll master designed only for use in this machine. ●...
Page 185 Replacing Roll Master Take out a “new roll master” from the bag. Insert the “roll master” in the direction shown in the ﬁ gure on the right. V3M0513 Peel off and pull out the seal. V3M0514 Pull out the “master”, insert it under the “bar”, and align its leading edge with the “set line”.
Page 186 Replacing Roll master Slide the “scanner unit” to return it to its original position. The master will be automatically pulled in. V3M0517...
Page 187: How To Dispose Of Used Masters
How to Dispose of Used Masters How to Dispose of Used Masters The message “REMOVE USED MASTER” is displayed on the touch panel LCD when the master ejection core is full. Dispose of used masters wound onto the ejection core according to the following procedure.
Page 188 How to Dispose of Used Masters Insert the “master ejection core” after removing the core. V3M0521 Gently close the “master ejection box cover”, and push it in until it locks in place. V3M0522 Close the “master ejection box”, and push it in until it locks in place.
Page 189: Replacing Drum Unit
Replacing Drum Unit Replacing Drum Unit ● Avoid pressing and damaging the drum surface with ﬁ ngers etc. It can stain your clothes and the warp in the drum surface may cause bad prints. ● Always place the drum unit on a ﬂ at and stable surface. Otherwise, the drum surface may be damaged or warped and may cause bad prints.
Page 190: How To Set Drum Unit
Replacing Drum Unit Make sure the LED lights up. Pull out the "drum" toward you while holding the "drum release lever" until it comes to a stop. V3M0526 Grip the “upper drum shaft” with your other hand, and pull the drum out toward you while slightly lifting near end of the “drum”.
Page 191 Replacing Drum Unit Close the "font cover". V3M0530...
Page 192: Replacing Separator Unit
Replacing Separator Unit Replacing Separator Unit You can easily replace the separator unit (option) with the one having different hardness. Turn off the power to the machine. Pull the “clip” on the right side of the right paper feed roller toward you. V3M0531 Slightly lift up the “shaft”...
Page 193: Replacing Side Separator Unit
Replacing Side Separator Unit Replacing Side Separator Unit Turn off the power to the machine. Pull the “clip” on the right side of the right paper feed roller towards you. V3M0534 Slightly lift up the “shaft” as shown in the right picture and move the “right paper feed roller”...
Page 195: Troubleshooting
Chapter Troubleshooting This chapter describes what to do when an error has occurred and how to deal with paper jams and error messages. If Trouble Occurs ....................178 If Trouble Occurs ..................178 When Messages Appear ..................179 Supplying Paper While Printing ................182 If Paper Runs Out During Printing ..............
Page 196: If Trouble Occurs
If Trouble Occurs If Trouble Occurs If trouble occurs, ﬁ nd the same phenomenon and message in the following tables and deal with it before contacting our service person. If the problem still persists, then contact our service person. Phenomenon Check Point Solution The machine does not start...
Page 197: When Messages Appear
When Messages Appear The touch panel LCD displays messages, cause and solution. When a message appears, follow the instructions on the touch panel LCD. Error messages are displayed in one of two ways, either by text or by number. Message Cause and Solution NO PAPER Cause: There is no paper on the feed tray.
Page 198 When messages appear Message Cause and Solution NO DRUM Cause: A drum unit is not set. Solution: Set a drum unit. NO INK Cause: There is no ink. Solution: Replace ink pack with a new one. DRUM IS NOT IN POSITION Cause: The drum unit is not in position to be removed.
Page 199 When messages appear Machine with tape cluster installed * Refer to the Instruction Manual of Tape Cluster for the details. Message Cause and Solution TAPE CLUSTER EMPTY Cause: There is no tape. Solution: Set a new tape. CLOSE TAPE CLUSTER Cause: The tape cluster cover is open.
Page 200: Supplying Paper While Printing
Supplying Paper While Printing If Paper Runs Out During Printing If paper runs out during printing, printing stops and the feed tray is lowered automatically. And “NO PAPER” message is displayed on the touch panel LCD. If paper runs out during printing, "NO PAPER" is displayed on the touch panel LCD.
Page 201: Changing Paper Size
Supplying Paper While Printing Align the stack to be added and place it on top of the existing stack. Press the stack lightly toward the machine. Press the PRINT key. The “feed tray” will rise automatically and printing will resume. REFERENCE When you press the STOP key, printing stops.
Page 202 Supplying Paper While Printing When paper size setting is other than "AUTO", set paper size. → P.30 “How to Set Paper Size”) Press the PRINT key. The “feed tray” will rise automatically and printing will resume. V3M0628...
Page 203: Paper Jams
Paper Jams Paper Jam on the Feeder Side (Feed Tray) When a paper jam occurs in the feed tray side, the message “PAPER JAM ON THE FEEDER SIDE” is displayed on the LCD. Follow the procedure below to remove the jammed paper. Press the “feed tray descend switch”...
Page 204: Paper Jam On The Ejection Side (Print Tray Side)
Paper Jams Paper Jam on the Ejection Side (Print Tray Side) When a paper jams ocurrs in the print tray side, “PAPER JAM ON THE EJECTION SIDE” is displayed on the LCD panel. Follow the procedure below to remove the jammed paper. Open the "master ejection box"...
Page 205: Paper Adhering To Drum
Paper Jams Paper Adhering to Drum If paper has adhered to the drum, follow the procedure below to remove it. Open the “master ejection box” by pressing the “master ejection box open button”. V3M0615 Press the “paper eject switch” repeatedly to ﬁ nd the Paper adhering to the drum position of the stuck paper.
Page 206 Paper Jams Pull the paper toward the ejection side while pressing the “paper eject switch” to peel off the paper. Remove IMPORTANT 用紙排出スイッチ Paper eject switch Make sure that the peeled paper does not stick to your clothing. V3M0618 Paper eject switch V3M0619 Close the “master ejection box”...
Page 207: When "Master Ejection Error" Is Displayed
When “MASTER EJECTION ERROR” is Displayed When an old master remains on the drum, “MASTER EJECTION ERROR” is displayed on the touch panel LCD. Remove it according to the following procedure below. WARNING ● Do not press the surface of the drum unit with your ﬁ ngers or scratch it. Doing so will not only dirty your ﬁ...
Page 208 When “MASTER EJECTION ERROR” is Displayed Lift up the “drum stopper” and turn the drum by hand to set the “Lever” in step 5 to an easily operable position. V3M0624 Push down the “lever”. The “master clamp” opens and the edge of the master will be released from the clamp.
Page 209 When “MASTER EJECTION ERROR” is Displayed Hold the “drum” horizontally and press it in gently until it comes to a stop. V3M0628 Close the “front cover”. V3M0630 Press the STOP key. The message is deleted. V3M0631 Make another master.
Page 210: When Master Setting Error Has Occurred
When Master Setting Error Has Occurred The message “MASTER SETTING ERROR” is displayed on the touch panel LCD. Follow the procedure below to remove the master jammed in the feed section, and try master making again. How to Remove the Master Press the “scanner button”...
Page 211: When "Set Master Roll Properly" Is Displayed
When “SET MASTER ROLL PROPERLY” is Displayed The message “SET MASTER ROLL PROPERLY” is displayed on the touch panel LCD. Follow the procedure below to set a master again. IMPORTANT Only use a master roll (roll master) designed for use in this machine. How to Set the Master Roll Press the “scanner button”...
Page 212 When “SET MASTER ROLL PROPERLY” is Displayed Pull out the “master”, insert it under the “bar”, and align its leading edge with the “set line”. Set line V3M0637 IMPORTANT Thermal head heat generator Do not touch the heat generator of thermal ●...
Page 213: Daily Maintenance
Chapter Daily Maintenance This chapter describes daily maintenance of the machine. Daily Maintenance ....................196...
Page 214: Daily Maintenance
Daily Maintenance ● How to maintain the machine Clean the machine periodically to maintain its performance. WARNING ● Before cleaning, be sure to turn the power off, wait until the machine cools off and unplug the power cord. Otherwise, ﬁ re or electric shock may occur. ●...
Page 215: Speciﬁ Cations / Information
Chapter Speciﬁ cations / Information This chapter describes speciﬁ cation and information on replacing battery. Speciﬁ cations ...................... 198 Information on Replacing Battery ................ 202...
Page 216: Speciﬁ Cations
Speciﬁ cations Model name DP-U850 DP-U650 DP-U620 DP-U550 DP-U520 DP-U510 Model Floor stand model Master making Thermal digital master making method Master making 18 sec 15 sec 16 sec 18 sec 20 sec 20 sec interval (A4, 100%) (A4, 100%)
Page 217 Zoom: 50 - 500% Auto zoom: 50, 57, 61, 70, 81, 86, 100, 115, 122, 141, (163), 173, (200)% (Auto zoom: DP-U850/U650/U620 only) ((163%) and (200%) are available on the DP-U850/U650 only.) <Inch size spec> 100% Preset reduction/enlargement: 50, 64, 77, 121, 129, 154%...
Page 218 Speciﬁ cations Model name DP-U850 DP-U650 DP-U620 DP-U550 DP-U520 DP-U510 Other function Master re-make (Document memory) Document density detection Feed heavy weight paper (Paper type)(standard/heavy weight) (U550/U520/U510 only) (U850/U650/U620: paper type is automatically detected by feed pressure setting.) Repeat counter (default print number on/off)
Page 219 USB interface (USB2.0 Full-Speed) Parallel interface (IEEE1284) LAN unit (built-in type) Long paper unit Narrow paper kit Heavy paper guide Adjustable exit guide User ID Manager Duplo print server FS-100U Duplo MASTER DRU85 DRU65 DRU62 DRU55 DRU52 DRU51 A3, 600dpi...
Page 220: Information On Replacing Battery
Information on Replacing Battery Battery is replaced and retrived by our service person. Retreived battery is properly disposed by our waste disposer in consideration of recycle and environment.
Page 221: Appendix
Appendix This chapter lists an index. Index ........................204...
Page 222: Index
Index Other CONTROL keys …………………………… 1 2 2in1…………………………………………… 6 1 Control Panel …………………………… 8, 12 16-up ………………………………… 57, 58, 59 Custom ……………………………………… 6 4 2-up ………………………………… 57, 58, 59 Custom Scaling …………………………… 4 3 4-up ………………………………… 57, 58, 59 CUT LINE …………………………………… 5 7 8-up …………………………………...
Page 223 Index How to Dispose of Used Masters ……… 169 Master ejection box open button …10, 169, 186, 187 How to Enter Batch Print/Sequential Batch Print … 124 Master ejection core ………………… 10, 169 How to Load Document ………………… 2 4 MASTER EJECTION ERROR ……………...
Page 224 Index PRINT POSITION key……………………12, 51 Specify Area ……………………………67, 69 Print Speed ………………………………… 3 4 Standard Mode ……………………… 15, 134 PRINT SPEED key ………………………12, 34 STOP key …………………………………… 1 2 Print tray ………………………………… 11, 23 Supplying Paper While Printing ………… 182 PROPERTY …………………………………...
Page 225 Reproduction Prohibited Duprinter DP-U850/U650/U620/U550/U520/U510 Instruction Manual 1st printing : February 2010 PRINTED IN JAPAN...

This manual is also suitable for:

Dp-u620 Dp-u510 Dp-u650 Dp-u550 Dp-u520

Duplo DP-U850 Instruction Manual

Notes on Safety (Please Read and Observe)

Function Index

Chapter 4 Chapter 3

Other Functions

Before Use

Chapter 1 Part Names and Their Functions

Turning Power ON/OFF

Document/Printing Paper Speciﬁ Cations

How Master Making and Printing Are Performed

Chapter 2 Basic Operations

Preparing for Printing

Loading Documents

Basic Printing

Enlargement/Reduction

Selecting Printing Paper Size

Print Speed Adjustment

Chapter 3 Enlargement / Reduction

Adjusting Darkness

Printing Photographs and Color Documents

Adjusting Print Position

Edit Function

Preview

Multiple Exposure

Book Shadow Erasure

90° Rotation

Edit Image

Document Memory

Document Size

Special Function Job Setting Memory

Job Setting Memory

Paper Type

Double Feed Detection

Narrow Paper

Ink Saving Mode

Replenish Ink

Conﬁ Dential Safeguard

Document Darkness Detection

Interval Print

Batch Print Sequential Batch Print

Document Misset Detection

Peripheral Function Online Mode

Online Mode

Tape Cluster

Drum Size

Setting Function Initial Conﬁ Guration

Initial Conﬁ Guration

Shortcut Setting

Energy Save Mode

Automatic Power off

Automatic Reset

Fine Start

Optimize Print

Pre-Print

Repeat Counter

Print Position Adjustmen (While Printing)

Date & Time

Buzzer

LCD Reversing

Information

Replacing Roll Master

How to Dispose of Used Masters

Replacing Drum Unit

Replacing Separator Unit

Replacing Side Separator Unit

Troubleshooting

Chapter 6

If Trouble Occurs

When Messages Appear

Supplying Paper While Printing

Paper Jams

When "MASTER EJECTION ERROR" Is Displayed

When Master Setting Error Has Occurred

When "SET MASTER ROLL PROPERLY" Is Displayed

Chapter 7

Daily Maintenance

Daily Maintenance

Speciﬁ Cations / Information

Speciﬁ Cations

Information on Replacing Battery
