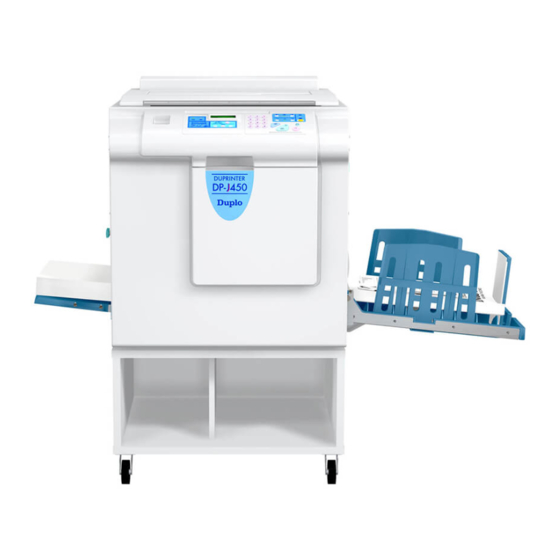

DUPRINTER
DP-J450
Instruction Manual
For this machine to be used safely, it MUST be operated correctly
and serviced regularly. Therefore, read this instruction manual
thoroughly before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-J450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duplo DP-J450

Summary of Contents for Duplo DP-J450

  • Page 1 DUPRINTER DP-J450 Instruction Manual For this machine to be used safely, it MUST be operated correctly and serviced regularly. Therefore, read this instruction manual thoroughly before using the machine.

  • Page 2: Introduction

    ■ Introduction Thank you for your purchase of the DUPRINTER DP-J450. To ensure safe and efficient prolonged use of this machine, read and thoroughly understand this manual before using this machine. After using this manual, be sure to keep it in a place for handy reference.
  • Page 4 MEMO...

  • Page 5: Safety Precautions

    Notes on Safety (Please Read and Observe) Safety Precautions Various symbols and pictures are used in this manual and on the labels affixed to the machine. These symbols and pictures provide warnings and instructions to prevent danger to you or other personnel, and to prevent damage to office property.
  • Page 6 CAUTION ● Some paper may cause paper dust in the machine. Keep clean the machine and sufficient ventilation. ● Caution for Grounding (Be sure to use the supplied power cord) WARNING ● Use only the power cord that is provided among the accessories. Insert the power cord plug firmly into the socket, so that proper electrical contact is effected.
  • Page 7 ● Prohibition of Disassembly or Modification WARNING ● Do not modify the machine. → Doing so may result in fire or electric shock. ● Do not remove the rear lid, cabinet, or covers from the machine. → The inside of the machine contains high-voltage parts, which may cause electric shock.
  • Page 8 WARNING ● Install the machine on the optional cabinet. ● Do not use any other desks or table than optional cabinet. ● Do not place the machine on the desk. → If the machine is dropped or falls over, this could result in personal injury. ●...

  • Page 9: Locations Of Warning Labels

    ■ Locations of Warning Labels Keep the WARNING and CAUTION labels clean at all times. If labels become damaged or come off, please call our service person. NO. Parts No. Name Q’ty L1-T3060 Warning label M7-T3060 Caution label R8-T3080 Warning label R8-T3010 Warning...

  • Page 10: Table Of Contents

    Contents Introduction - Notes on Safety Introduction ····························································································································· i Notes on Safety ····················································································································· iv Locations of Warning Labels ································································································ viii Before Use ■ Part Names and Their Functions ······················································································ 2 Printer Appearance (including options) ··········································································· 2 ● Inside of Printer ················································································································· 3 ●...
  • Page 11 ■ Enlargement / Reduction ··································································································· 24 Enlargement / Reduction from standard-size documents to standard-size paper ······· 24 ● Minor Reduction ··············································································································· 26 ● Free Zoom ······················································································································· 28 ● ■ Adjusting Darkness ··········································································································· 30 Master Darkness ·············································································································· 30 ● ■ Selecting Document Type ································································································· 32 TEXT, TEXT/PHOTO, PHOTO ·····················································································...

  • Page 12: Before Use

    Before Use...

  • Page 13: Part Names And Their Functions

    ■ Part Names and Their Functions ● Printer Appearance (including options) Scanner cover Keeps the document in contact with the document glass plate. Glass The document is placed on this glass. Scale Control panel Feed tray descend switch Scanner open Press to lower the button feed tray.

  • Page 14: Inside Of Printer

    ● Inside of Printer Master cover Master roll Cutter Scanner unit Master set lever Master cover release lever Drum handle Ink pack Ink holder...

  • Page 15: Outside / Inside Of Print Output Side

    ● Outside / Inside of Print Output Side Master ejection section Master ejection core Use to dispose of used master. Master ejection box cover release lever Press to open the master ejection box cover. Master ejection box release button JOG switch Power switch Key card counter (Optional)

  • Page 16: Control Panel

    ● Control Panel 10 11 13 14 15 16 18 19 20 No. Name Function Clip holder Document mode The lamp of the selected mode lights. (text, photograph, indicator lamp text/photograph) Both lamps light when text/photograph mode is selected. Pen holder LCD Panel Displays current settings such as number of printed sheet.

  • Page 17: Display Screen

    18 STOP key Stops printing. When this key is pressed during making a master, the machine stops after making a master. 19 TEST PRINT key Prints 1 copy to check the image position and density. 20 RESET key Returns setting to standard mode. Setting not stored is cleared. ●...

  • Page 18: Turning Power On/Off

    ■ Turning Power ON/OFF ● Turning Power ON 1. Connect the “female plug” of the power supply cord to the “inlet”. 2. Connect the “male plug” of the power supply cord to the “outlet”. 3. Press the “I” side on the “power switch”. The printer is ready when the initial screen appears on the LCD panel.

  • Page 19: Standard Mode

    ■ Standard Mode When the printer power is first turned ON or the RESET key is pressed, the functions are reset to standard mode. Standard mode settings are as follows: The settings are different if the default settings are changed. Print quantity Print position : Center lamp indicating standard print position lights up.

  • Page 20: Document / Printing Paper Specifications

    ■ Document / Printing Paper Specifications ● Acceptable Documents ● Document glass plate * Sheet documents and books not exceeding 10kg * Size: 297mm × 432mm (max.) ● Automatic document feeder (ADF)(optional) * Document thickness : 64gsm - 128gsm * Document size : 297mm ×...

  • Page 21: How Master Making And Printing Are Performed

    ■ How Master Making and Printing are Performed ● Master Making In the “master making” process, the old master on the drum is removed while the thermal head creates the scanned image on the new master and transfers it onto the drum. Master roll Master ejection box Drum...

  • Page 22: Basic Operations

    Basic Operations...

  • Page 23: Preparing For Printing

    ■ Preparing for Printing ● How to Set Papers 1. Open the “support tray”. 2. Adjust the “side guide” according to the paper size. A3 / A4 3. Fan sheets and align them. 4. Put the sheets between the “side guides” and push them to the inside.

  • Page 24: How To Supply Or Change Paper While Printing

    ● How to Supply or Change Paper While Printing If paper runs out during printing or when you change paper, press the “feed tray descend switch” to lower the “feed tray”. 1. Make sure that the machine stops. If printing is in process, press the STOP key.

  • Page 25: How To Set The Print Tray

    ● How to Set the Print Tray 1. Open out the “print tray”. 2. Open out the “paper stacker guides”. 3. Open out the “paper stopper”. 4. Adjust the “paper stacker guides” and “paper stopper” to the size of the printing paper.

  • Page 26: Loading Documents

    ■ Loading Documents ● Loading Document on Document Glass Plate The document can be loaded in the “portrait” or landscape” position. IMPORTANT: A4, B5, and A5-size documents can be loaded in the “portrait” or landscape” position. Use the landscape position when enlarging or reducing from standard-size documents to standard-size paper, such as A4 to A3.

  • Page 27: Loading Document In Automatic Document Feeder (Adf) (Optional)

    ● Loading Document in Automatic Document Feeder (ADF) (Optional) Load documents that consist of a series of sheets to be printed in the ADF. When one or more documents are loaded in the ADF, master making and printing are automatically repeated until the document tray is empty. IMPORTANT: ADF mode is automatically selected when a document is loaded in the ADF.

  • Page 28: Basic Printing

    ■ Basic Printing ● Printing Using Basic Functions 1. Press the “I” side on the “power switch”. NOTE: Turning Power ON/OFF → See page 7. 2. Load paper. NOTE: Preparing for Printing → See page 12. 3. Load the document. NOTE: Loading Documents →...
  • Page 29 9. Use the NUMERIC keys to enter the “number of prints”. REFERENCE: You can specify up to 9999 prints. If you desire to change the “number of prints“, press CLEAR key and then enter the correct number. 10. Press the PRINT key.

  • Page 30: Adjusting Print Position

    ■ Adjusting Print Position ● Print Position Adjustment Function After master making has finished, you can fine-tune the position of the printed image ±15mm in the vertical direction. REFERENCE: ● Pressing and holding the PRINT POSITION key continuously adjusts print position.

  • Page 31: Adjusting Print Speed

    ■ Adjusting Print Speed ● Print Speed Adjustment Function Print speed can be adjusted in 3 steps between 60 pages and 120 pages per minute. The default setting when the power is turned ON is about 90 pages per minute (standard speed).

  • Page 32: Printing With Useful Functions

    Printing with Useful Functions...

  • Page 33: Selecting Master Making Size

    ■ Selecting Master Making Size ● Master Making Size The following shows the image size that can be scanned for Master Making. About 8mm cannot be printed. This margin is known as the top margin. European U.S. Paper siz e A( 1 %) B ( 1 %) Paper siz e...
  • Page 34 3. Press the SELECT key. 4. Select the desired size by pressing the ARROW key (right). Each time the ARROW key (right) is pressed, the arrow moves as follows. European paper size → A3 → B4 → A4R → B5R → A5R → POST CARD → A4 → B5 → A5 → MAX M A S T E R S I Z E →...

  • Page 35: Enlargement / Reduction

    ■ Enlargement and Reduction ● Enlargement / Reduction from standard-size documents to standard-size paper Enlargement You can make a copy that is enlarged from standard-size document to standard-size paper. 141% 115% 122% European paper sizes 141% A4R→A3 / B5R→B4 / A5R→A4R 122% A4R→B4 / A5R→B5R 115%...
  • Page 36 3. Press the ARROW key (right) several times to display the ZOOM screen (Rratio setting screen). ZOOM 100% 4. Press the SELECT key. 5. Select the desired ratio by pressing the ARROW key (right) or ARROW key (left). Each time the ARROW key (left or right) is pressed, the arrow moves as follows. European paper sizes →...

  • Page 37: Minor Reduction

    ● Minor Reduction The copy is printed at 94% size of the document. A4 document A4 printout Minor reduction is used when you desire to make a binding margin or the document has text or illustrations in non-master making area. IMPORTANT: Select MINOR REDUCTION before master (94 %)
  • Page 38 6. Press the SELECT key. The desired ratio, x94%, is set. X94% 7. Press the FUNCTION key. Stand-by screen appears. REFERENCE: To return to “100%”, use one of the following two methods: ● Return to the x94% setting screen and select OFF. ●...

  • Page 39: Free Zoom

    ● Free Zoom You can set a zoom ratio between 50 % and 200% in 1% steps. IMPORTANT: Document Select “FREE ZOOM” before master making. ►How to Set Free Zoom 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. “Basic Printing”.
  • Page 40 7. Press the SELECT key. The entered values are fixed. FREE ZOOM 7 0 % 8. Press the FUNCTION key. Stand-by screen appears. REFERENCE: To return to “100%”, use one of the following two methods: ● Return to the FREE ZOOM screen (Free Zoom setting screen) and select OFF. ●...

  • Page 41: Adjusting Darkness

    ■ Adjusting Darkness ● Master Darkness Master darkness can be adjusted in 5 steps. When the color of the document is light: → adjust the master darkness darker by pressing the ARROW key (right). When the color of the documents is dark: →...
  • Page 42 ● When the color of the documents is dark, adjust the master darkness lighter by pressing the ARROW key (left). ● Default setting is +/-0. 6. Press the SELECT key. The desired Master Darkness is set. MASTER DARKNESS −１ 7. Press the FUNCTION key.

  • Page 43: Selecting Document Type

    ■ Selecting Document Type ● TEXT, TEXT/PHOTO, PHOTO This function includes three modes for enhancing text and photographic documents. TEXT : Enhances the printing of text documents. TEXT/PHOTO : Enhances the printing of documents with both text and photographs. PHOTO : Enhances the printing of the subtle gradations of photographs and light images from color documents.
  • Page 44 6. Press the SELECT key. The desired Image Mode is set. IMAGE MODE PHOTO 7. Press the FUNCTION key. Stand-by screen appears. REFERENCE: To return to standard, use one of the following methods: ● Return to the IMAGE MODE screen (Document Type setting screen) and select TEXT. ●...

  • Page 45: Printing With Various Functions

    Printing with Various Functions...

  • Page 46: Batch Print / Sequential Batch Print

    ■ Batch Print / Sequential Batch Print ● Type of Batch Prints ● Batch Print Only the specified number of sets is printed with the specified number of prints taken as one set. You can enter up to 15 groups of number of prints x number of sets. The machine with tape cluster (option) inserts the tape after each set of prints.

  • Page 47: How To Enter The Numeric Values For Batch Print

    ►How to Enter the Numeric Values for Batch Print 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Enter the number of prints using the NUMERIC keys. If you make a mistake, start over again by pressing the CLEAR key and start from the beginning.
  • Page 48 9. Press the PRINT key. Printing starts again. 10. Repeat the steps 8 and 9 until the entered sets are completed. IMPORTANT: ● The MASTER MAKING key will not work until all the sets have been printed. ● Press the STOP key and then the CLEAR key to abort the print run.

  • Page 49: How To Enter The Numeric Values For Sequential Batch Print

    How to Enter the Numeric Values for Sequential Batch Print ► (Available only with ADF installed) 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Press the key. The number of prints/sets blinks and the machine enters sequential batch setting mode.

  • Page 50: Dividing Sections With Tape

    10. Press the PRINT key. Printing starts again. 11. Repeat the steps 9 and 10. 12. After the print run for the first document has completed, master making for the second document is performed automatically and printing starts. 13. Repeat the steps 9 through 11 until the entered sets are completed.

  • Page 51: Multiple Printing

    ■ Multiple Printing ● Multiple Printing on One Page This mode allows you to print multiple copies of the document on one page and two different documents on one page. Multiple Printing This mode prints multiple copies of the document on one page. 2 images 4 images 8 images...
  • Page 52 This mode allows you to print 2, 4, or 8 copies of the document on one page. (B8) If you are reducing or enlarging, refer to the right diagram to select the zoom ratio and the orientation (B7) of the document. (B5) (B6) ●...
  • Page 53 How to Set Multiple Printing ► 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Press the FUNCTION key. 3. Press the ARROW key (right) several times to display the MULTI EXPOSURE screen (Multi Printing setting screen).
  • Page 54 7. Press the FUNCTION key. Stand-by screen appears. REFERENCE: If you return to standard: use one of the following methods. ● Return to the MULTI EXPOSURE screen (Multi Printing setting screen) and then select OFF. ● Press the RESET key. In this case, all settings are reset to standard mode.

  • Page 55: 2-In-1 Layout (Available Only With Adf Installed)

    ● 2-in-1 Layout (Available only with ADF installed) Two-in-one (2-in 1) mode allows you to print two small documents on one page and also easily print for creating booklets that will be saddle stitched. When you use 2-in-1 mode, the layout is as follows: Document Printout 1 Printout 2...
  • Page 56 How to Set 2-in-1 Layout ► 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Press the FUNCTION key. 3. Press the ARROW key (right) several times to display the MULTI EXPOSURE screen (Multi Printing setting screen).
  • Page 57 REFERENCE: If you return to standard: use one of the following methods. ● Return to the MULTI EXPOSURE screen (Multi Printing setting screen) and then select OFF. ● Press the RESET key. In this case, all settings are reset to standard mode. If you experience problems with layout, check the followings: ●...

  • Page 58: Shadow Erasure

    ■ Shadow Erasure ● Shadow Erasure This mode erases the shadows caused by the book binding when printing an open spread from a book or other folded document. It also erases the shadow around the periphery of the document. IMPORTANT: ●...
  • Page 59 How to Set Shadow Erasure ► 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Press the FUNCTION key. 3. Press the ARROW key (right) several times to display the SHADOW ERASURE screen (Shadow Erasure setting screen).
  • Page 60 7. Press the FUNCTION key. Stand-by screen appears. REFERENCE: If you return to standard: use one of the following methods. ● Return to the SHADOW ERASURE screen (Shadow Erasure setting screen) and then select OFF. ● Press the RESET key. In this case, all settings are reset to standard mode.

  • Page 61: Memory Mode

    ■ Memory Mode ● Saving / Retrieving / Confirming Settings You can save master making setting and print setting. And you can also retrieve the settings saved and perform master making and printing. ● Saving Settings The following settings are saved: Number of prints (including sets) ZOOM /FREE ZOOM ratio MASTER SIZE...
  • Page 62 6. Select “SAVE” by pressing the ARROW key M E M O R Y M O D E (right). Each time the ARROW key (right) is pressed, → S A V E the arrow moves as follows. → RETRIEVE → SAVE → CLEAR → CANCEL 7.

  • Page 63: Retrieving Settings

    ● Retrieving Settings You can retrieve the settings saved and perform master making and printing. Also, you can add and change the data when needed. This change is temporally and changed setting is not saved. ►How to Retrieve Settings 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”.
  • Page 64 7. Enter the desired number to retrieve by pressing the NUMERIC keys. Saved memory number flashes. Select a memory number which flashes. 8. The saved setting is retrieved. MEMORY MODE 9. Press the FUNCTION key. The saved setting is displayed. IMPORTANT: Even retrieved setting is changed, saved setting is not changed.

  • Page 65: Clearing Settings

    ● Clearing Settings You can clear the settings saved. ►How to Clear Settings 1. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. Basic Printing → See page 17. 2. Press the FUNCTION key. 3. Press the ARROW key (right) several times to display the MEMORY MODE screen (Memory Mode setting screen).
  • Page 66 7. Enter the desired number to clear by pressing the NUMERIC keys. Saved memory number flashes. Select a memory number which flashes. 8. The saved setting is cleared. MEMORY MODE 9. Press the FUNCTION key. Stand-by screen appears.

  • Page 67: Confidential Safeguard

    ■ Confidential Safeguard ● Confidential Safeguard Confidential safeguard function, which prevents printing unless master making has been competed, is a simple means of prohibiting others from printing sensitive documents. IMPORTANT: ● When confidential safeguard function is ON, printing cannot be performed with the PRINT key or TEST PRINT key.
  • Page 68 5. Press the SELECT key. CONFIDENTIAL 6. Press the FUNCTION key. Stand-by screen appears. 7. Press the PRINT key and the TEST PRINT key to check no print is made. REFERENCE: ● While the Confidential Safeguard function is ON, P L E A S E M A K E M A S T E R the message “PLEASE MAKE MASTER”...

  • Page 69: Adjusting Paper Feed Length

    ■ Adjusting Paper Feed Length ● Adjusting Paper Feed Length Paper feed length can be adjusted in 5 steps. When no paper is fed, adjust the paper feed length by pressing the ARROW key (right). When paper folds occur, adjust the paper feed length by pressing the ARROW key (left).
  • Page 70 6. Press the SELECT key. The desired paper feed length is set. PAPER FEED LENGTH ±0 7. Press the FUNCTION key. Stand-by screen appears. REFERENCE: To return to standard: Return to the PAPER FEED LENGTH screen (Paper Feed Length setting screen) and select +/-0.

  • Page 71: Auto Sleep

    ■ Auto Sleep ● Auto Sleep Mode This function automatically turns off the LCD panel when the LCD panel is not operated for a specified period of time. (This reduces standby power consumption.) The specified time of period can be set between 1 to 99 minutes. Default setting is 5 minutes.
  • Page 72 5. Press the SELECT key. The entered values are fixed. AUTO SLEEP 15MIN 6. Press the FUNCTION key. Stand-by screen appears. REFERENCE: If you return to standard: Return to the AUTO SLEEP screen (Auto Sleep setting screen) and then set 5MIN.

  • Page 73: Replacing Consumables

    Replacing Consumables Use consumables such as master roll, ink pack and so on designed only for this machine. Improper use of consumables may cause malfunction and/or trouble of the machine.

  • Page 74: Replacing Ink Pack

    ■ Replacing Ink Pack ● Replacing Ink Pack The message “NO INK” is displayed on the LCD panel when the remaining ink is low. Replace the ink pack according to the following procedure. NO INK IMPORTANT: ● Use an ink pack designed only for this machine. ●...
  • Page 75 4. Insert an “ink pack” so that the “groove on the lip” fits onto the “U” groove of the “holder”. 5. Push the “ink pack holder” back. 6. Close the “front cover”.

  • Page 76: Replacing Master Roll

    ■ Replacing Master Roll ● Replacing Master Roll The message “NO MASTER” is displayed on the LCD panel when the master roll is used up. Replace the master roll according to the following procedure. NO MASTER IMPORTANT: ● Use a master roll designed only for this machine. ●...
  • Page 77 3. Lift out the used master roll. CAUTION: Do not remove the cover affixed with Warning Label. Personnel may be injured by the movable cutter inside the machine. IMPORTANT: Do not touch the heat generator of thermal head. Doing so may cause damages, leading to a malfunction of master making.
  • Page 78 8. Close the “master cover”. 9. Push the “master set lever”. Master set lever The master will be pulled in automatically. IMPORTANT: If the master is not pulled in, open the master cover and gently press the master in as far as possible to set again.

  • Page 79: Disposing Of Used Master

    ■ Disposing of Used Master ● Disposing of Used Master The message “USED MASTER FULL” is displayed on the LCD panel when the master ejection core is full. Dispose of used master wound onto the ejection core according to the following procedure.
  • Page 80 3. Take out the “master ejection core” and simply dispose of IMPORTANT: Ink adheres to the master ejection core (used master). Take care to prevent ink from getting onto your clothing. 4. Insert a new “master ejection core”. 5. Gently close the “master ejection box cover”, and press it in until it locks in place.

  • Page 81: Replacing Drum Unit

    ■ Replacing Drum Unit ● Replacing Drum Unit ● Avoid pressing and damaging the drum surface with fingers etc. It can stain your clothes, and the warp in the drum surface may cause bad prints. ● Always place the drum unit on flat and stable surface. Otherwise, the drum surface may be damaged or warped and may cause bad prints.
  • Page 82 4. Grip the “upper drum shaft” with your other hand, and pull the drum out towards you while slightly lifting near end of the “drum”. 5. Hold the “drum” level and place the “drum guide roller” onto the “rail” in the machine. 6.
  • Page 83 Troubleshooting...

  • Page 84: Troubleshooting

    ■ Troubleshooting ● If trouble occurs If trouble occurs, find the same phenomenon and message in the following table and deal with it before contacting our service person. If the problem still persists, then contact our service person. Phenomenon Check Point Solution The machine does not start Is the power cord unplugged...

  • Page 85: When Messages Appear

    ● When messages appear Error messages are displayed on the LCD panel. When a message appears, follow the instructions below. Error messages are displayed in one of two ways, either by text or by number. Message Cause and Solution Cause: There is no paper on the feed tray. Solution: Load the feed tray with papers.
  • Page 86 Message Cause and Solution Cause: The front cover is open. Solution: Gently close the front cover. FRONT-COVER OPEN Cause: Master remains on the drum. Solution 1: Pull out the drum and remove the master MASTER EJECT ERROR from the drum. Solution 2: Open the master ejection box and remove the master.
  • Page 87 Message Cause and Solution Cause: Cannot print. Solution: This message is displayed if you press the PLEASE MAKE MASTER PRINT key or TEST PRINT key without making a master immediately after a master setting error or when confidential safeguard function is “ON”. Cause: Printing is not complete.
  • Page 88 Machine with keycard counter installed. Refer to the Instruction Manual of the keycard counter for the details. Message Cause and Solution Cause: Keycard is not inserted. Solution: Insert a department card in the keycard SET KEYCARD counter. Cause: Readout of card failed. Solution: Check inserting direction of the card and CARD READ ERROR reinsert the card.

  • Page 89: When 'Paper Exit Jam' Is Displayed

    ■ When ‘PAPER EXIT JAM’ is displayed When a paper jams in the print tray side, ’ PAPER EXIT JAM ’ is displayed on the LCD panel. Follow the procedure below to remove the jammed paper. ►How to Remove Jammed Paper 1.

  • Page 90: Maintenance

    Maintenance...

  • Page 91: Daily Maintenance

    ■ Daily Maintenance ● How to maintain the machine Check the machine periodically to maintain its performance. WARNING ● Before cleaning, be sure to turn the power off, wait until the machine cools off and unplug the power cord. Otherwise, fire or electric shock may occur. ●...
  • Page 92 Specifications...

  • Page 93: Specifications

    ■ Specifications Model name DP-J450 Model Floor stand model Master making method Thermal digital master making Master making interval 23 sec. (A4, 100%) Resolution Scan (input) resolution:300dpi×600 dpi (Pel path dir.) x Print (output) resolution:300dpi×600 dpi (line progression dir.) (Master punch density:600dpi×600dpi)
  • Page 94 Density control Master density: 5 steps Ink supply Automatic control (1000ml) Color print By replacing drum unit Master feeding method Roll master automatic feed (220 masters / roll) Master ejection Automatic ejection / roll-up method (used master capacity: 55 masters) method Display panel Small graphic LCD...
  • Page 95 Options Automatic document feeder (S4-ADF) Drum unit Key card counter (KEY-10) Tape cluster (TAP-13) Master box security lock Cabinet Cabinet door Cabinet (drawer type) Cabinet (drum storage type) USB interface USB LAN Unit (FS-100U) Heavy paper kit Adjustable jump plate Power source 100-240V, 50/60Hz, 1.8-0.8A Power consumption...
  • Page 96 ■ MEMO...
  • Page 97 Reproduction prohibited printing : JUNE 2008 Issued by : DUPLO CORPORATION PRINTED IN JAPAN...
  • Page 98 DUPLO CORPORATION Duplo building, 1-6, Oyama 4 chome, Sagamihara, Kanagawa 229-1180, Japan PHONE: +81-42-775-3602 FAX: +81-42-775-3606 E-mail: info@duplo.com S8-Y1010 2008.06...
