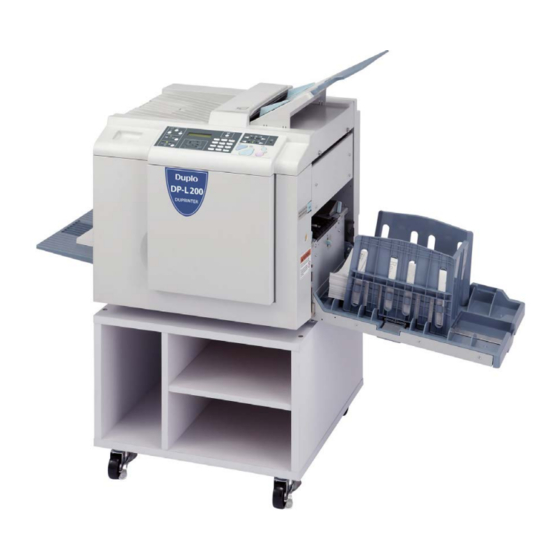

Summary of Contents for Duplo DUPRINTER DP-L220
- Page 1 INSTRUCTION MANUAL DUPRINTER DP - L220/L210/L200 Be sure to read this manual prior to use. Please leave this manual at the site of use for easy reference.
- Page 3 Introduction Thank you for your purchase of the DUPRINTER DP-L220 / L210 / L200. To ensure safe and effi cient prolonged use of this machine, read and thoroughly understand this manual before using this machine. After using this manual, be sure to keep it in a handy place to reference. ●...
- Page 4 Disposal of Old Electrical & Electronic Equipment This symbol (the symbol of the crossed out wheeled bin) indicates that in European countries this product should not be disposed of as household waste. Please recycle where facilities exist by checking with your local authority or supplier for recycling advice.
- Page 5 ● Pictorial Symbols and Other Notations Used in This Manual : Introduces instructions for correct operation of the machine. IMPORTANT If these instructions are ignored, the machine may not be able to operate at optimum performance or may break down. : Introduces information that is useful for operation and maintenance of the REFERENCE machine, or information about the machine’s performance, etc.
-
Page 6: Notes On Safety (Please Read And Observe)
Notes on Safety (Please Read and Observe) Safety Precautions Various symbols and pictures are used in this manual and on the labels affi xed to the machine. These symbols and pictures provide warnings and instructions to prevent danger to you or other personnel, and to prevent damage to offi... - Page 7 Notes on Safety (Please Read and Observe) ● Caution for Grounding (Be sure to use the supplied power cord) WARNING ● Use only the power cord that is provided among the accessories. Insert the power cord plug fi rmly into the socket, so that proper electrical contact is effected.
- Page 8 Notes on Safety (Please Read and Observe) ● Prohibition of Disassembly or Modifi cation WARNING ● Do not modify the machine. → Doing so may result in fi re or electric shock. ● Do not remove the rear lid, cabinet, or covers from the machine. →...
- Page 9 Notes on Safety (Please Read and Observe) CAUTION ● Do not place the machine in a place subject to direct sunlight or heating equipment such as a stove. → It may degrade ink quality and affect printing. The machine also may malfunction.
- Page 10 Notes on Safety (Please Read and Observe) ● Notes on Ink CAUTION ● If ink gets into eyes or mouth, immediately wash it away with water and contact a doctor. ● If ink comes into contact to skin, immediately wash it away with soap and water. ●...
-
Page 11: Locations Of Warning Labels
Notes on Safety (Please Read and Observe) ● Locations of Warning Labels ● Keep the WARNING and CAUTION labels clean at all times. If labels become damaged or come off, please call our service personnel. Do not remove this cover. The inside of the printer contains movable cutting instruments, WARNING contact with which could result in injury. -
Page 12: Function Index
Function Index The followings are a brief introduction of various functions of the machine. Functions for Master Making Zoom Master Making Size →P.23 →P.27 Sets paper size. Enlarges or reduces the size of copy as you Nonstandard-size paper is available. prefer. - Page 13 Functions for Printing Print Speed Print Position →P.26 →P.46 Adjusts print speed. Adjusts the position of the printed image. Batch Print/ →P.38 Confi dential Safeguard →P.52 Sequential Batch Print Makes prints in groups. Prohibits others from printing confi dential Changes the number of prints made from documents.
-
Page 15: Table Of Contents
Contents ................Introduction ........Notes on Safety (Please Read and Observe) ............Safety Precautions ..........● Locations of Warning Labels ................ Function Index Chapter 1 Before Using ..........Part Names and Their Functions ............... Printer Appearance ..............Control Panel ................ Main Screen ............. - Page 16 Contents Chapter 3 Printing With Useful Function ..............“ 2 IN 1” Layout ..............How to Set 2 IN 1 ..............Adjusting Darkness ..............Master Darkness .......... How to Adjust the Master Darkness ..........Batch Print/Sequential Batch Print ..........Batch Print/Sequential Batch Print ............
- Page 17 Contents Chapter 6 Troubleshooting ..............If a Problem Occurs ............Power Does Not Turn ON ........Master Making/Printing Is Not Possible ............When Messages Appear ........... Supplying Paper While Printing ..........If Paper Runs Out During Printing ........... Adding Paper While Printing ........
-
Page 19: Before Using
Chapter Before Using This chapter contains essential information such as the names of the machine parts, the names and functions of keys, etc., on the control panel, and the sizes of documents and printing papers that you can use. Please be sure to read this chapter carefully before attempting to use the printer. -
Page 20: Part Names And Their Functions
Part Names and Their Functions Printer Appearance Reference Name Function page 1 Upper cover Open to replace the roll master, etc. Feed tray descend switch Press to lower the feed tray. 76 ,78 Feed pressure adjuster U U se to adjust the paper feed pressure. lever 4 Feed tray Load paper in this tray. - Page 21 Part Names and Their Functions Master set lever When the master set lever is pushed, the master is pulled in and set. Roll Master Master cover Master cover release lever Paper feed rollers Paper separator Side guide...
- Page 22 Part Names and Their Functions Front cover Drum handle Drum unit Lever This lever locks or unlocks the drum. Ink pack Lever This lever releases the ink pack holder.
- Page 23 Part Names and Their Functions Master ejection core Reference Name Function page Master ejection box open Press to open the master ejection box. 84 ,82 button JOG switch Press and hold to rotate the drum for a set time. Use to remove paper jams, etc..
-
Page 24: Control Panel
Part Names and Their Functions Control Panel Reference Name Function page LCD panel Displays current settings such as number of printed sheet. Displays error messages in case of error. FUNCTION key Switches function setting mode. SELECT key (Right) Selects function. SELECT key (Left) Selects function. - Page 25 Part Names and Their Functions Reference Name Function page MASTER MAKING key Starts making a master. Master making cannot be performed during printing. Clear the number of prints before starting master making. 12 PRINT key Starts printing. Master making is not performed. STOP key Stops printing.
-
Page 26: Main Screen
Part Names and Their Functions Main Screen 100% 1 set Reference Name Function page 1 Print count Displays the number of prints to be made. 2 Sets Displays the number of sets to be printed. 3 Zoom ratio Displays the selected (enlargement/reduction) ratio. -
Page 27: Turning Power On/Off
Turning Power ON/OFF This section describes the operating sequence from turning ON the power switch until the printer is ready to make prints, and how to turn OFF the printer power. Turning ON Printer Power Connect the “female plug” of the power cord to the “Inlet”. -
Page 28: Turning Off Printer Power
Turning Power ON/OFF When paper is loaded in the feed tray, the screen shown at right is displayed. 100% 1 set When the screen shown at right is displayed, press PRINT key, then input ID and password. ENTER ID AND (→P.11 “UID Control Function”) PASSWORD Turning OFF Printer Power... -
Page 29: Uid Control Function
Turning Power ON/OFF UID Control Function By the UID function, the administrator can control the master making and print quantities per person or per department, etc. See the Instruction Manual for UID for details. Input ID and password When you turn on the power, the screen shown at right is displayed. -
Page 30: Document/Printing Paper Specifi Cation
Document/Printing Paper Specifi cation Acceptable Documents ● Document weight : 64–128 gsm (17lb bond - 34lb bond) ● Document size : MAX. 297×432 mm (11"×17") MIN. 100×148 mm (4"×6") ● Stacking capacity in document tray : 10 sheets (64 gsm) IMPORTANT ●... -
Page 31: How Master Making And Printing Is Performed
How Master Making and Printing is Performed The machine performs two processes: master making and printing. Master Making In the “master making” process, the old master on the drum is removed while the thermal head creates the scanned image on the new master and transfers it onto the drum. Roll Master Master ejection box Drum... -
Page 33: Basic Operations
Chapter Basic Operations This chapter describes basic operations such as basic printing, how to set a document and how to enlarge/reduce the size of copy, etc. Preparing for Printing .................... 16 How to Set Papers .................... 16 Adjusting Paper Feed Pressure ................ 17 How to Supply or Replace Paper While Printing .......... -
Page 34: Preparing For Printing
Preparing for Printing How to Set Papers Open the support tray. Hold the lever and adjust the side guides to the paper size. Loosen sheets and align them. Load a stack of aligned sheets between the side guides and press the stack lightly toward the machine. -
Page 35: Adjusting Paper Feed Pressure
Preparing for Printing Adjusting Paper Feed Pressure Adjust the paper feed pressure if an feeding error occurs when using thick or thin paper. ■When no thick paper is fed Adjust the paper feed pressure adjuster lever to “HIGH”. ■When two pieces of thin paper are fed Adjust the paper feed pressure adjuster lever to “LOW”. -
Page 36: How To Set The Print Tray
Preparing for Printing How to Set the Print Tray The following describes how to set the print tray. Remove the print tray. Install the print tray. ● When you use the printer on a table, install the print tray into the upper fi tting. (Stacking capacity;... -
Page 37: How To Adjust Printed Pages
Preparing for Printing Open out the “paper stopper”. Adjust the “side fences” and the “paper stopper” according to the paper size. How to Adjust Printed Pages Adjust the followings when the edges of the printed pages are not aligned. ■Adjusting the jump plate Adjust the plate according to the paper size. -
Page 38: Loading Documents
Loading Documents Loading Document The document can be loaded in the “portrait” or “landscape” position. IMPORTANT ● B5-size documents can be loaded in the “portrait” or “landscape” position. ● Use the portrait position when enlarging or reducing from standard-size documents to standard-size paper, such as A5 to A4. -
Page 39: Basic Printing
Basic Printing Printing Using Basic Functions Press the “I” side on the power switch. (→P.9 “Turning Power ON/OFF”) REFERENCE ● When the power is already turned on, press the RESET key. If the most recently entered setting remains, press the RESET key. -
Page 40: Basic Printmaking
Basic Printmaking Press the MASTER MAKING key. When the master has been made, one test print is automatically made. IMPORTANT ● The test print is for verifi cation purposes only and may be fainter than the fi nal print. REFERENCE ●... -
Page 41: Selecting Master Making Size
Selecting Master Making Size Master Making Area ● The following shows the image size that can be scanned for master making. About 8 mm cannot be printed. This margin is defi ned as top margin. European U.S. Paper Size A (±1%) × B (±1%) Paper Size A (±1%) ×... - Page 42 Selecting Master Making Size Press the FUNCTION key. The master size selection screen appears. 1. MASTER SIZE → B4 A4 B5 A5 ► Press the SELECT key and display the Master making size to be used. Each time the SELECT key is pressed, the display of the LCD panel changes as follows. ♦...
-
Page 43: Selecting Image Mode
Selecting Image Mode TEXT, TEXT/PHOTO, PHOTO This function includes three modes for enhancing text and photographic documents. ■Text/Photograph/Text and Photograph Mode In this mode, the print quality is adjusted to match the document. Text Text/Photograph Photograph Text mode: Enhances the printing of text documents. Text/Photograph mode: Enhances the printing of documents with both text and photographs. -
Page 44: Adjusting The Print Speed
Adjusting the Print Speed Print Speed Adjustment The default setting when the power is turned ON is standard speed: speed 2 (approximately 80 pages per minute). The print speed can be adjusted in 3 steps as follows: Speed 1: approximately 60 pages per minutes Speed 2: approximately 80 pages per minutes Speed 3: approximately 130 pages per minutes REFERENCE... -
Page 45: Enlargement And Reduction
Enlargement and Reduction Enlarging/Reducing from Standard-Size Document to Standard-Size Paper You can enlarge or reduce the size of the copy to the required size from standard-size documents to standard-size paper. ■ Enlargements You can enlarge a standard-size document onto standard-size paper using the following zoom ratios: ●... - Page 46 Enlargement and Reduction IMPORTANT ●Set the desired zoom ratio before starting master making. Press the ENLARGEMENT/REDUCTION key. Press the ENLARGEMENT/REDUCTION key several times to display the desired zoom ratio. In about 3 seconds, the screen changes to the number display screen and the zoom ratio is selected.
-
Page 47: Free Zoom
Enlargement and Reduction Free Zoom You can set a zoom ratio between 50% and 200% in 1% steps. IMPORTANT ● Set Free Zoom before starting master making. ● You cannot set “Minor reduction” at the same Document time as “Free zoom”. Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. - Page 48 Enlargement and Reduction Use the NUMERIC key to enter the enlargement ratio / reduction ratio. Example: 70% REFERENCE ● You can enter a value for the scaling ratio within the range 50% to 200%. If you enter a value smaller than 50%, “50%” will automatically be selected and displayed, and if you enter a value larger than 200%, “200%”...
-
Page 49: Minor Reduction
Enlargement and Reduction Minor Reduction A4 document A4 printout The copy is printed at 94% of the size of the document. Minor reduction is used when you want to create a binding margin or the document has text or illustrations that are in the non-master making area. - Page 50 Enlargement and Reduction Press the SELECT key (Left) to select ON. 3. ×94% →ON Press FUNCTION key. The “×94%” is set. 3. ×94% Press the SELECT key several times to display the main screen. 100% sht 1set REFERENCE To reset to 100%, use one of the following two methods: ●...
-
Page 51: Printing With Useful Function
Chapter Printing With Useful Function This chapter describes how to make prints using the useful printer functions. “ 2 IN 1” Layout ..................... 34 How to Set 2 IN 1 ....................35 Adjusting Darkness ....................36 Master Darkness ....................36 How to Adjust the Master Darkness .............. -
Page 52: In 1" Layout
“ 2 IN 1” Layout Two-in-one (2 IN 1) function allows you to print two small documents on one page and also makes it easy to print pages to create booklets that will be saddle stitched. This is called “2 IN 1 Layout mode.” When you use “2 IN 1 Layout mode”, the layout is as follows. -
Page 53: How To Set 2 In 1
"2 IN 1" Layout How to Set 2 IN 1 Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (→P.21 “Basic Printing”) Press the FUNCTION key. Press the SELECT key (Right) several times to show the screen at right. 4. -
Page 54: Adjusting Darkness
Adjusting Darkness Master Darkness The master darkness can be adjusted in 3 steps. Make the master “darker” if the document is light, or “lighter” if the document is dark. IMPORTANT ● Set the “Master Darkness” before making the master. ● If you adjust the master darkness, you must repeat the master making process before making prints. - Page 55 Adjusting Darkness Press the SELECT key (Left) or SELECT key (Right) to display the desired master darkness. 2. MASTER DARKNESS ◄→ DARK “LIGHT” → “NORMAL” → “DARK” Press the FUNCTION key. The master darkness is selected. 2. MASTER DARKNESS DARK Press the SELECT key (Right) several times to display the main screen.
-
Page 56: Batch Print/Sequential Batch Print
Batch Print/Sequential Batch Print Batch Print/Sequential Batch Print ■ Batch Print This function prints out the set number of sets (set number of print as one group). You can enter up to 15 sets of ‘number of prints’ × ‘number of sets.’ The machine with tape cluster (option) inserts the tape after each set of prints. -
Page 57: How To Enter Batch Print
Batch Print/Sequential Batch Print How to Enter Batch Print Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (→P.21 “Basic Printing”) Press the CLEAR key to clear the number of prints. 100% 1 set Use the NUMERIC keys to enter the number of prints. - Page 58 Batch Print/Sequential Batch Print × Press the key. ＝ The number of prints is set. The number of sets is changed to 0. 100% 0 set Use the NUMERIC keys to enter the number of sets. 100% Example: 3 sets 3 set REFERENCE ●...
- Page 59 Batch Print/Sequential Batch Print Press the PRINT key. The print run starts from the last-entered set, and stops after the fi rst set of printouts. Insert interleaving paper as a mark or remove the printed papers. Press the PRINT key. Printing starts again.
-
Page 60: How To Enter Sequential Batch Print
Batch Print/Sequential Batch Print How to Enter Sequential Batch Print Proceed with steps 1 to 5 of the sequence described in “Basic Printing”. (→P.21 “Basic Printing”) Press the CLEAR key to clear the number of prints. 100% 1 set × Press the key. - Page 61 Batch Print/Sequential Batch Print Use the NUMERIC keys to enter the number of prints. Example: 25 sheets REFERENCE ● If you enter incorrect values, press the CLEAR key to start over again and start from the beginning. When you press the CLEAR key, both the number of prints and the number of sets are cancelled.
- Page 62 Batch Print/Sequential Batch Print × Press the key. ＝ Repeat steps 3 to 7. Up to 15 sets can be entered. Press the MASTER MAKING key. IMPORTANT ● W h e n l o a d i n g d o c u m e n t , l o a d t h e document for the first-entered number of prints and sets uppermost and the document for the last-entered number of...
-
Page 63: Dividing Sections With Tape (Available Only With Tape Cluster Unit Installed)
Batch Print/Sequential Batch Print Dividing Sections with Tape (Available Only with Tape Cluster Unit Installed) Only the specifi ed number of sets is printed with the specifi ed number of prints taken as one set. Paper tape is inserted when printing of each set is completed. You can enter up to 15 groups of number of prints ×... -
Page 64: Adjusting The Print Position
Adjusting the Print Position Print Position Adjustment After master making has fi nished, you can fi ne-tune the position of the image (in the horizontal direction) within ±10 mm. REFERENCE ● You can adjust the printing position while the machine is printing. How to Adjust the Print Position Press the PRINT POSITION key to adjust... -
Page 65: Other Functions
Chapter Other Functions This chapter describes miscellaneous functions such as the confi dential safeguard function, and the print speed and print position adjustments. Memory Mode ....................... 48 Memory Mode ....................48 How to Save the Settings ................. 48 How to Retrieve the Settings ................50 How to Clear the Settings ................. -
Page 66: Memory Mode
Memory Mode Memory Mode You can save and retrieve nine sets of settings for master making and printing. The settings are stored in memory even when the power is turned OFF. REFERENCE The following settings are saved: ● Number of prints/sets ●... - Page 67 Memory Mode Use the NUMERIC key to select the number you want to save. You can save nine sets of settings in 1 to 9. SAVE To cancel the selected number, press the 12 456789 C CLEAR key. REFERENCE ● The already saved memory number blinks. Select the number that does not blink.
-
Page 68: How To Retrieve The Settings
Memory Mode How to Retrieve the Settings Press the FUNCTION key. Press the SELECT key (Right) several times to show the screen at right. 5. MEMORY MODE Press the FUNCTION key. Press the SELECT key (Right) several times to display “RETRIEVE”. 5. -
Page 69: How To Clear The Settings
Memory Mode How to Clear the Settings Press the FUNCTION key. Press the SELECT key (Right) several times to show the screen at right. 5. MEMORY MODE Press the FUNCTION key. Press the SELECT key (Right) several times to display “CLEAR”. 5. -
Page 70: Confi Dential Safeguard
Confi dential Safeguard Confi dential Safeguard The confi dential safeguard function, which prevents printing unless master making has been completed, is a simple means of prohibiting others from printing sensitive documents. IMPORTANT ● When the Confidential Safeguard function is set, printing and test printing cannot be performed. -
Page 71: Online Mode (Available Only With Interface Kit Installed)
Online Mode (Available Only With Interface Kit Installed) Making Prints Using Personal Computer This function allows you to make prints of documents using a personal computer. IMPORTANT ● PC interface kit is required to connect this machine to a personal computer. ●... -
Page 72: Energy Save Mode
Energy Save mode Machine will automatically be energy saving mode if there is no operation for prescriptive time, in this mode, the LCD is off, the energy save mode lamp is lighting. If there is no operation for prescriptive time, machine will automatically be energy save mode, the LCD will be off. -
Page 73: Ink Save Mode
Ink Save Mode Ink Save Mode You can set to ink save mode in order to save printing ink. IMPORTANT ● Print image may be lighter in this mode. ● Set ink save mode before making a master. How to Set Ink Save Mode Press the FUNCTION key. -
Page 74: Total Counter Display
Total Counter Display This function displays the total numbers of prints and masters on the LCD panel. Check that the machine is not printing. IMPORTANT • If the machine is printing, press the STOP key to stop the print run. Press the STOP key. -
Page 75: Replacing Consumables
Chapter Replacing Consumables This chapter describes how to supply paper, ink pack, and other consumables. Replacing the Ink Pack ..................58 Replacing the Ink Pack ..................58 How to Replace the Ink Pack ................58 Replacing the Roll Master ..................61 Replacing the Roll Master ................. -
Page 76: Replacing The Ink Pack
Replacing the Ink Pack Replacing the Ink Pack The message “EXCHANGE INK” is displayed on the LCD panel when the remaining ink is low. Replace the “ink pack” using the following procedure. EXCHANGE INK IMPORTANT ● Only use ink packs designed for this machine. ●... - Page 77 Replacing the Ink Pack Lift out the empty “ink pack”. Ink pack Remove the “cap” from a new “ink pack”. Ink pack IMPORTANT ● Do not leave an ink pack uncapped for longer than necessary. Insert the “ink pack” so that the groove on the lip fi...
- Page 78 Replacing the Ink Pack Press the back of the holder in with the palm of your hand. Close the “front cover”. Front cover...
-
Page 79: Replacing The Roll Master
Replacing the Roll Master Replacing the Roll Master The message “ROLL-MASTER END” is displayed on the LCD panel when the roll master is used up. Replace the roll master using the following procedure. ROLL-MASTER END IMPORTANT ● Only use roll masters designed for use in this machine. ●... - Page 80 Replacing the Roll Master Lift out the used “roll master”. WARNING ● Do not remove the cover affixed with the warning label. ● Personnel may be injured by the movable cutter inside the machine. IMPORTANT ● Do not touch the heat generator of the thermal head.
- Page 81 Replacing the Roll Master Pull out the “master” and pass it under the “bar”. Warning label Insert the “master” until the master’s leading Set line edge aligns with the “set line”. Close the “master cover”. Master cover Push the “master set lever”. Master The master will be pulled in.
- Page 82 Replacing the Roll Master Make sure that the leading edge of the master is protruding from the inner side of the master cover. IMPORTANT ● If the master cannot be set correctly, its leading edge will not be visible. Open the master cover, and set again.
-
Page 83: Disposing Of Used Master
Disposing Of Used Master Disposing Of Used Master The message “EXCHANGE EJECT ROLL” is displayed on the LCD panel when the master ejection core is full. Remove the master ejection core using the following procedure. EXCHANGE EJECT ROLL IMPORTANT ● Only use master ejection cores designed for use in this machine. ●... - Page 84 Disposing of Used Master Holding the edge of the “master ejection core”, pull out the core and throw it in a trash box. IMPORTANT ● Ink adheres to the master ejection core. Take care to prevent ink from getting onto your clothing.
-
Page 85: Replacing The Drum Unit
Replacing the Drum Unit Replacing the Drum Unit IMPORTANT ● Avoid pressing and damaging the drum surface with fingers etc. as this can stain your fingers or clothes, and if the drum surface has got dented this may cause poor quality prints. - Page 86 Replacing the Drum Unit Grip the “upper drum shaft” with your other hand, and pull the “drum” out toward you while slightly lifting the front end of the drum. IMPORTANT ● Do not touch the drum surface. Ink may transfer to your clothes. ●...
-
Page 87: How To Set Drum Unit
Replacing the Drum Unit How to Set Drum Unit Hold the “drum” horizontally and place the drum guide roller on the rail in the machine. Roller Rail Release the “upper drum shaft” and push the “drum” in about 10 cm while lifting up the front end slightly. Hold the “drum”... - Page 88 Replacing the Drum Unit Lower the “lever”. Lever Close the “front cover”. Front cover...
-
Page 89: Troubleshooting
Chapter Troubleshooting This chapter describes how to remove paper jams and what to do when error messages are displayed. If a Problem Occurs ....................72 Power Does Not Turn ON ................. 72 Master Making/Printing Is Not Possible ............72 When Messages Appear ..................73 Supplying Paper While Printing ................ -
Page 90: If A Problem Occurs
If a Problem Occurs Power Does Not Turn ON If the power does not turn ON, check the following. THE MACHINE DOES NOT TURN ON. IS POWER PLUG INSERTED? Insert the power plug securely. IS POWER SWITCH ON? Turn the power switch ON. Please contact your service personnel. -
Page 91: When Messages Appear
When Messages Appear Message Cause and Solution Cause: There is no paper in the feed tray. Solution: Load the feed tray with printing paper. SET PRINT PAPER Cause: There is no ink. Solution: Replace the old ink pack with a new one. (→P.58 “Replacing the Ink Pack”) EXCHANGE INK Cause:... - Page 92 When Messages Appear Message Cause and Solution Cause: A paper jam has occurred in the feed tray. Solution: Remove the jammed paper. (→P.80 “Paper Jam on the Feeder Side PAPER LEFT JAM. (Feed Tray)”) Cause: A paper jam has occurred on the print tray side.
-
Page 93: Service Call
When Messages Appear Message Countermeasure Press the PRINT key and input your ID and ENTER ID AND Password. (→P.11 “UID Control Function”) PASSWORD Cannot print. PLEASE This message is displayed just after the master setting error or master ejection error occurs. MASTER MAKING It is also displayed if you press the PRINT key or... -
Page 94: Supplying Paper While Printing
Supplying Paper While Printing If Paper Runs Out During Printing If paper runs out during printing, printing stops, the feed tray is lowered automatically and the message “SET PRINT PAPER” is displayed on the LCD panel. SET PRINT PAPER If paper runs out during printing, “NO PAPER” is displayed on the LCD panel. -
Page 95: Changing Paper Selection While Printing
Supplying Paper While Printing IMPORTANT ● If the sheet is still in the feed roller ring, pull it out and align it with the stack. Align the stack to be added and place it on top of the existing stack. Press the stack lightly toward the machine. - Page 96 Supplying Paper While Printing Press the feed tray descend switch continuously. Feed tray descend switch Release the switch when the paper tray is at the proper height. The feed tray will stop. IMPORTANT ● If the sheet is still in the feed roller ring, pull it out and align it with the stack.
- Page 97 Supplying Paper While Printing Load the “different size paper”. Set the master size. (→P.23 “Selecting Master Making Size”) Press the PRINT key. The feed tray will rise automatically and printing will resume.
-
Page 98: Paper Jams
Paper Jams Paper Jam on the Feeder Side (Feed Tray) When a paper jam occurs in the feed tray, the message “PAPER LEFT JAM” is displayed on the LCD. Follow the procedure below to remove the jammed paper. PAPER LEFT JAM. Press and hold down the “... -
Page 99: Paper Jam On The Ejection Side (Print Tray Side)
Paper Jams Paper Jam on the Ejection Side (Print Tray Side) When a paper jams in the print tray, the message “PAPER RIGHT JAM” is displayed on the LCD panel. Follow the procedure below to remove the jammed paper. PAPER RIGHT JAM. Press the “master ejection box open button”... - Page 100 Paper Jams Close the master ejection box, pressing it until it locks. ■ Paper Adhering to Drum If paper has adhered to the “drum”, follow the procedure below to remove it. Press the “ master ejection box open button” to open Master ejection box open button the “master ejection box”.
- Page 101 Paper Jams Pull the paper towards the ejection side while pressing the “JOG switch” little by little to remove the paper. IMPORTANT ● Make sure that the removed paper does not stick to your clothes. JOG switch WARNING ● Do not touch the drum or rollers when you operate the JOG switch.
-
Page 102: When A Master Ejection Error Has Occurred
When a Master Ejection Error Has Occurred When an old master remains on the drum, “MASTER EJECT MISS” is displayed on the LCD panel. Remove it by following the procedure below. MASTER EJECT MISS IMPORTANT ● Do not press the surface of the drum unit with your fi ngers or scratch it. Doing so will not only dirty your fingers or clothing but will also indent the drum unit surface, preventing normal printing. - Page 103 When a Master Ejection Error Has Occurred Lift the lever toward you. Master clamp The master clamp opens and the edge of the master Lever will be released from the clamp. If the master is stuck, Master release it by hand. Return the lever.
- Page 104 When a Master Ejection Error Has Occurred Press the STOP key. The message is deleted. Make another master.
-
Page 105: When A Master Setting Error Has Occurred
When a Master Setting Error Has Occurred The message “MASTER SET MISS” is displayed on the LCD panel. Follow the procedure below to remove a master that is jammed in the feed section, and try master making again. MASTER SET MISS How to Remove the Master Open the “... - Page 106 When a Master Setting Error Has Occurred Make sure that the leading edge of the master is protruding from the inner side of the master cover. IMPORTANT ● If the master cannot be set correctly, its leading edge will not be visible. Open the master cover, and set again.
-
Page 107: Daily Maintenance
Chapter Daily Maintenance This chapter describes daily maintenance of the machine. Daily Maintenance ....................90... -
Page 108: Daily Maintenance
Daily Maintenance ● How to maintain the machine Clean the machine periodically to maintain its performance. WARNING ● Before cleaning, be sure to turn the power off, wait until the machine cools down and unplug the power cord. Failure to do so can lead to fi re or electric shock. ●... -
Page 109: Specifi Cations
Chapter Specifi cations This chapter describes machine specifi cations.................. Specifi cations... -
Page 110: Specifi Cations
Specifi cations Product name/ Duprinter DP-L220 Duprinter DP-L210 Duprinter DP-L200 model No. Model Table top digital duplicator Master making Thermal digital master making method Master making 24 seconds (A4 100%) interval Resolution Scan (input) resolution: 300 dpi × 600 dpi Print (output)resolution: 300 dpi ×... - Page 111 Specifi cations Product name/ Duprinter DP-L220 Duprinter DP-L210 Duprinter DP-L200 model No. Registration Vertical: ±15 mm adjustment Horizontal: ±15 mm (Paper width: 297±5 mm) Image modes Text (default), Photo, Text/Photo Ink supply method Automatic control Color print By replacing Drum unit Master feeding Roll master automatic feed method...
- Page 112 Tape Cluster (TAP-13) USB interface kit (I/F-43) UID PC Connector (UPC-01) Automatic power off kit Cabinet (CAB-13) Duplo print server FS-100U2 / FS-100U (Optional USB I/F kit is necessary.) Cabinet (CAB-13) Roll Master DRC42 / DRC42L / DRC41 / DRC415...
- Page 116 4-1-6 Oyama, Chuo-ku, Sagamihara-shi, Kanagawa 252-5280, Japan TEL: +81-42-775-3602 FAX: +81-42-775-3606 E-mail: info@duplo.com U6-Y1811 2013.03...
