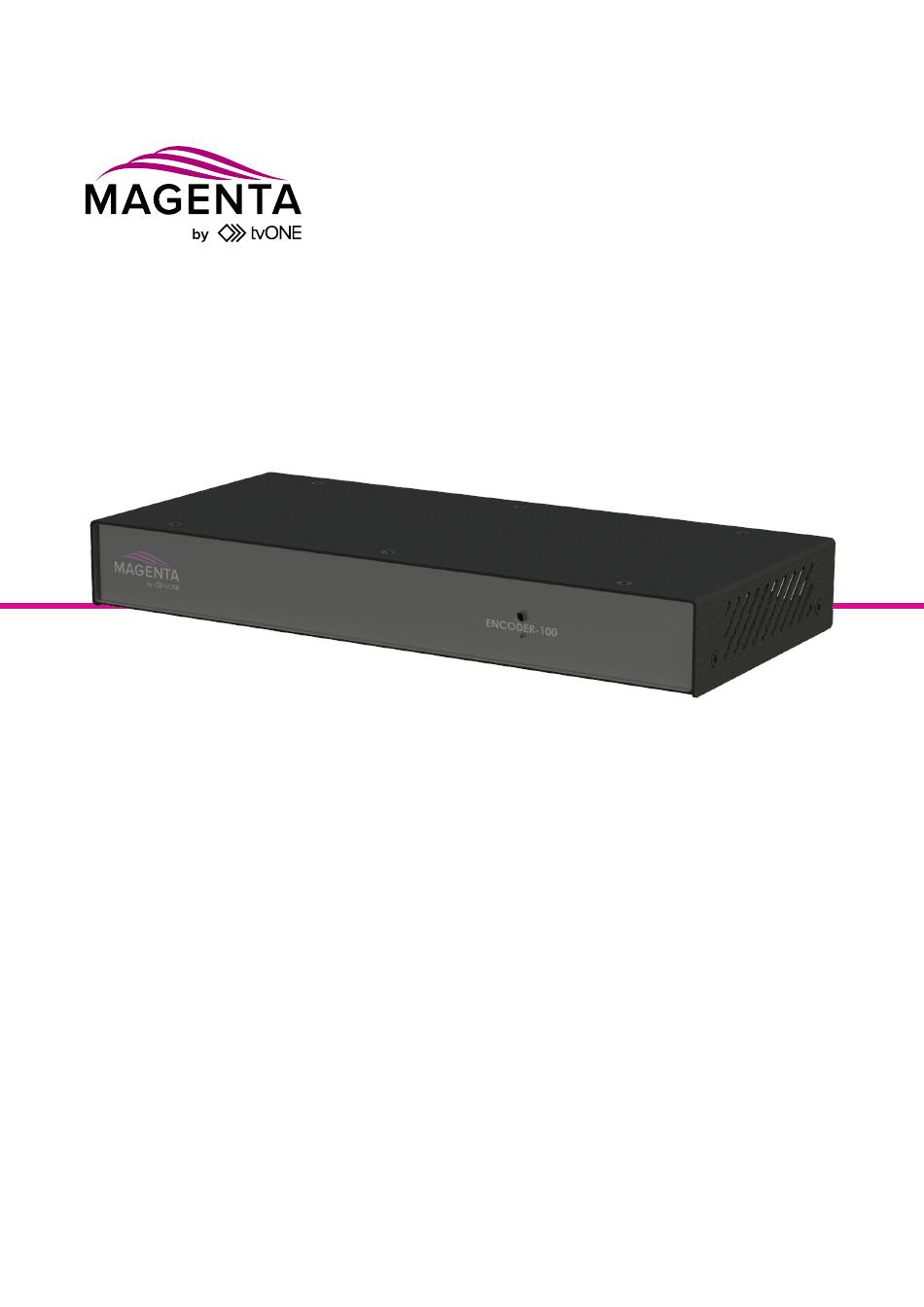

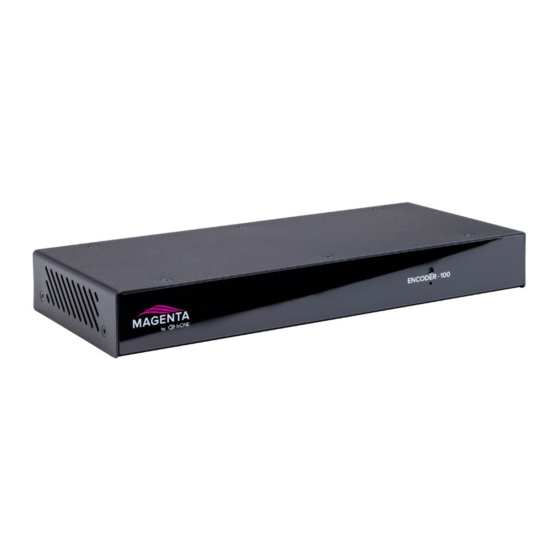

- Page 1 Encoder-100 Streaming Media Encoder User Guide V1.20 QSG-ENCODER-100-V1.20 Mar 2019...
-
Page 2: Table Of Contents
In this guide About your Encoder-100 Quick start Configuring your Encoder-100 Naming your Encoder-100 Configuring network settings Starting and stopping encoding Configuring audio Changing the port number Multicasting Restarting your Encoder-100 Finding the address of your stream Finding the serial number and firmware version of your Encoder-100 CORIOgrapher™... - Page 3 Thanks for buying this Encoder-100 from tvONE. The Encoder-100 streaming media encoder allows you to stream high quality video and audio from a range of sources to the Dual stream input module of your CORIOmaster™, CORIOmaster mini™, or CORIOmaster micro™.
-
Page 4: About Your Encoder-100
Receives video and digital audio signal from a source Connect to a source with an HDMI cable AUDIO OUT Allows you to preview your audio signal Connect a speaker with a 3.5 mm jack audio cable AUDIO IN Receives analog audio from a source Connect a 3.5 mm jack audio cable Magenta™ by tvONE... -
Page 5: Quick Start
OPTIONAL: if you want to see a preview of your stream, connect a VGA cable to PREVIEW, or an HDMI cable to HDMI OUT, and to a display. The power connector is a latching power connector. To remove the power connector from your Encoder-100, slide the sleeve backward. Magenta™ by tvONE... - Page 6 1. Open CORIOgrapher , connect to your CORIOmaster, and read the configuration from your device. 2. Set up a video wall that includes at least one window playing the Dual stream input module, and select Take. 3. Double-click the window you wish to play streaming media, and select (Media Player) Manage. Magenta™ by tvONE...
- Page 7 URL of your Encoder-100. If you can't find or connect to your Encoder-100, read troubleshooting advice on page 15. 5. Select System, and name your Encoder-100. Names can be up to 62 characters long, and can't be blank. Magenta™ by tvONE...
- Page 8 Contact your network administrator for help. 7. Select Capture, and check that your audio source is correct. Risk of delayed signal If your HDMI™ video doesn't contain embedded audio, select None Analog from Audio. Magenta™ by tvONE...
- Page 9 8. Select Encode, and choose a profile. The profile you choose depends on the bandwidth of your connection and your quality requirements. The default settings produce a high quality stream. 9. Select Status > Start encoding. Read more about configuring encoders on page 9. Magenta™ by tvONE...
- Page 10 Playing streaming media Select IP Streams and drag the stream from your Encoder-100 into the play queue. Use the playback controls to play your media. Read more about playing streaming media on page 1. Magenta™ by tvONE...
-
Page 11: Configuring Your Encoder-100
When you first connect, your Encoder-100 is named with its Device ID. Find the Device ID on the bottom of your Encoder-100. If you can't see your Encoder-100 in the list, select Find and enter the IP address of the encoder. Magenta™ by tvONE... -
Page 12: Naming Your Encoder-100
Static IP address If you choose a static IP address, make sure you enter a unique value for your IP address. Using the same IP address for multiple devices can cause your devices to disconnect. Contact your network administrator for help. Magenta™ by tvONE... -
Page 13: Starting And Stopping Encoding
Starting and stopping encoding To start encoding, select Status > Start encoding. To stop encoding, select Status > Stop encoding. You can also start and stop encoding from Media Browser. Magenta™ by tvONE... -
Page 14: Configuring Audio
If you choose to include analog audio, choose an appropriate sample rate. The default sample rate is 48.0 kHz. Changing the port number This task is optional. You can change the port number of your Encoder-100 in Stream. Multicasting This task is optional. You can configure multicasting in Stream. Magenta™ by tvONE... -
Page 15: Restarting Your Encoder-100
Finding the address of your stream If you want to save your encoder as a saved stream, or your encoder doesn't appear in Discovered encoders, you need to know the address of your stream. Find the address of your stream in Stream or Status. Magenta™ by tvONE... -
Page 16: Finding The Serial Number And Firmware Version Of Your Encoder-100
1. Finding the serial number and firmware version of your Encoder-100 Find the serial number and firmware version of your Encoder-100 in System You can also manage your encoders in Settings > Streams. Read more on page 1. Magenta™ by tvONE... -
Page 17: Coriographer™ Can't Find Or Connect To My Encoder-100
1. If that doesn't work Check that your network settings are correct. For more help, contact your network administrator. If the advice here doesn't work, first contact your distributor. If your distributor can't help, contact tvONE support at tech.usa@tvone.com tech.europe@tvone.com or tech.asia@tvone.com. -
Page 18: Contact Us
Information in this document is subject to change without notice. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser's personal use without the written permission of tvONE. Copyright © 2019 tvONE™. All rights reserved.
