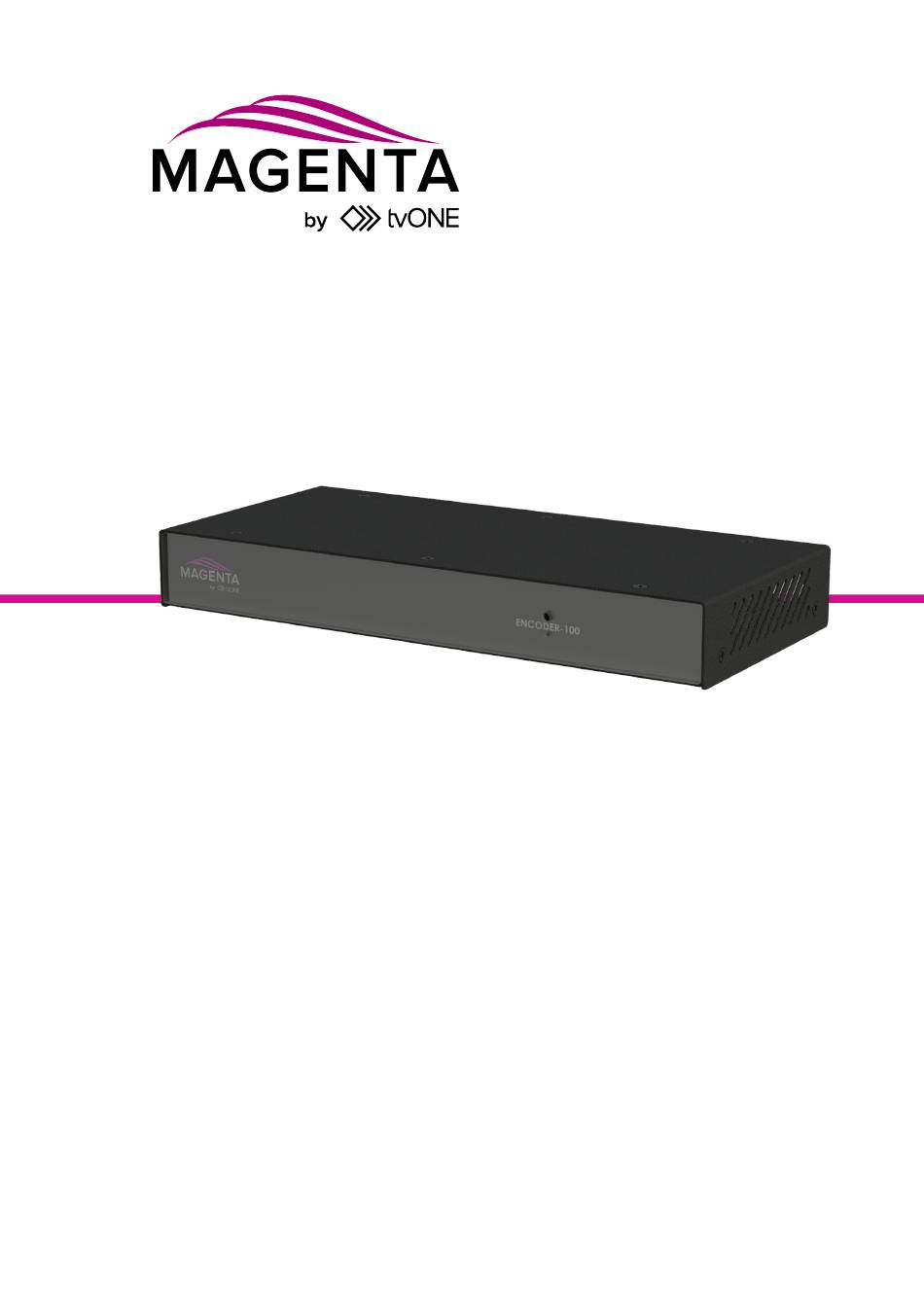

- Page 1 Encoder-100 Streaming Media Encoder Quick Start Guide V1.20 QSG-ENCODER-100-V1.20 Mar 2019...
-
Page 3: Table Of Contents
In this guide About your Encoder-100 Quick start CORIOgrapher™ can't find or connect to my Encoder-100 Regulatory compliance Contact us... - Page 4 Thanks for buying this Encoder-100 from tvONE. The Encoder-100 streaming media encoder allows you to stream high quality video and audio from a range of sources to the Dual stream input module of your CORIOmaster™, CORIOmaster mini™, or CORIOmaster micro™.
-
Page 5: About Your Encoder-100
About your Encoder-100 Encoder-100 rear panel DC 5V Connect to an electrical outlet Sends encoded signal to your network Connect to your network with Ethernet PREVIEW Allows you to preview your encoded signal Connect to a display with a VGA cable HDMI OUT Allows you to preview your encoded signal Connect to a display with an HDMI cable... -
Page 6: Quick Start
B. Connect an Ethernet cable to a DHCP-enabled network, or, connect an Ethernet cable directly to a DHCP-enabled PC. C. Connect an HDMI™ cable to the video source that you wish to stream. For example, you could connect a camera, an endoscope, or a media player. Magenta™ by tvONE... - Page 7 OPTIONAL: if you want to stream analog audio, or preview your audio, connect a 3.5 mm jack audio cable. OPTIONAL: if you want to see a preview of your stream, connect a VGA cable to PREVIEW, or an HDMI cable to HDMI OUT, and to a display.
- Page 8 3. Double-click the window you wish to play streaming media, and select (Media Player) Manage. 4. Select Streams, select your Encoder-100, and select Manage. When you first connect, your Encoder-100 is named with its Device ID. Find the Device ID on the bottom of your Magenta™ by tvONE...
- Page 9 Encoder-100. If your Encoder-100 isn't displayed, select Find and enter the URL of your Encoder-100. If you can't find or connect to your Encoder-100, read troubleshooting advice on page 10. 5. Select System, and name your Encoder-100. Names can be up to 62 characters long, and can't be blank. 6.
- Page 10 Contact your network administrator for help. 7. Select Capture, and check that your audio source is correct. Risk of delayed signal If your HDMI™ video doesn't contain embedded audio, select None Analog from Audio. Magenta™ by tvONE...
- Page 11 8. Select Encode, and choose a profile. The profile you choose depends on the bandwidth of your connection and your quality requirements. The default settings produce a high quality stream. 9. Select Status > Start encoding. Read more about configuring encoders in CORIOgrapher Help. QSG-ENCODER-100...
- Page 12 Playing streaming media Select IP Streams and drag the stream from your Encoder-100 into the play queue. Use the playback controls to play your media. Read more about playing streaming media in CORIOgrapher Help. Magenta™ by tvONE...
-
Page 13: Coriographer™ Can't Find Or Connect To My Encoder-100
CORIOgrapher™ can't find or connect to my Encoder-100 What's the problem? 1. I tried to find my Encoder-100 in Media Browser > Streams, but it wasn't in the list. I tried to add it manually with an IP address, but that didn't work either. 2. - Page 14 If that doesn't work Check that your network settings are correct. For more help, contact your network administrator. If the advice here doesn't work, first contact your distributor. If your distributor can't help, contact tvONE support at tech.usa@tvone.com tech.europe@tvone.com tech.asia@tvone.com.
-
Page 15: Regulatory Compliance
Copyright © 2019 tvONE™. All rights reserved. Registered in the U.S. Patent and Trademark Office. QSG-ENCODER-100... - Page 16 CAPTIVATE your AUDIENCE best technology for creating eye-catching visual experiences We Engineer Confidence We Engineer Confidence...
