Tvone C2-1100 Specifications

C2-1100 Down Converter
exclusive CORIO2™ technology and provides high
quality scan conversion from Computer or HDTV signals
to standard video formats. It handles any computer
resolution up to 2048x2048 at any vertical refresh rate
and all HDTV resolutions up to 1080p. In order to deal
with PC, Mac and most Computer Workstation signals, a
wide variety of computer signal formats can be
accommodated. Video outputs are switchable between
NTSC and PAL and are simultaneously provided in
Composite, S-Video and YUV Component. Alternatively,
the output can be YPbPr Component (Progressive
Scan). A PC loop-thru is also provided.
Our exclusive AutoSet® feature takes the hassle out of
setup by automatically sizing and positioning the
computer image to fit exactly on the video screen. All
settings are stored in non-volatile memory and are
retained even when power is switched off. All the
functions can be controlled via the front panel Push
Buttons, an Infrared Control Remote Unit or via an RS-
232 connection. A Windows Control Panel is provided
and most third party control systems interface directly
with the entire C2 range of products. An On-Screen
Display is available to assist in setup.
Variable Zoom to 10X allows you to enlarge any part of
the computer screen to fill the entire video screen and
position controls allow you to move around to any area
desired. Variable Shrink to as little as 10% allows fitting
the image onto most displays. The advanced Digital
Flicker Elimination circuitry and high sampling rate
insures crisp, clear images, while full bandwidth chroma
sampling insures faithfully reproduced, high resolution
colors. The C2-1100 is housed in a desktop case and a
rackmount kit is available as an option.

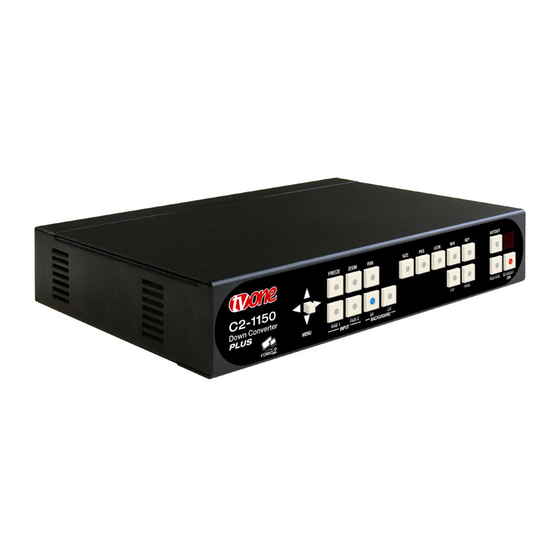

C2-1150 Down Converter PLUS
and features of the C2-1100 and adds a wide variety of
additional capabilities, such as Genlock, Picture-In-
Picture, Chromakey and Lumakey. The
allows computer graphics to be keyed over an external
Composite or S-Video signal. The keyed image may be
faded in and out. Due to the 4:4:4 sampling format,
precise keying at the pixel level can be achieved. The
Mix Mode permits glitch-free mixing between the
computer image and external video. The
allows either of the computer inputs to be inset in a
window over either of the video inputs or visa versa.
The Genlock feature insures precise synchronization of
the incoming signals by providing a wide Subcarrier lock
range with Subcarrier phase adjustment.
Input Expansion is available for both models by
choosing the appropriate S2 Series Input Switcher,
which links to the main unit via an Options Interconnect
Cable. The routing of these additional inputs is controlled
directly from the C2-1000 Series converter's control
system.
www.tvone.com •
is based on TV One's
has all the functions
Key Mode
PIP Mode
•
www.tvone.co.uk www.tvonela.com
Down Converters
Models C2-1100, C2-1150
Key Features of the C2-1100
•
Automatic incoming resolution detection
•
2x Computer Inputs via HD-15 and 5-BNC
•
Computer Resolutions to 2048x2048
•
HDTV Resolutions to 1080p
•
AutoSet® - Automatic picture sizing
•
Multiple Worldwide Television Standards
•
Composite, YC (S-Video), YUV, YPbPr Outputs
•
RS-232 Interface and Windows Control Panel
•
IR Remote Control
•
Variable Image Zoom to 10X and Shrink to 10%
•
Optional Single/Dual Rackmount Kit
•
Optional Input Expansion for additional inputs
Additional Features of the C2-1150
•
Genlock with Subcarrier Phase Adjustment
•
Picture-in-Picture
•
Chromakey and Lumakey
•
Composite and YC Video Input
This symbol on a product indicates that it is
powered by CORIO2™ technology, the most
flexible video processing engine now available.
Unlike most manufacturers, who use third party chipsets
to provide video conversion, TV One has developed its
own proprietary technology known as CORIO2™. This
frees TV One products from the constraints imposed by
third parties and results in an unsurpassed degree of
flexibility. Products based on third party chipsets have a
feature set frozen at the introduction of the product.
Since the CORIO2™ video processing engine is entirely
firmware based, it can be upgraded at any time by
downloading the latest firmware version form the support
website and flash upgrading the unit in the field. This
enables new features to be added to units many years
after the initial purchase. This "obsolescence insurance"
means that a CORIO2™ based product can always be
upgraded to the latest version of that model.
•
