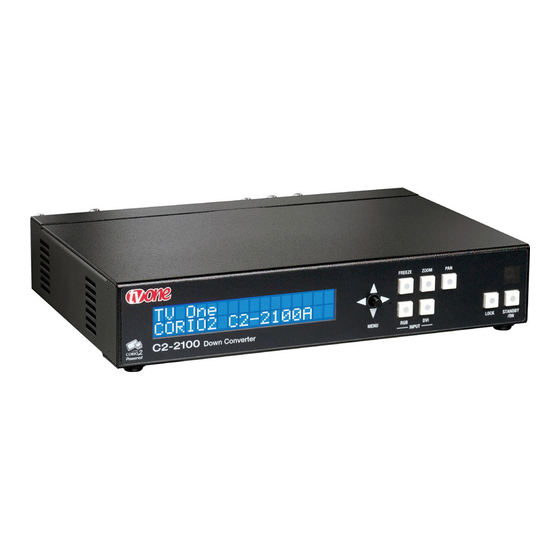

C2-2100 Down Converter
exclusive CORIO2™ technology and provides high
quality scan conversion from DVI or Analog Computer or
HDTV signals to standard video formats. It handles any
computer resolution up to 2048x2048 at any vertical
refresh rate and all HDTV resolutions up to 1080p. In
order to deal with PC, Mac and most Computer
Workstation signals, a wide variety of computer signal
formats can be accommodated. Video outputs are
switchable
between
simultaneously provided in Composite, S-Video and
YUV Component. Alternatively, the output can be YPbPr
Component (Progressive Scan). A PC loop-thru is also
provided.
C2-2105
provides an SDI output as well.
Our exclusive AutoSet® feature takes the hassle out of
setup by automatically sizing and positioning the
computer image to fit exactly on the video screen. All
settings are stored in non-volatile memory and are
retained even when power is switched off. All the
functions can be controlled via the front panel Push
Buttons, an Infrared Control Remote Unit or via an RS-
232 or IP connection. A Windows Control Panel is
provided and most third party control systems interface
directly with the entire C2 range of products. A front
panel LCD makes setup easy.
Variable Zoom to 10X allows you to enlarge any part of
the computer screen to fill the entire video screen and
position controls allow you to move around to any area
desired. Variable Shrink to as little as 10% allows fitting
the image onto most displays. The advanced Digital
Flicker Elimination circuitry and high sampling rate
insures crisp, clear images, while full bandwidth chroma
sampling insures faithfully reproduced, high resolution
colors. C2-2000 series units are housed in desktop
cases and rackmount kits are available as options.
The Genlock feature insures precise synchronization of
the incoming signals by providing a wide Subcarrier lock
range with Subcarrier phase adjustment
C2-2150 Down Converter PLUS
and features of the C2-2100 and adds a wide variety of
additional
capabilities,
Chromakey, Lumakey and Mix. The
computer graphics to be keyed over an external
Composite or S-Video signal. The keyed image may be
faded in and out. Due to the 4:4:4 sampling format,
precise keying at the pixel level can be achieved. The
Mix Mode
permits glitch-free mixing between the
computer image and external video. The
allows either of the computer inputs to be inset in a
window over either of the video inputs.
provides an SDI output as well.
Input Expansion
is available for all models by choosing
the appropriate S2 Series Input Switcher, which links to
the main unit via an Options Interconnect Cable. The
routing of these additional inputs is controlled directly
from the C2-2000 Series converter's control system.
www.tvone.com •
is based on TV One's
NTSC
and
PAL
and
has all the functions
such
as
Picture-In-Picture,
Key Mode
PIP Mode
The
C2-2155
•
www.tvone.co.uk
www.tvonela.com
Down Converters
Models C2-2100, C2-2105, C2-2150, C2-2155
are
Key Features of the C2-2100, C2-2105
•
Automatic incoming resolution detection
•
Analog Computer Input via HD-15 w/Loop-thru
•
DVI-D Computer Input via DVI-I Connector
•
Genlock with Subcarrier Phase Adjustment
•
Analog PC to 2048x2048, HDTV to 1080p
•
DVI PC to 1280x1024, HDTV to 1080p/30
•
AutoSet® - Automatic picture sizing
•
Multiple Worldwide Television Standards
•
Composite, S-Video, YUV, YPbPr Outputs
•
SDI Output (C2-2105 only)
•
RS-232 & IP Interface and Windows Control Panel
•
IR Remote Control
•
Variable Image Zoom to 10X and Shrink to 10%
•
Optional Single/Dual Rackmount Kit
•
Optional Input Expansion for additional inputs
Additional Features of the C2-2150, C2-2155
•
Picture-in-Picture
•
Chromakey and Lumakey
•
Composite and S-Video Input
•
SDI Out (C2-2155 only)
This symbol on a product indicates that it is
powered by CORIO2™ technology, the most
flexible video processing engine now available.
Unlike most manufacturers, who use third party chipsets
allows
to provide video conversion, TV One has developed its
own proprietary technology known as CORIO2™. This
frees TV One products from the constraints imposed by
third parties and results in an unsurpassed degree of
flexibility. Products based on third party chipsets have a
feature set frozen at the introduction of the product.
Since the CORIO2™ video processing engine is entirely
firmware based, it can be upgraded at any time by
downloading the latest firmware version form the support
website and flash upgrading the unit in the field. This
enables new features to be added to units many years
after the initial purchase. This "obsolescence insurance"
means that a CORIO2™ based product can always be
upgraded to the latest version of that model.
•
