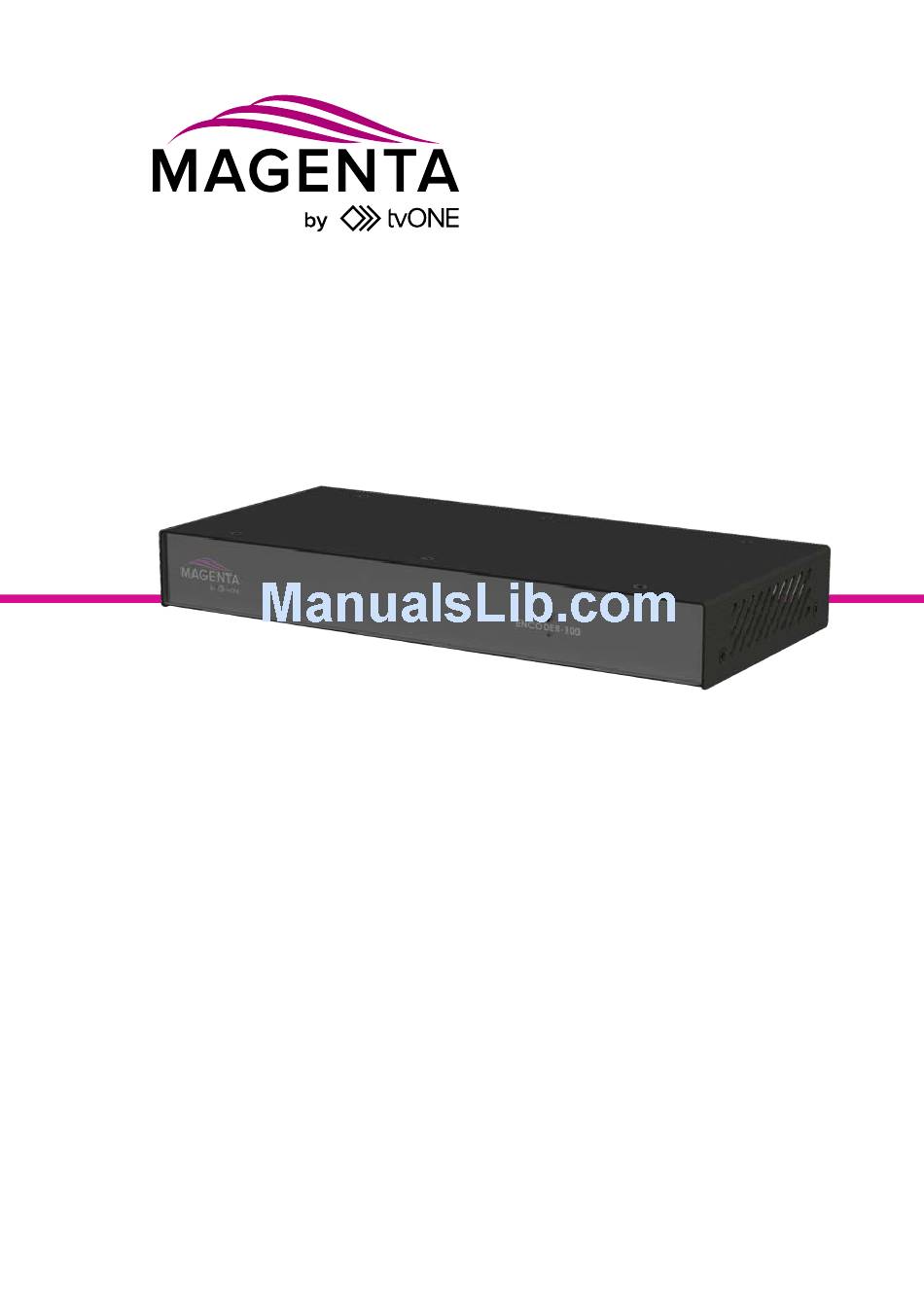

- Page 1 Encoder-100 Streaming Media Encoder Quick Start Guide V1.00 Firmware version 1.05.03.007 and above QSG-ENCODER-100-V1.00 May 2017...
- Page 2 In this guide About your Encoder-100 Quick start Regulatory compliance Contact us...
- Page 3 Thanks for buying this Encoder-100 from tvONE. The Encoder-100 streaming media encoder allows you to stream high quality video and audio from a range of sources to the Streaming media and 4K playback input module of your CORIOmaster™, CORIOmaster mini™, or CORIOmaster micro™.
- Page 4 About your Encoder-100 Encoder-100 rear panel DC 5V Connect to an electrical outlet Sends encoded signal to your network Connect to your network with Ethernet PREVIEW Allows you to preview your encoded signal Connect to a display with a VGA cable HDMI OUT...
-
Page 5: Quick Start
Quick start It's easy to get started with the Encoder-100, but if you want more help with any of these steps, select in CORIOgrapher™ and search, or ask a question. The Encoder-100 cannot encode HDCP encoded sources. Before you start To use an Encoder-100, you must have a Streaming media and 4K playback input module installed in your CORIOmaster™, CORIOmaster... - Page 6 The power connector is a latching power connector. To remove the power connector from your Encoder-100, slide the sleeve backward. Configuring the Encoder-100 with CORIOgrapher™ 1. Open CORIOgrapher™ , connect to your CORIOmaster™, and read the configuration from your device. Magenta by tvONE...
- Page 7 2. Set up a video wall that includes at least one window playing the Streaming media and 4K playback input module, and select Take. 3. Double-click the window you wish to play streaming media, and select (Media Player) Manage. 4. Select Streams, select your Encoder-100, and select Manage. QSG-ENCODER-100...
- Page 8 When you first connect, your Encoder-100 is named with its ID number. Find the ID number is on the bottom of your Encoder-100. If your Encoder-100 isn't displayed, select Find and enter the URL of your Encoder-100. 5. Select System, and name your Encoder-100.
- Page 9 If you choose a static IP address, make sure you enter a unique value for your IP address. Using the same IP address for multiple devices can cause your devices to disconnect. Contact your network administrator for help. 7. Select Capture, and check that your audio source is correct. QSG-ENCODER-100...
- Page 10 8. Select Encode, and choose a profile. The profile you choose depends on the bandwidth of your connection and your quality requirements. The default settings produce a high quality stream. 9. Select Status > Start encoding. Read more about configuring encoders in CORIOgrapher™ Help. Magenta by tvONE...
-
Page 11: Regulatory Compliance
Playing streaming media Select IP Streams and drag the stream from your Encoder-100 into the play queue. Use the playback controls to play your media. Read more about playing streaming media in CORIOgrapher™ Help. Regulatory compliance This product has been tested for compliance with appropriate FCC and CE rules and regulations.
