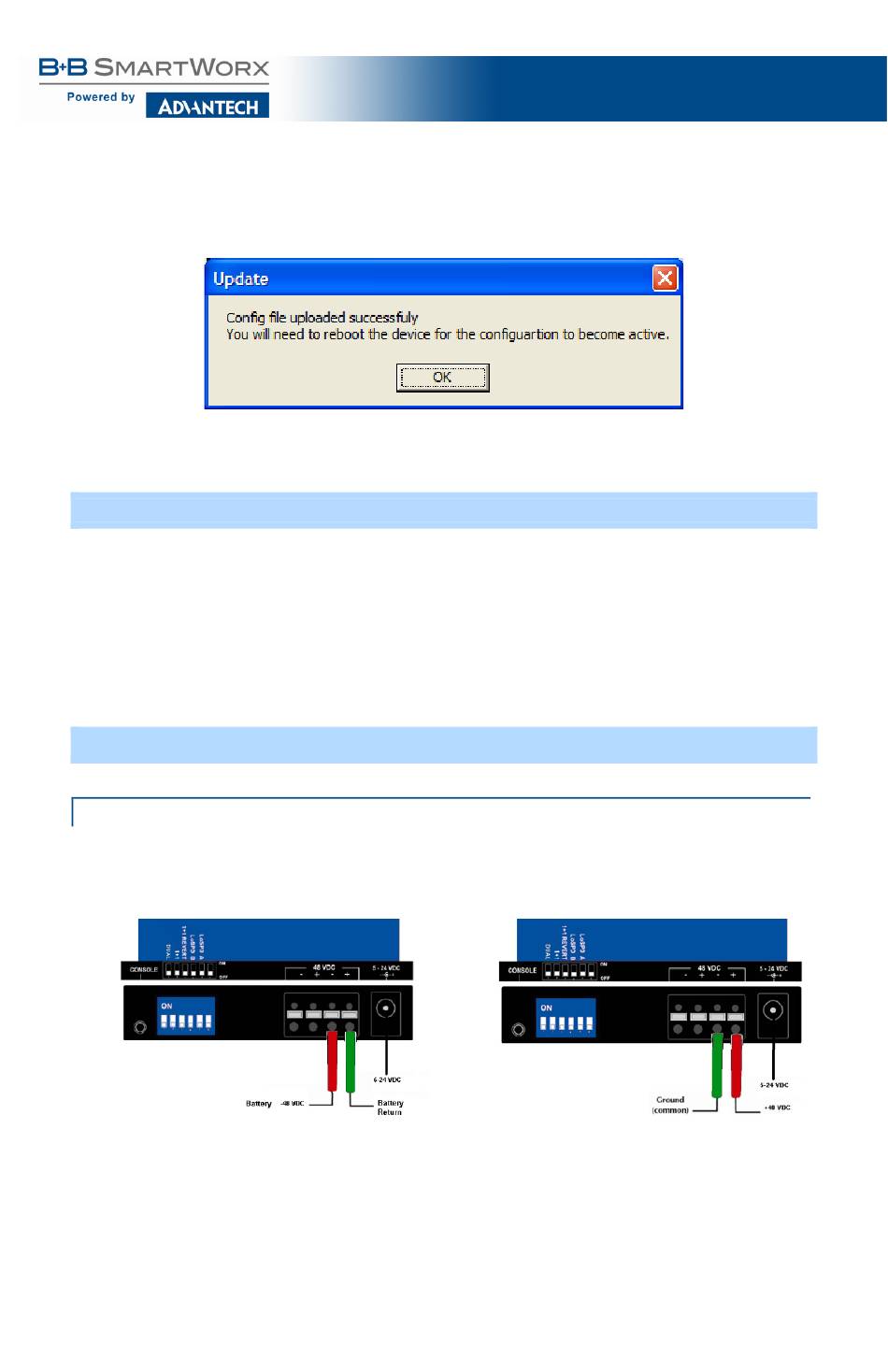

After selecting the configuration file, the file upload process begins.When
completed, the user is notified of the status and also notified that a reboot is
necessary for the new configuration to become active:
By design, the IP Address configuration currently on the device is kept intact
and not overwritten by the new configuration file.

SFP PORTS

IE-MultiWay SFP ports support Gigabit fiber SFPs and 100Mbps fiber SFPs,
with or without Digital Diagnostics Monitoring Information (DDMI), as well as
copper SFPs in 10/100/1000Mbps and 1000Mbps. DDMI statistics provide
real-time access to transceiver operating parameters such as voltage,
temperature, laser bias current, and both transmitter and receive optical
power. This information can be accessed via the management system. SFPs
must be MSA-compliant, (available from B+B SmartWorx or other suppliers).
HARDW ARE/W IRING SPECIFICATIONS
DC TERMINAL BLOCK W IRING INSTRUCTIONS
The IE-MultiWay can be powered with the DC terminal block. From a power source,
connect to any one positive and any one negative terminal on the IE-MultiWay.
TELCO (-48)
NOTE: When using stranded wire, the leads should be tinned. The DC terminal block is protected
against polarity mis-wiring. AWG24 is recommended.
