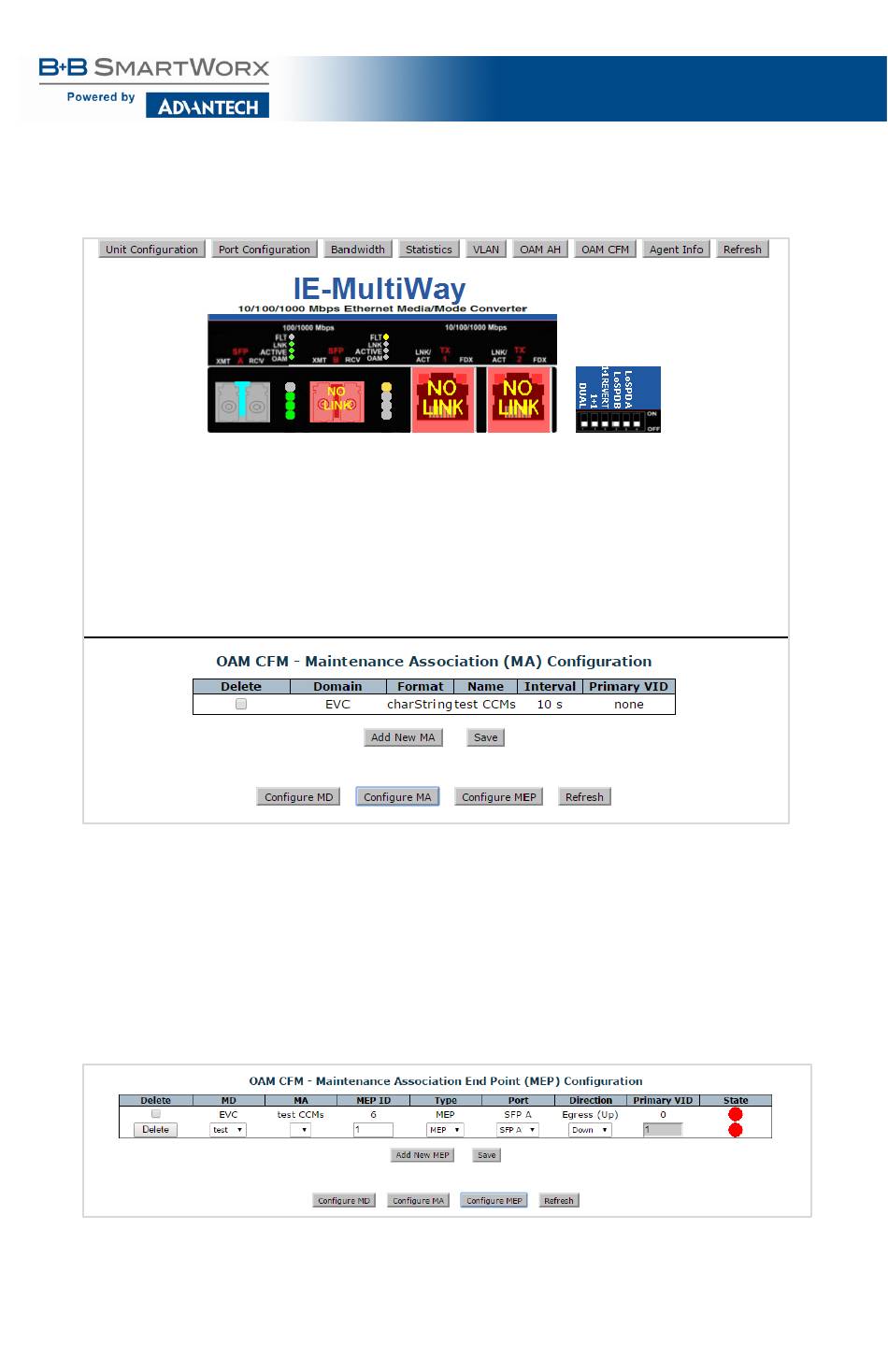

For the first configuration, create an MA after the MD. Select "Configure MA" to display
the OAM CFM Maintenance Association Configuration screen as shown below:
NOTE: iView 2 automatically displays this page if there is no MA yet defined when the user attempts to
access any other menu control.
Select the Domain and Format, and enter the MA name in the Name field. Use Interval
to select the interval for continuity check messaging, and choose Primary VID, if
applicable. To cancel the MA without saving, select Delete. To store the MA, select Save
and the screen is refreshed.
For a first time configuration, the next step is to create a MEP. Select Add New MEP to
display the OAM CFM MEP configuration page as shown below:
