Port Configuration (Port)

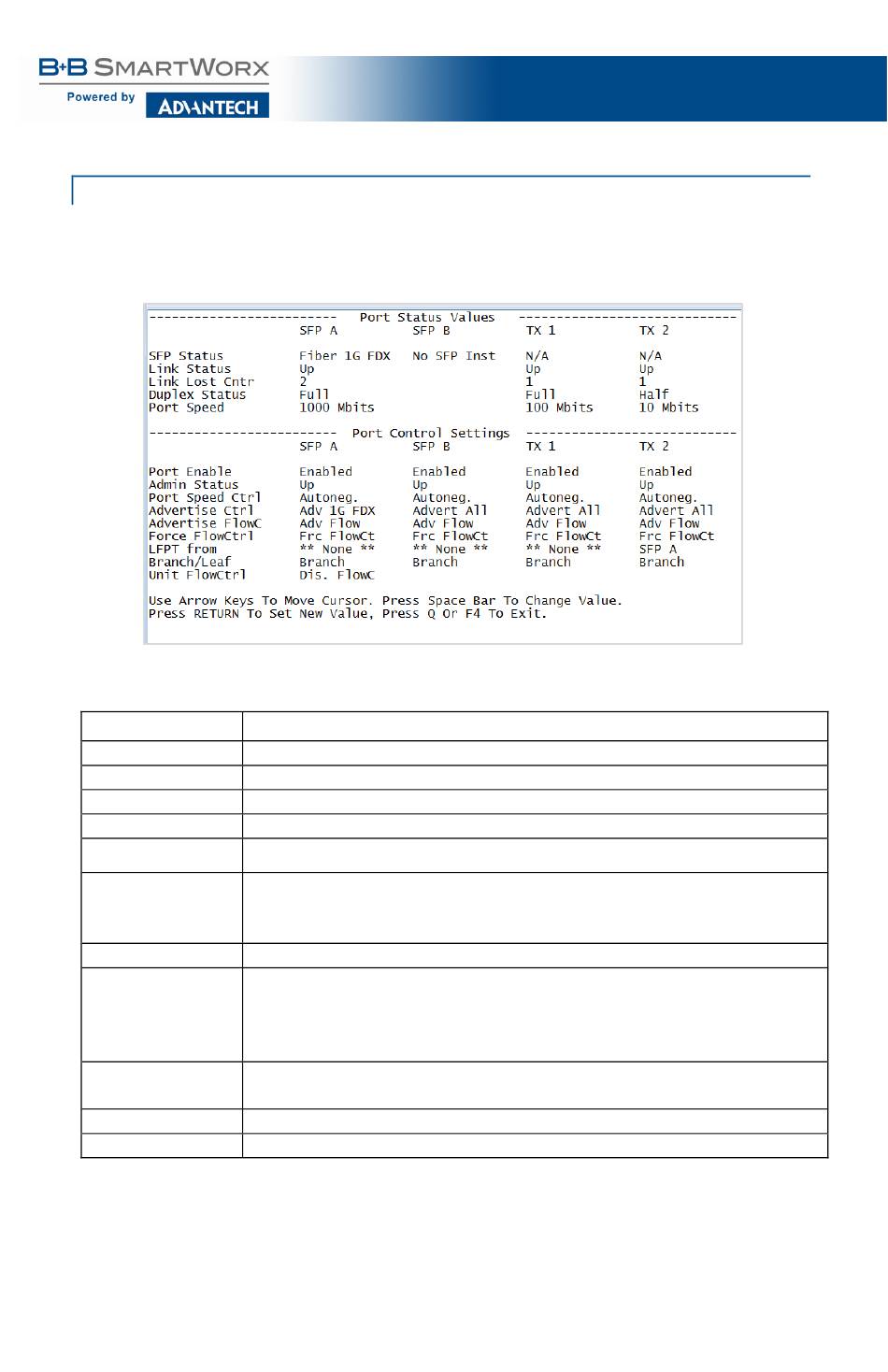

Serial/Telnet sessions display port status as well as allowing configuration of some port
features. Type port and press Enter to be taken to the Port screen. From this screen,
view the port speed, duplex and link status.
The Port screen contains the following commands:
SFP Status
Link Status
Link Lost Cntr
Duplex Status
Port Speed
Port Enable
Admin Status
Port Speed Ctrl
Advertise Ctrl
LFPT from
Branch/Leaf
Unit FlowCtrl
NOTE: Selective Advertising must be used when connecting to a device that auto negotiates and a
specific speed and duplex mode is desired.
SFP A, SFP B status
Up or Down
A counter-it lists a value of how many times a port has lost link
Full or Half Duplex
100Mbps or 1000Mbps dependent on port capability
Enable/Disable the port. (Select Enable to enable the port.)
Set Administration level. (Select UP to enable management through
the port.)
Both settings must be enabled to enable the port.
Set the port manually or for Auto Negotiation.
This is the Selective Advertising feature. Selective Advertising, when
used in combination with Auto Negotiation, advertises the configured
speed and duplex mode for the twisted pair ports. Auto Negotiation
must be enabled for Selective Advertising.
Enable LFPT from one specific port to another in case a link failure
occurs. This is available on all ports.
Configure ports to be a branch or leaf
Unit's Flow Control: Disable or Enable
