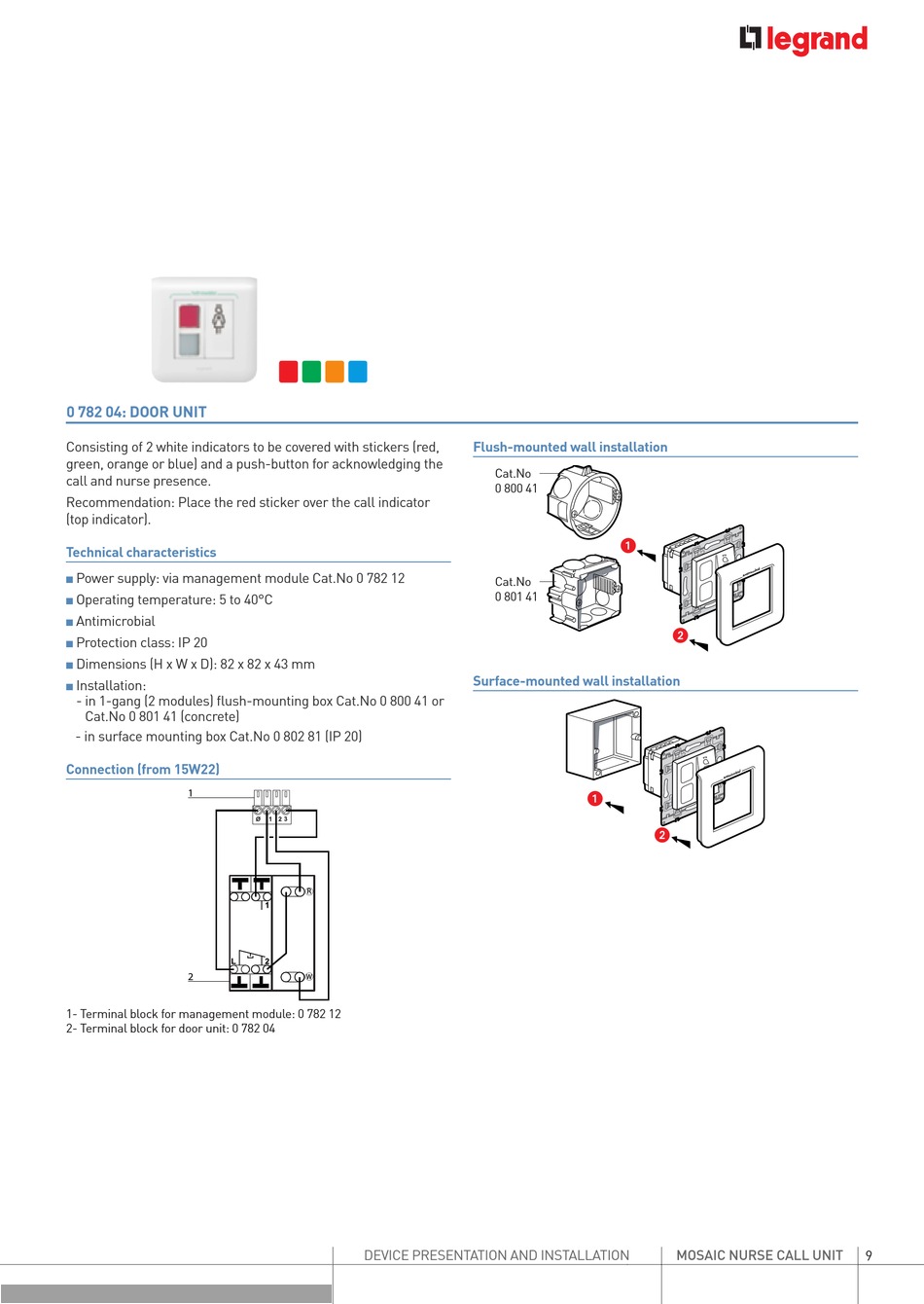

0 782 04: DOOR UNIT

Consisting of 2 white indicators to be covered with stickers (red,
green, orange or blue) and a push-button for acknowledging the
call and nurse presence.
Recommendation: Place the red sticker over the call indicator
(top indicator).
Technical characteristics
Power supply: via management module Cat.No 0 782 12
n
Operating temperature: 5 to 40°C
n
Antimicrobial
n
Protection class: IP 20
n
Dimensions (H x W x D): 82 x 82 x 43 mm
n
Installation:
n
- in 1-gang (2 modules) flush-mounting box Cat.No 0 800 41 or
Cat.No 0 801 41 (concrete)
- in surface mounting box Cat.No 0 802 81 (IP 20)
Connection (from 15W22)
1
2
1- Terminal block for management module: 0 782 12
2- Terminal block for door unit: 0 782 04
Flush-mounted wall installation
Surface-mounted wall installation
R
W
DEVICE PRESENTATION AND INSTALLATION
Cat.No
0 800 41
Cat.No
0 801 41
MOSAIC NURSE CALL UNIT
9
