LEGRAND Mosaic Manual
Offset infrared auxiliary control
Hide thumbs
Also See for Mosaic:
- Technical manual (32 pages) ,
- Manual (8 pages) ,
- Technical data sheet (2 pages)
Related Manuals for LEGRAND Mosaic
Summary of Contents for LEGRAND Mosaic

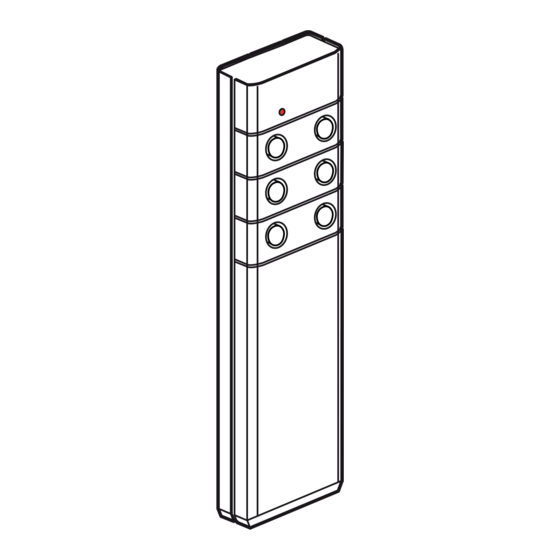

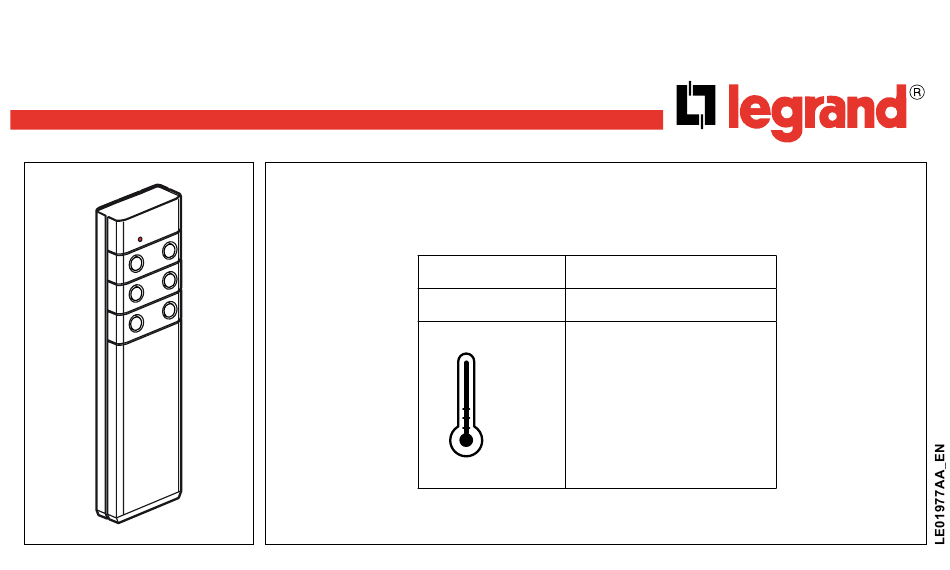

- Page 1 Mosaic Offset infrared auxiliary control 784 31 Characteristics Power supply 1 x 9 V, type 6 F 22 Range + 40° - 5° C to + 40° C - 5°...
- Page 2 Connection Green transmission indicator LED...
- Page 3 Description LEARN indicator LEARN button light Control button The indicator light The indicator light blinking The indicator light blinking The indicator light is switched off slowly fast flashing...
- Page 4 Learning the scenario Step 1: start the learning on the remote control � � Press Press the remote control button that will LEARN control the scenario Step 2: on the receiver � � Press Press the button to be associated with LEARN the remote control Step 3: save the scenario on the remote control...
- Page 5 Modifying a scenario Step 1: on the remote control: open the scenario 036 60/71 � � The indicator lights of all the scenario products blink Press Press the control button LEARN that pilots the scenario Step 2: modify the state of a scenario receiver �...
- Page 6 Modifying a scenario Etape 1 : cancelling a scenario p. 22 Etape 2 : learning the scenario p. 20 784 30 Cancelling a scenario Delete a scenario linked to the control button on the remote control � � The scenario is deleted 5 secs Press Press the control button...
- Page 7 Operation 036 60/71 784 30 > 2 s > 2 s...
- Page 8 Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Le- grand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.
