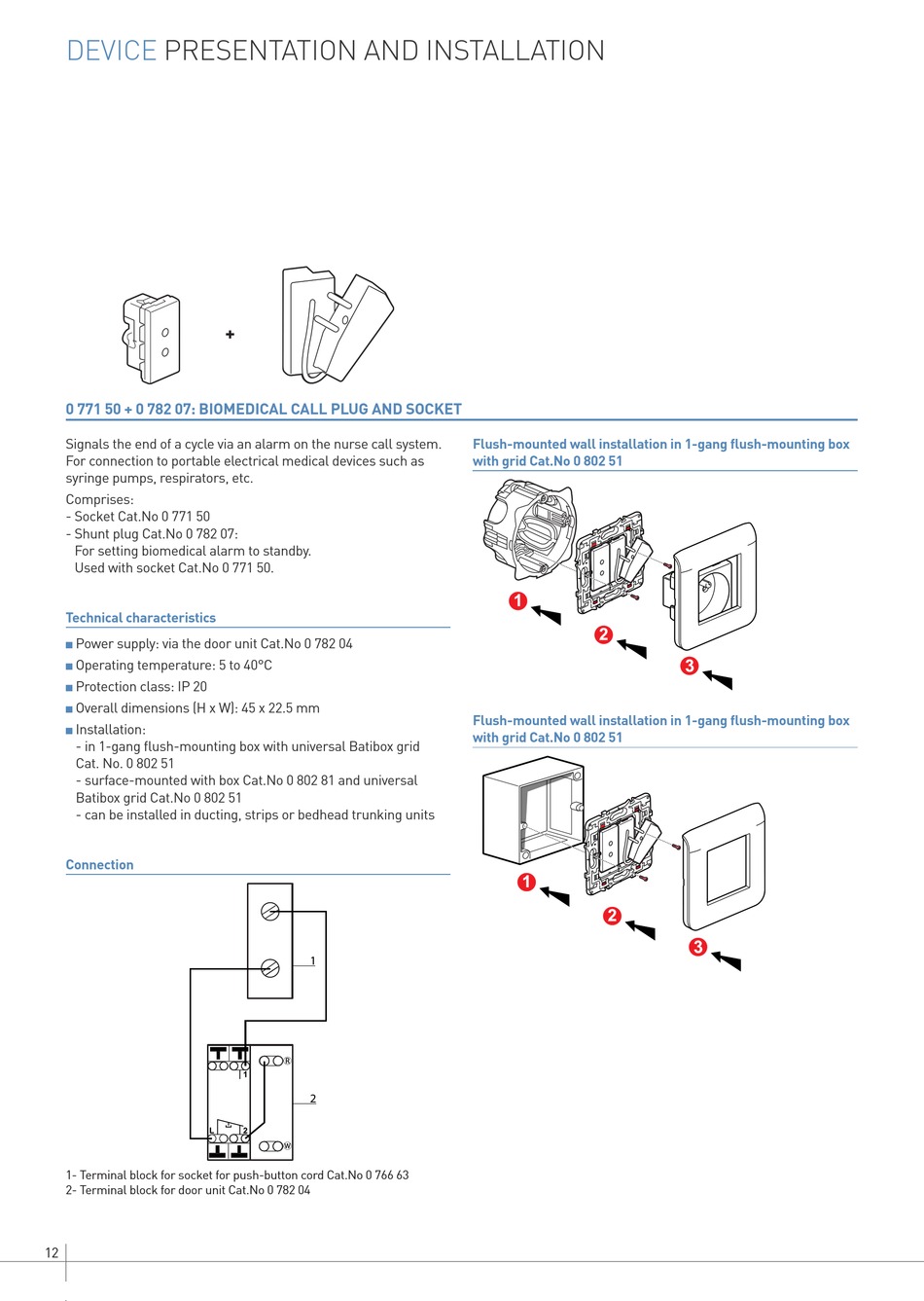

DEVICE PRESENTATION AND INSTALLATION

0 771 50 + 0 782 07: BIOMEDICAL CALL PLUG AND SOCKET

Signals the end of a cycle via an alarm on the nurse call system.
For connection to portable electrical medical devices such as
syringe pumps, respirators, etc.
Comprises:
- Socket Cat.No 0 771 50
- Shunt plug Cat.No 0 782 07:
For setting biomedical alarm to standby.
Used with socket Cat.No 0 771 50.
Technical characteristics
Power supply: via the door unit Cat.No 0 782 04
n
Operating temperature: 5 to 40°C
n
Protection class: IP 20
n
Overall dimensions (H x W): 45 x 22.5 mm
n
Installation:
n
- in 1-gang flush-mounting box with universal Batibox grid
Cat. No. 0 802 51
- surface-mounted with box Cat.No 0 802 81 and universal
Batibox grid Cat.No 0 802 51
- can be installed in ducting, strips or bedhead trunking units
Connection
1- Terminal block for socket for push-button cord Cat.No 0 766 63
2- Terminal block for door unit Cat.No 0 782 04
12
+
1
R
2
W
Flush-mounted wall installation in 1-gang flush-mounting box
with grid Cat.No 0 802 51
Flush-mounted wall installation in 1-gang flush-mounting box
with grid Cat.No 0 802 51
