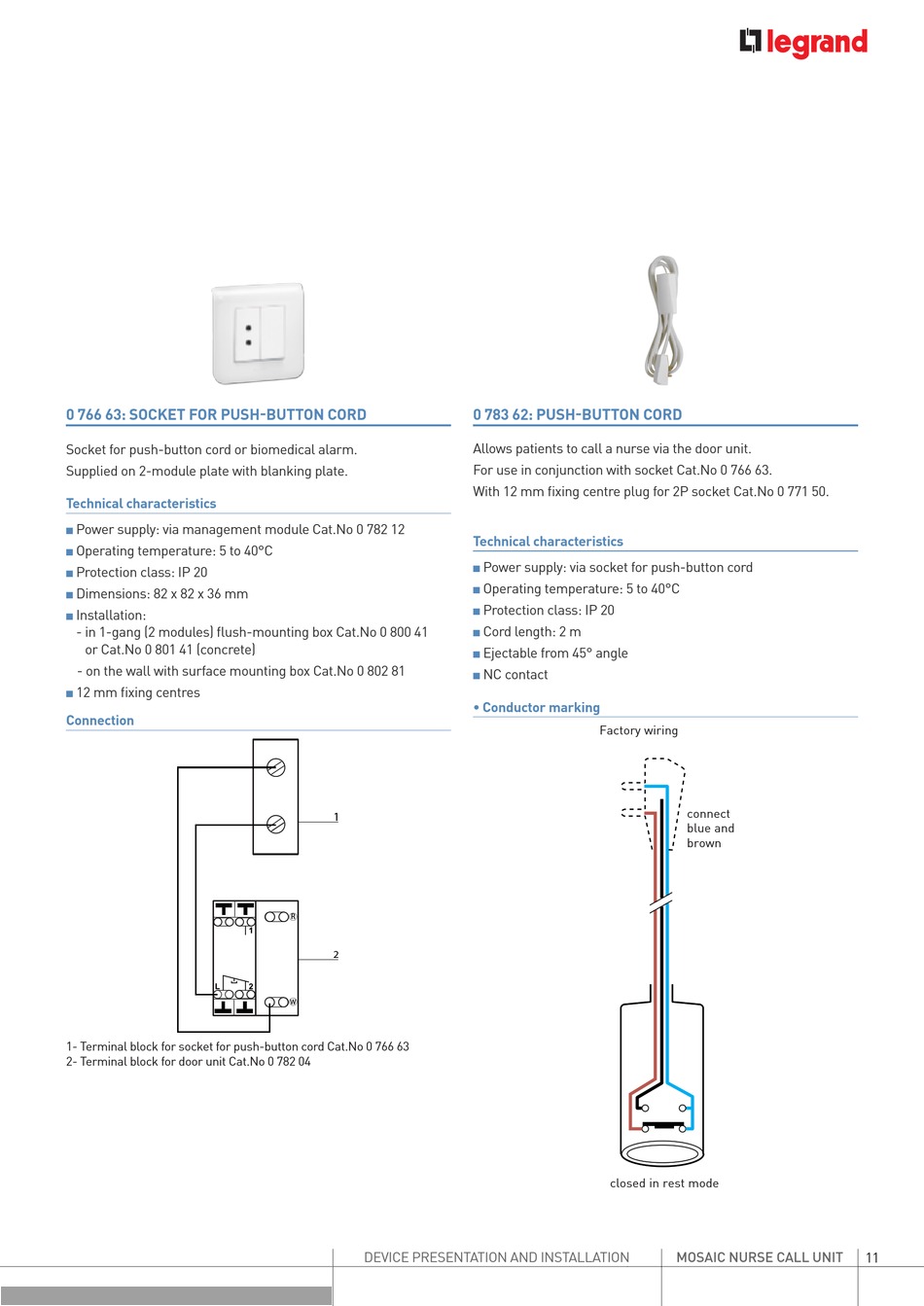

0 766 63: SOCKET FOR PUSH-BUTTON CORD

Socket for push-button cord or biomedical alarm.
Supplied on 2-module plate with blanking plate.
Technical characteristics
Power supply: via management module Cat.No 0 782 12
n
Operating temperature: 5 to 40°C
n
Protection class: IP 20
n
Dimensions: 82 x 82 x 36 mm
n
Installation:
n
- in 1-gang (2 modules) flush-mounting box Cat.No 0 800 41
or Cat.No 0 801 41 (concrete)
- on the wall with surface mounting box Cat.No 0 802 81
12 mm fixing centres
n
Connection
1- Terminal block for socket for push-button cord Cat.No 0 766 63
2- Terminal block for door unit Cat.No 0 782 04
1
R
2
W
DEVICE PRESENTATION AND INSTALLATION
0 783 62: PUSH-BUTTON CORD
Allows patients to call a nurse via the door unit.
For use in conjunction with socket Cat.No 0 766 63.
With 12 mm fixing centre plug for 2P socket Cat.No 0 771 50.
Technical characteristics
Power supply: via socket for push-button cord
n
Operating temperature: 5 to 40°C
n
Protection class: IP 20
n
Cord length: 2 m
n
Ejectable from 45° angle
n
NC contact
n
• Conductor marking
Factory wiring
closed in rest mode
connect
blue and
brown
