DESCRIPTION OF THE SYSTEM ARCHITECTURE

Fundamental rules to follow when installing the Mosaic nurse call system
Patient call system products are associated with personal safety. They should therefore be installed by a qualified electrician, in strict
accordance with the conditions of installation and the operating instructions.
A single protection device should be installed for the entire nurse call system.
To ensure continuous operation during a mains failure, connect to an uninterruptible supply (generator and/or inverter). If there is a
mains failure longer than 1 s, all calls prior to the outage may be lost.
Note: The Mosaic nurse call system is recommended for installations with 1 to 72 directions*.
* Direction: room from which the calls originate

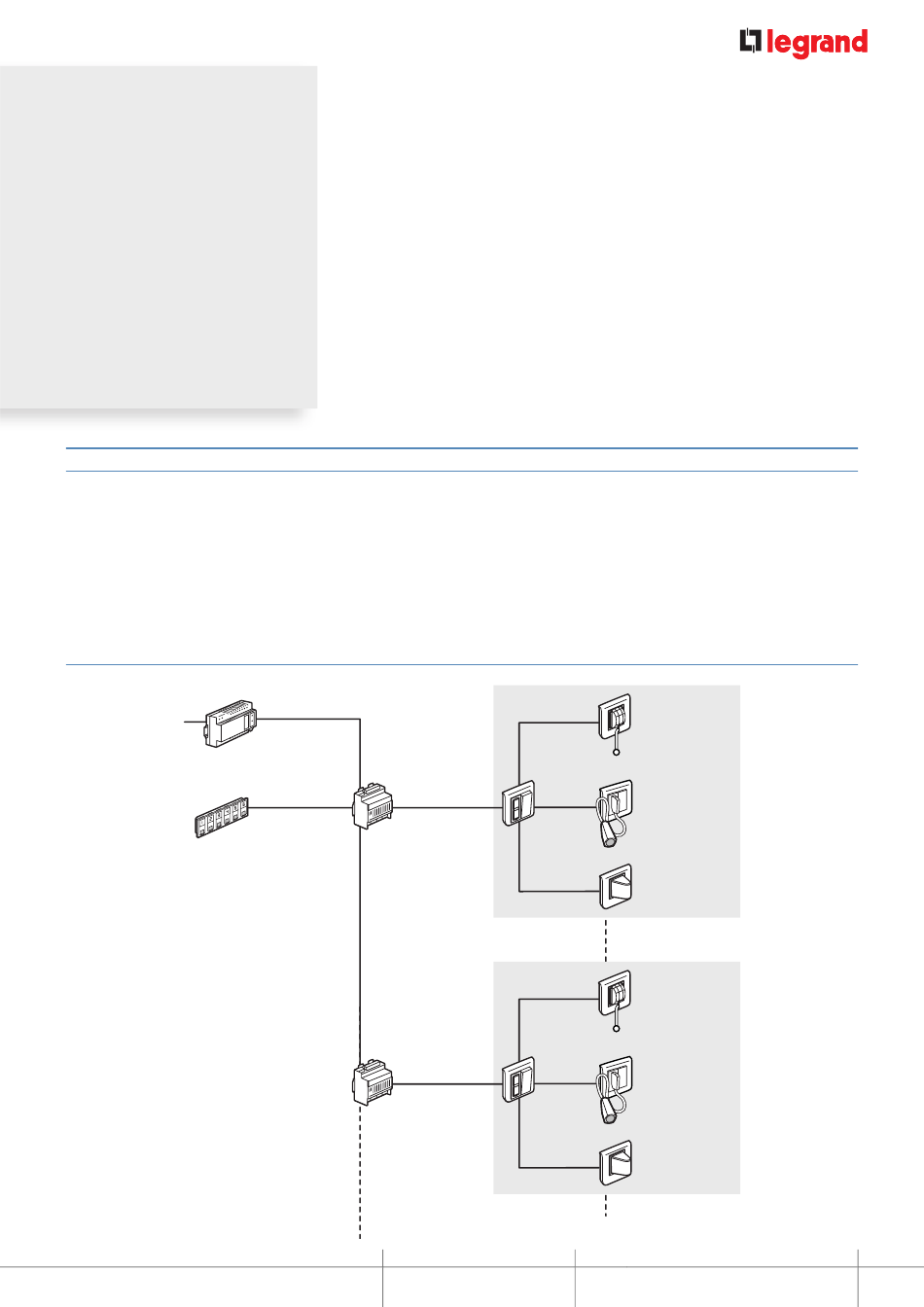

Wiring diagram
230 V±
6-direction display unit
Cat. No. 0 766 60
2 x 1.5 mm
2
Power supply
Cat. No. 0 782 89
6 x 0.6 mm pairs
2 x 0.6 mm pairs
per direction
for 3 directions
Management module
Cat. No. 0 782 12
2 x 0.6 mm pairs
per direction
Management module
Cat. No. 0 782 12
MOSAIC NURSE CALL UNIT
Room 1
Bathroom call unit
2 x 0.6 mm pairs
Cat. No. 0 766 64
Socket for
push-button cord
1 x 0.6 mm pair
Cat. No. 0 766 63
Door unit
Cat. No. 0 782 04
Corridor overdoor
light unit
Cat. No. 0 766 72
2 x 0.6 mm pairs
Room 4
Bathroom call unit
2 x 0.6 mm pairs
Cat. No. 0 766 64
Socket for
push-button cord
1 x 0.6 mm pair
Cat. No. 0 766 63
Door unit
Cat. No. 0 782 04
Corridor overdoor
light unit
Cat. No. 0 766 72
2 x 0.6 mm pairs
Room 7
