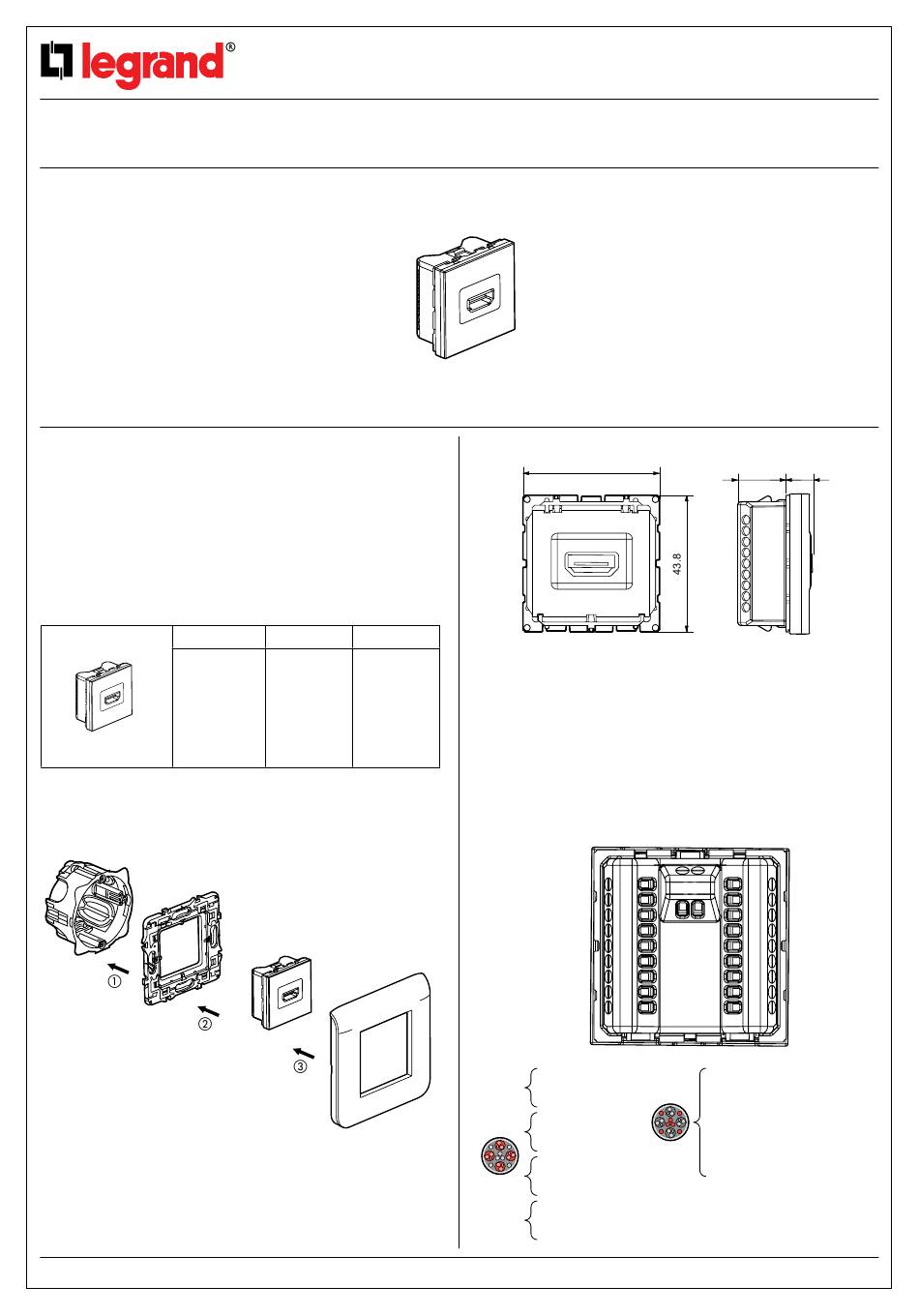

HDMI socket
1. USE
The HDMI socket is an audio-video socket for connecting
terminals such as plasma or LCD televisions, home-cinema
systems, DVD recorders,
The connection is a high-fidelity digital format. To ensure
quality output, the connection
should not exceed 10 m. For longer connections, it would be
necessary to provide an amplification system in the installation.
The connectors are type A and conform to the HDMI 1.3 standard.
2. RANGE
Description
2M white
HDMI socket
2M aluminium
HDMI socket
3. FITTING
Technical data sheet: F00788EN/02
satellite demodulators,
between the two devices
Cat. Nos. Weight (g)
0 787 68
58
60
0 792 75
Updated: 01/10/2012
87045 LIMOGES Cedex France
Telephone: (+33) 05 55 06 87 87 - Fax: (+33) 05 55 06 88 88
Catalogue number(s): 0 787 68
4. OVERALL DIMENSIONS
43.8
etc.
5. CONNECTION
Wide terminal block which accommodates conductors 1 mm
Supplied in a bag containing:
- crimping ferrules for conductors < 0.5 mm
- thermoformable sheaths
Cable bending radius: 35 mm
Max. cable length: 10 m (for longer distances, an HDMI amplifier is
recommended)
1 - TMDS Data 2+
2 - TMDS Data 2
3 - TMDS Data 2-
4 - TMDS Data 1+
5 - TMDS Data 1
6 - TMDS Data 1-
7 - TMDS Data 0+
8 - TMDS Data 0
9 - TMDS Data 0-
10 - TMDS Clock+
11 - TMDS Clock
12 - TMDS Clock-
15.4 8.9
2
10
1
19 20
11
2
12
3
4 13
5 14
6 15
7 16
8 17
9 18
13 - CEC
14 -
15 - SCL
16 - SDA
17 - GND
18 - + 5v
19 - HPD
20 - Braid (GND)
